Parts Catalog

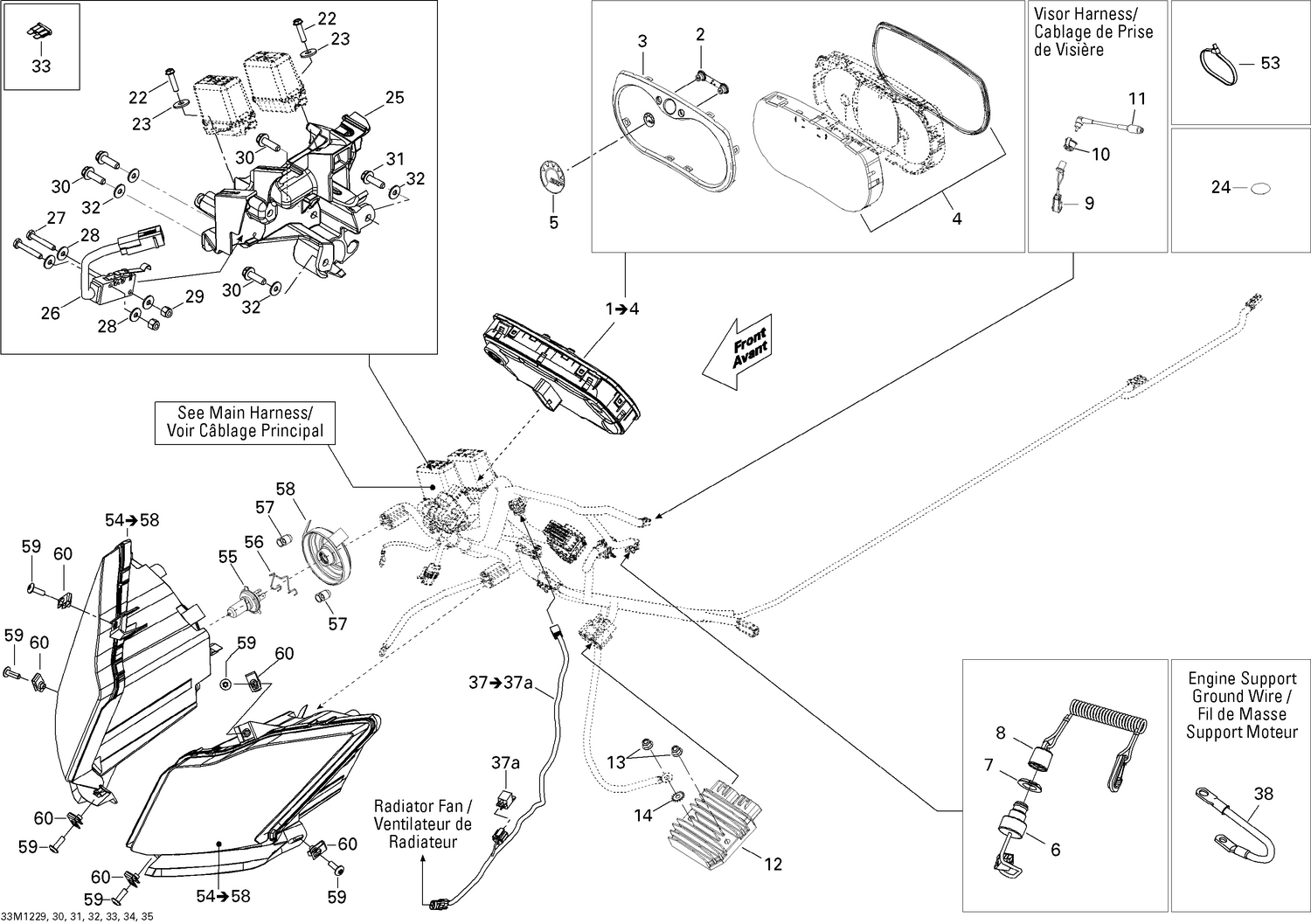

10- Electrical System

Parts (42)

Ref	Part Number	Description
2	Not	Available As Spare Part - Speedometer Button
3	Not	Available As Spare Part - Gauge Ring
4	Not	Available As Spare Part - Lens
5	516006224	BRP Logo 20MM x 2MM This part replaces 219902677.
6	515177249	DESS Switch
7	278002963	Safety Nut (DESS Switch) This part replaces 278000508.
8	515178284	DESS This part replaces 515177057.
9	XXX	Not Available As Spare Parts
10	XXX	Not Available As Spare Parts
11	XXX	Not Available As Spare Parts
12	710001103	Voltage Regulator
13	233261414	Hex. Flange Elastic Nut M6 x 1.0
14	234461608	External Serrated Lock Washer 6 mm
22	211000023	Hex. Screw 10-14 X 7/8”
23	234062600	Flat Washer M6, Stainless
24	518325560	Adhesive Patch
25	515176866	PLATE - Call your local BRP dealership
26	515176881	SWITCH ASS'Y - Call your local BRP dealership
27	207132044	Hex Screw M3 X 20
28	234032600	Flat Washer M3, Stainless
29	232531423	Elastic Stop Nut M3
30	210262040	Hex. Flange Screw M6 X 20
31	210262550	Hex. Flange Forming Screw M6 X 25 This part replaces 210262580.
32	250200039	Flat Washer
33	710000742	Little Fuse, 5 Amperes
33	710000744	Little Fuse, 10 Amperes
33	710000745	Little Fuse, 15 Ampere
33	710000746	Little Fuse, 20 Amperes
33	710000747	Little Fuse, 30 Amperes
37	515177646	Fan Harness This part replaces 515177105.
37a	710010053	Relay This part replaces 515177041.
38	515177014	Ground Wire
53	293750001	Tie Wrap 94 mm
53	293750002	Tie Wrap 142 mm
53	293750008	Tie Wrap 368 mm
53	293750009	Tie-Rap 173 mm
53	414115200	Tie-Rap 180 mm
55	515176274	Halogen Bulb, 60/55 W, 12 V ( H4 )
56	515176493	BULB HOLDER - Call your local BRP dealership
57	515176498	Cap
58	219800280	Rubber Cap Protector This part replaces 515176499.
59	250000722	Torx Screw M6 X 20 This part replaces 250000128.
