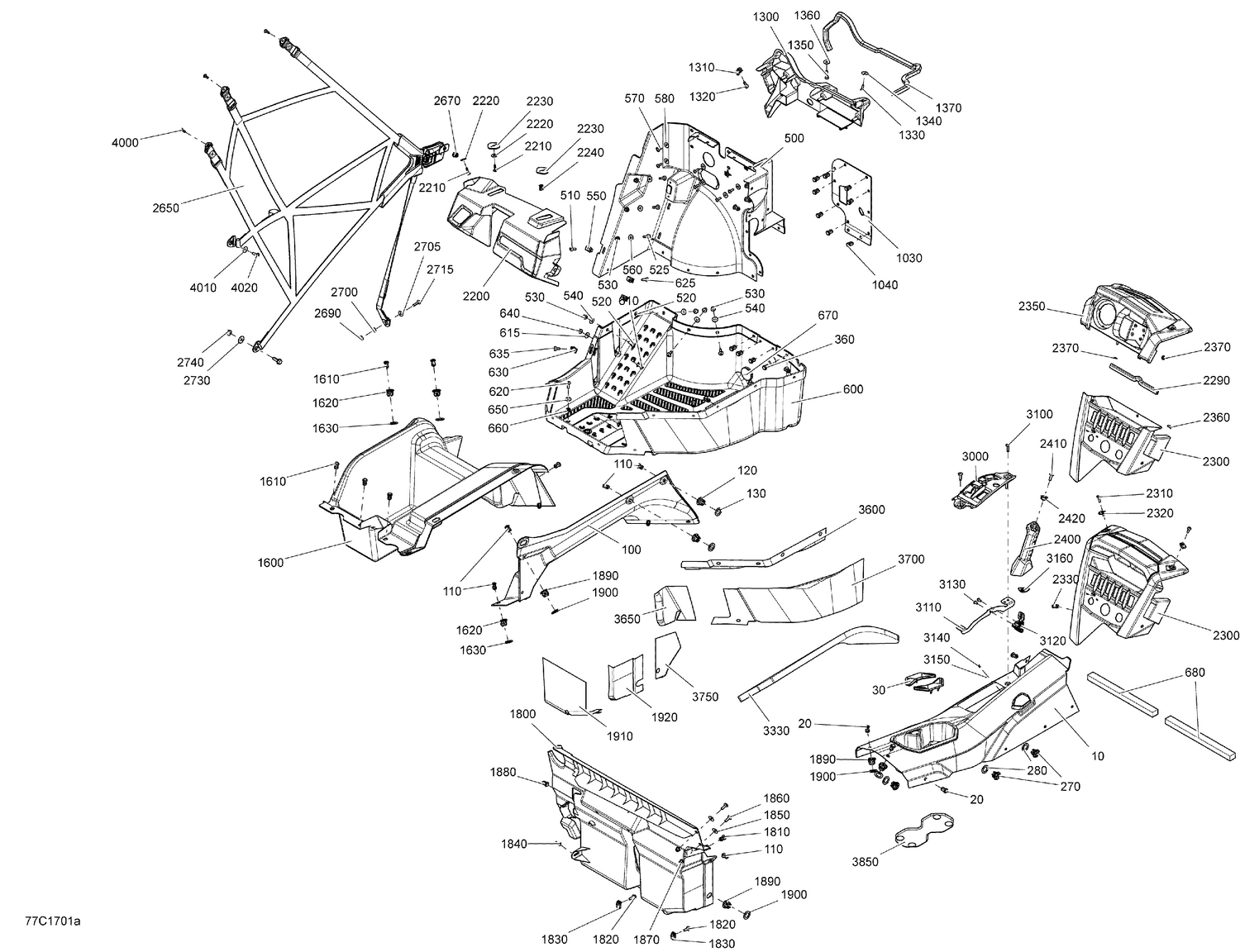

09- Cab Interior - Commander - LH Side with Console
Parts (83)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 30 | 707900036 | Cup Retainer |
| 100 | 707900001 | LH Side Console |
| 110 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 120 | 707900133 | Insert |
| 130 | 503189273 | Washer |
| 270 | 707900133 | Insert |
| 280 | 503189273 | Washer |
| 360 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 500 | 707900181 | LH Front Floor |
| 510 | 250000722 | Torx Screw M6 X 20 |
| 520 | 250000712 | Torx Screw M6 X 20 |
| 525 | 250000758 | Torx Screw M6 X 25 |
| 530 | 233261494 | Hex. Flange Elastic Nut M6 |
| 540 | 234062670 | Stainless Steel Flat Washer |
| 550 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 560 | 234062670 | Stainless Steel Flat Washer |
| 570 | 250000720 | Torx Screw K50 X 16 |
| 580 | 234062410 | Flat Washer 6 mm |
| 600 | 707900022 | LH Lower Floor |
| 610 | 250000712 | Torx Screw M6 X 20 |
| 615 | 234062670 | Stainless Steel Flat Washer |
| 620 | 250000722 | Torx Screw M6 X 20 |
| 625 | 250000807 | Torx Truss Screw M6 X 25 |
| 630 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 635 | 250000722 | Torx Screw M6 X 20 |
| 640 | 233261494 | Hex. Flange Elastic Nut M6 |
| 650 | 234062670 | Stainless Steel Flat Washer |
| 660 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 670 | 293250242 | Rubber Cover |
| 680 | 293250318 | STRIP_WEATHER SELF ADHESIVE - Call your local BRP dealership |
| 1040 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 1300 | 707900029 | SUPPORT_PANEL LH - Call your local BRP dealership |
| 1310 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 1320 | 250000722 | Torx Screw M6 X 20 |
| 1330 | 250000720 | Torx Screw K50 X 16 |
| 1340 | 224060201 | Flat Washer |
| 1350 | 207162544 | Hex. Screw M6 X 25 |
| 1360 | 224061201 | Flat Washer |
| 1370 | 219704365 | Was 293200017 Neoprene Seal |
| 1600 | 715002356 | LH UNDER SEAT PLATE KIT - Call your local BRP dealership |
| 1610 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 1620 | 707900133 | Insert |
| 1630 | 503189273 | Washer |
| 1810 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 1820 | 207662034 | Hex. Flange Screw M6 X 20 |
| 1830 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 1840 | 250000720 | Torx Screw K50 X 16 |
| 1850 | 250200040 | Flat Washer |
| 1860 | 250000712 | Torx Screw M6 X 20 |
| 1870 | 233261494 | Hex. Flange Elastic Nut M6 |
| 1880 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 1890 | 707900133 | Insert |
| 1900 | 503189273 | Washer |
| 1910 | 707900182 | Heat Shield |
| 1920 | 707900183 | Heat Shield |
| 2200 | 715001250 | Dashboard Ass'y |
| 2210 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 2220 | 234062670 | Stainless Steel Flat Washer |
| 2230 | 705003841 | Support Plate |
| 2240 | 517302785 | Edge Clip |
| 2310 | 250000724 | Torx Screw M5 X 20 |
| 2320 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 2330 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 2400 | 707900011 | Passenger Handle |
| 2410 | 250000722 | Torx Screw M6 X 20 |
| 2420 | 707900048 | Connector Tube |
| 2670 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2690 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 2700 | 234062410 | Flat Washer 6 mm |
| 2705 | 234062670 | Stainless Steel Flat Washer |
| 2715 | 250000758 | Torx Screw M6 X 25 |
| 2730 | 234082410 | Flat Washer 8 mm |
| 2740 | 233281414 | Hex. Flange Elastic Nut M8 |
| 3100 | 250000728 | Torx Screw M6 X 25 |
| 3330 | 707900621 | LH Lower Lateral Console Foam This part replaces 707900044. |
| 3600 | 707900149 | Heat Sheet |
| 3650 | 707900150 | Heat Sheet |
| 3700 | 707900151 | Heat Sheet |
| 3750 | 707900146 | Heat Sheet |
| 3850 | 707900145 | Heat Sheet |
| 4000 | 250000742 | Torx Screw M5 X 14 |
| 4010 | 250200040 | Flat Washer |
