Home / BRP / STERN DRIVE / 1993 / 7.40 / 744CPEJVB 1993 / EXHAUST & COOLING

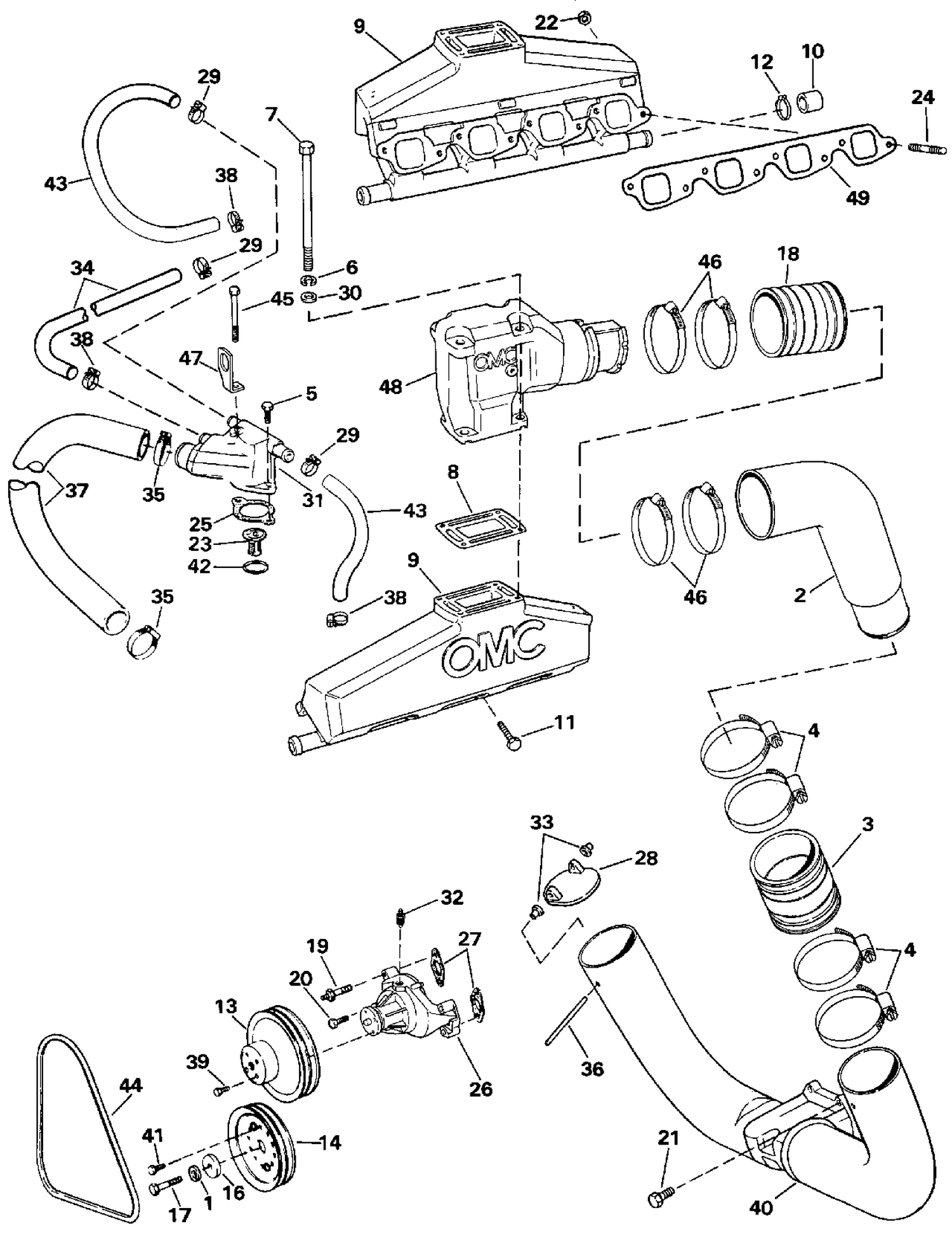

EXHAUST & COOLING

EXHAUST & COOLING

Parts (45)

RefPart NumberDescription
1 3853353 LOCK WASHER, Pulley This part replaces 0914852.
2 3853237 EXHAUST PIPE, Upper This part replaces 0914463.
3 3852742 HOSE, Exhaust pipe This part replaces 0913592.
4 3852604 CLAMP, Exhaust This part replaces 0912667.
5 3853401 SCREW, Housing to manifold This part replaces 0915010.
6 0120177 L'WASHER, Alternator to brkt
7 3852830 HUB,Water pump pulley This part replaces 0913782.
8 0913783 GASKET, Elbow
9 3861459 Manifold This part replaces 0914044.
10 3852476 CAP, Manifold This part replaces 0909829.
11 3853155 SCREW, Manifold to engine This part replaces 0914350.
12 0912627 CLAMP
13 0384104 PULLEY ASSEMBLY
14 3853467 PULLEY, Crankshaft This part replaces 0915180.
16 3853354 WASHER, Torsional damper This part replaces 0914853.
17 3853502 BOLT, Torsional damper This part replaces 0915315.
18 3852696 HOSE, High rise to elbow This part replaces 0913405.
19 3852507 STUD, Bracket to water pump This part replaces 0910440.
20 3854653 BOLT, Intake manifold, short This part replaces 0915706.
21 3855472 SCREW, Pipe to gimbal This part replaces 0913883.
22 3853404 NUT, Exhaust manifold This part replaces 0915013.
23 3853983 THERMOSTAT This part replaces 0986506.
24 3852140 STUD, Manifold to engine This part replaces 0315829.
25 0312797 GASKET, Therm. hsg. to adapter
26 3855991 WATER PUMP ASSY. This part replaces 0987447.
27 3853361 GASKET, Pump to block This part replaces 0914874.
28 0985749 EXHAUST SEAL
29 0912627 CLAMP
31 3854383 THERMOSTAT HOUSING This part replaces 0915844.
32 0171960 SENDER, Water temperature
33 3853566 BUSHING, Pin This part replaces 0915862.
34 3853243 HOSE, Cooler to thermostat This part replaces 0914470.
36 0913663 PIN EXHAUST FLAP
37 3853241 HOSE, Water pump to thermostat This part replaces 0914468.
38 0912627 CLAMP
39 3853390 SCREW, Pulley to pump This part replaces 0914996.
40 3858873 Kit This part replaces 0986117.
41 3853470 SCREW, Crankshaft pulley This part replaces 0915204.
41 3853557 SCREW, Brace to alterntr bracket This part replaces 0915790.
43 3852597 HOSE, Thermostat to manifold This part replaces 0912420.
44 3852607 BELT, Alternator This part replaces 0912728.
45 3853430 SCREW, Manifold, 5 1/4 in. This part replaces 0914998.
46 3853860 CLAMP, Exhaust hose, upper This part replaces 0985661.
47 3852649 BRACKET, Center lift This part replaces 0912921.
48 3857944 ELBOW, Exhaust This part replaces 0913784.
