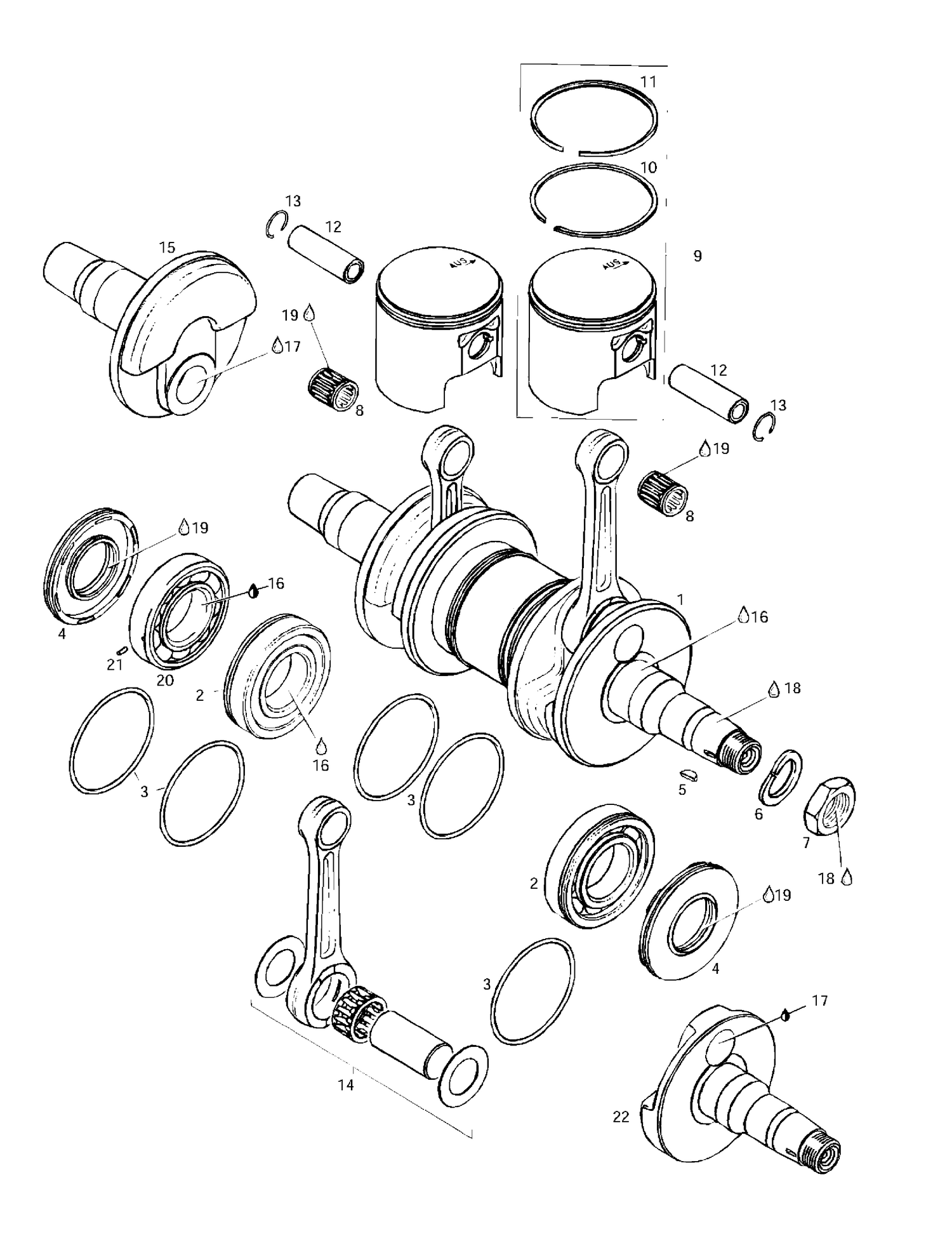

01- Crankshaft

01- Crankshaft

Parts (25)

RefPart NumberDescription
2 420832584 Bearing_Ball This part replaces 420832231.
3 293300022 O-Ring, 64 mm X 2 mm This part replaces 420250165.
4 420831952 Oil Seal This part replaces 420831950.
5 420246055 Woodruff Key
6 420945759 Lock Washer, 22 mm
7 420842239 Hex. Nut, M22 X 1.5 This part replaces 420842230.
8 420932904 Needle Bearing
10 420915850 RECTANGULAR RING 72 MM, STD - Call your local BRP dealership
11 420215235 Semi-Trapez Ring 72.00 mm
12 420916185 PISTON PIN - Call your local BRP dealership
13 420945735 Piston Circlip
14 420994564 Crankshaft Repair Kit
15 420818242 Half Crankshaft PTO
16 219704461 LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
17 219703000 Sealant Loctite 648 This part replaces 293800039.
18 293800060 Loctite 243, 10 ml This part replaces 413703000.
19 413707000 Dow Corning 111, 150 g
20 420832573 Ball Bearing This part replaces 420832234.
21 420929972 Dowel Pin
420215236 Semi-Trapez Ring 72.25 mm 420215236
420215237 Semi-Trapez Ring 72.50 mm 420215237
420915851 RECTANGULAR RING 72.25 MM, 1ST - Call your local BRP dealership 420915851
420915851 Segment Rectangulaire 72.25 mm, 1er - Appelez votre concessionnaire BRP local 420915851
420915852 RECTANGULAR RING 72.5 MM, 2ND - Call your local BRP dealership 420915852
420915852 Segment Rectangulaire 72.5 mm, 2e - Appelez votre concessionnaire BRP local 420915852
