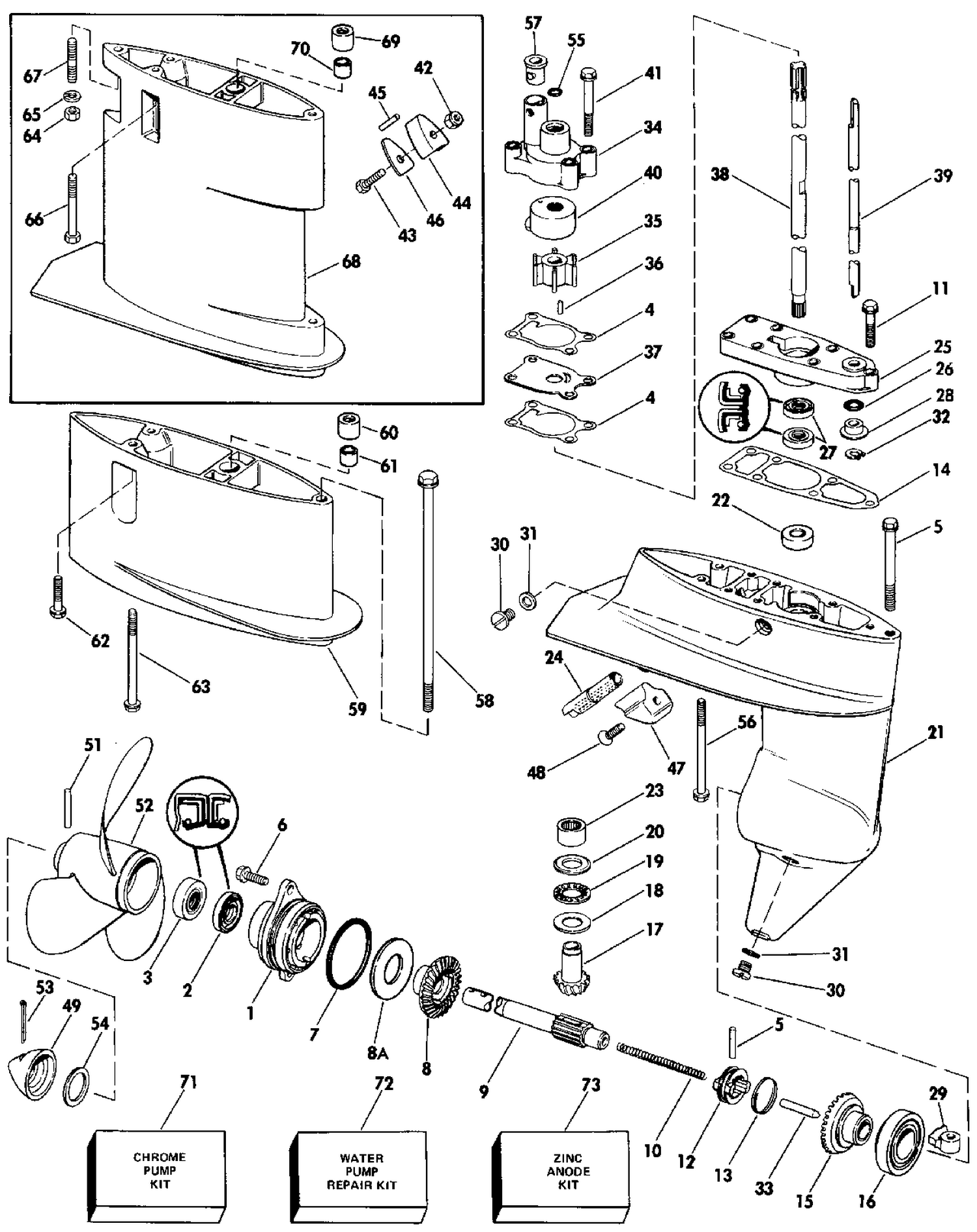

| Ref | Part Number | Description |
|---|
| 17 |
0331599 |
PINION, Driveshaft This part replaces 0329013. |
| 18 |
0322202 |
THRUST WASHER, Lower pinion bearing |
| 20 |
0322201 |
THRUS TWASHER,Upper pinion bearing |
| 21 |
0397701 |
GEARCASE, Housing assy. This part replaces 0394532. |
| 26 |
0305242 |
O RING |
| 34 |
0389577 |
IMPELLER HOUSING ASSY. |
| 35 |
0389576 |
IMPELLER ASSY |
| 36 |
0300611 |
AXE, turbine vers arbre d'entraînement |
| 37 |
0324640 |
PLAT, Impeller housing |
| 38 |
0330434 |
DRIVESHAFT, Standard This part replaces 0324634. |
| 38 |
0330435 |
DRIVESHAFT, Long This part replaces 0324635. |
| 38 |
0330436 |
DRIVESHAFT This part replaces 0327493. |
| 39 |
0324620 |
SHIFT ROD, Lower, std (except srl) |
| 39 |
0324621 |
SHIFT ROD, Long |
| 39 |
0327492 |
SHIFT ROD |
| 44 |
0327501 |
EXHAUST PLUG |
| 45 |
0327503 |
DRAIN TUBE |
| 46 |
0327505 |
PLATE, Exhaust plub (srl only) |
| 47 |
0432397 |
ANODE KIT This part replaces 0324636. |
| 48 |
0324579 |
SCREW |
| 49 |
0324694 |
CAP, Propeller shaft |
| 50 |
0342540 |
SCREW, Exhaust housing to ext. This part replaces 0316440. |
| 51 |
0324690 |
DRIVE PIN |
| 52 |
0390237 |
PROPELLER |
| 52 |
0392183 |
PROPELLER - 9 1/4 X 6 1/2 |
| 53 |
0305296 |
COTTER PIN |
| 54 |
0324689 |
SPACER |
| 66 |
0342540 |
SCREW, Exhaust housing to ext. This part replaces 0316440. |
| 67 |
0552913 |
STUD, Gearcase to exh. hsg. |
| 68 |
0394144 |
EXTENSION ASSY. |
| 68 |
0396032 |
EXTENSION ASSY. This part replaces 0392185. |
| 71 |
0390772 |
CHROME PUMP KIT |
| 72 |
0396644 |
WATER PUMP REPAIR KIT This part replaces 0389844. |
| 0390341 |
0395101 |
EXTENSION KIT ASSY This part replaces 0390341. |
| 0393745 |
0393745 |
GEARCASE ASSY., |
| 0393848 |
0393848 |
GEARCASE ASSY., Std |
| 0393849 |
0393849 |
GEARCASE ASSY., Long |
| 0394147 |
0394147 |
GEARCASE ASSY., |
