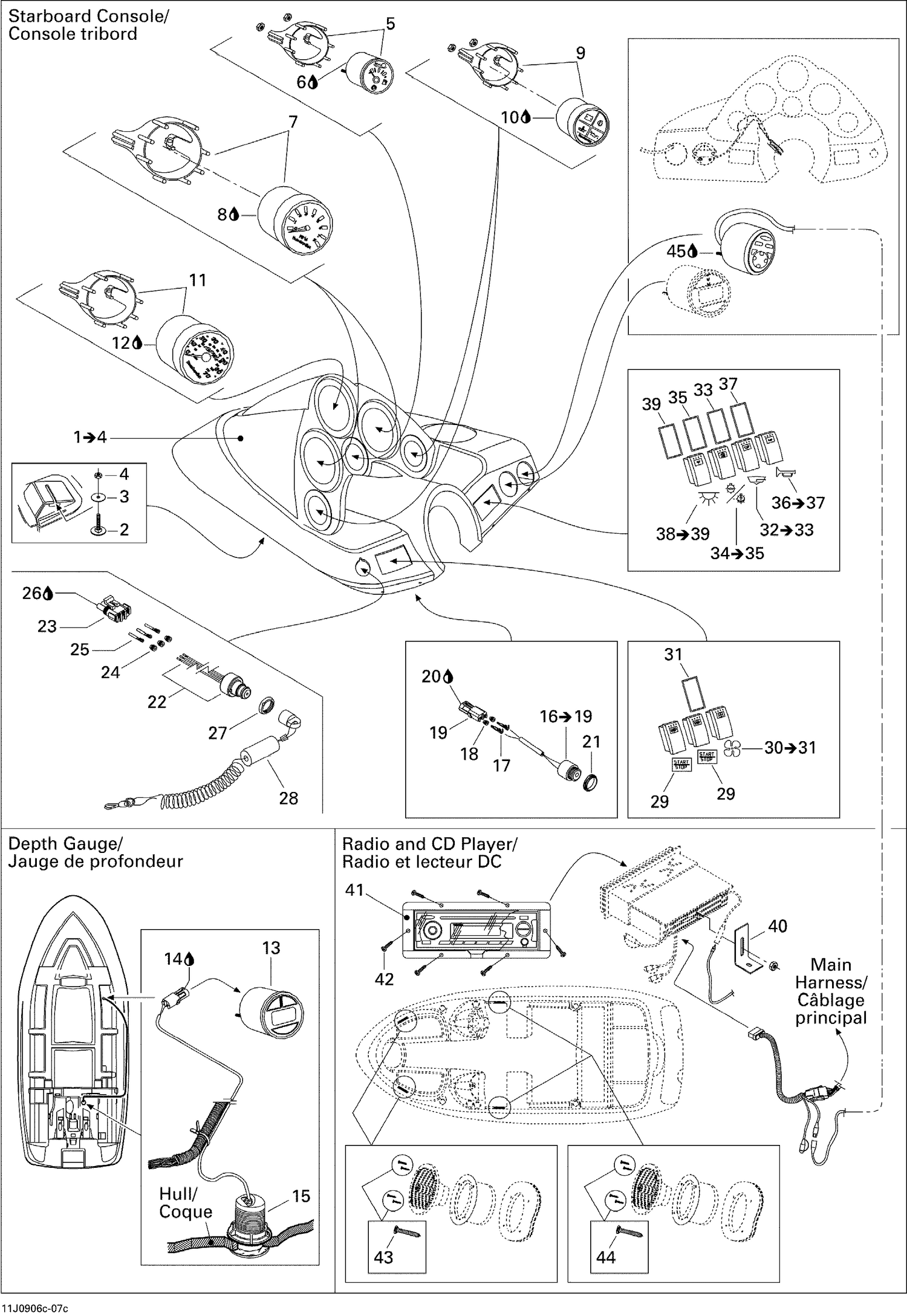

10- Electrical Accessories 3
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 204000130 | Elevator Bolt |
| 3 | 204100089 | FLAT WASHER 9/32? - Call your local BRP dealership |
| 4 | 211100026 | HEX. NUT 1/4 - Call your local BRP dealership |
| 5 | 204471152 | Fuel Gauge |
| 6 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 7 | 204471155 | TACHOMETER GAUGE - Call your local BRP dealership |
| 8 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 9 | 204471156 | Engine Warning Gauge |
| 10 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 11 | 204471153 | SPEEDOMETER GAUGE - Call your local BRP dealership |
| 12 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 13 | 204471157 | Depth Gauge |
| 14 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 15 | 204471292 | Depth Sensor |
| 17 | 278000222 | Male Terminal |
| 18 | 278000218 | Wire Seal |
| 19 | 278000217 | Female Housing, 2 Circuits |
| 20 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 21 | 278000707 | Buzzer Nut |
| 22 | 278002773 | Safety Switch This part replaces 278001734. |
| 23 | 278000273 | Male Housing, 3 Circuits |
| 24 | 278000218 | Wire Seal |
| 25 | 278000223 | Female Terminal |
| 26 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 27 | 278002963 | Safety Nut (DESS Switch) This part replaces 278000508. |
| 28 | 204471206 | Safety Lanyard |
| 29 | 204471178 | START/STOP SWITCH - Call your local BRP dealership |
| 31 | 204470132 | Gasket |
| 33 | 204470132 | Gasket |
| 35 | 204470132 | Gasket |
| 37 | 204470132 | Gasket |
| 39 | 204470132 | Gasket |
| 41 | 204471304 | RADIO CD PLAYER COVER - Call your local BRP dealership |
| 42 | 209643860 | TAPPING PHILLIPS SCREW 4.2 X 38 - Call your local BRP dealership |
| 43 | 209641360 | TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 44 | 209641960 | PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership |
