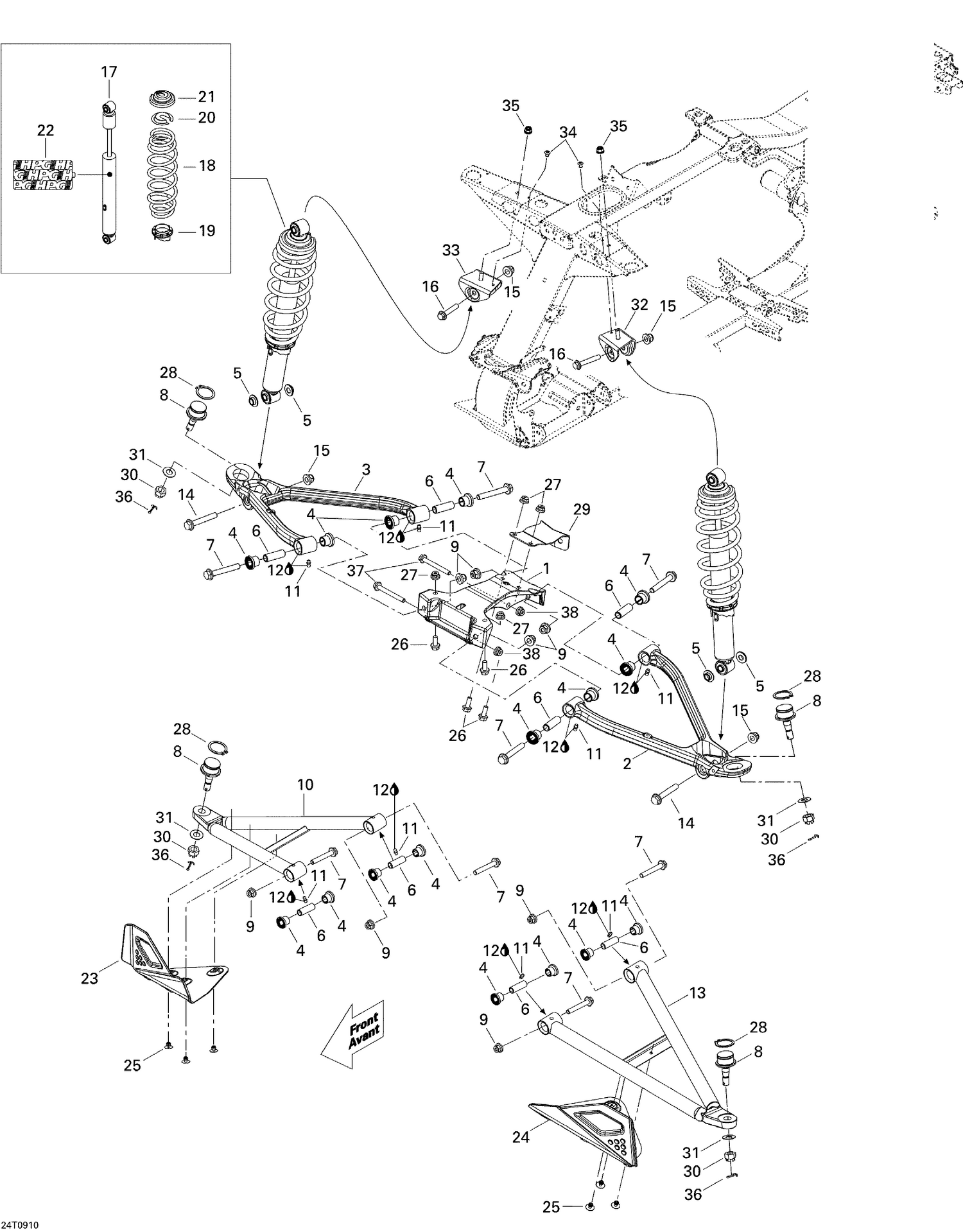

| Ref | Part Number | Description |
|---|
| 1 |
706201360 |
Upper Arm Bracket This part replaces 706200476. |
| 2 |
706200763 |
LH Upper Arm |
| 3 |
706200764 |
RH Upper Arm |
| 4 |
706200181 |
Bushing |
| 5 |
706200677 |
SPACER BUSHING - Call your local BRP dealership |
| 6 |
706201587 |
Sleeve This part replaces 706200678. |
| 7 |
207607046 |
Hex. Flange Screw M10 X 70 |
| 8 |
706200653 |
Ball Joint |
| 9 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 10 |
706201047 |
ARM_SUSPENSION RH ECOAT - Call your local BRP dealership This part replaces 706200612. |
| 11 |
408200700 |
Grease Fitting |
| 12 |
293550010 |
Synthetic Grease, 400 G |
| 13 |
706201045 |
ARM_SUSPENSION LH ECOAT - Call your local BRP dealership This part replaces 706200604. |
| 14 |
207606536 |
Hex. Flange Screw M10 X 65 This part replaces 207606546. |
| 15 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 16 |
207605544 |
Hex. Flange Screw M10 X 55 |
| 19 |
706002356 |
Adjuster Ring This part replaces 706000294. |
| 20 |
706200881 |
Spring Stopper |
| 21 |
706200785 |
Cap This part replaces 503191610. |
| 22 |
XXX |
Not Available As Spare Parts |
| 23 |
706201670 |
RH Protector This part replaces 706200616. |
| 24 |
706201669 |
LH Protector This part replaces 706200615. |
| 25 |
293150104 |
Pop Rivet 3/16" |
| 26 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 27 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 28 |
293370009 |
Circlip 32 mm |
| 29 |
706200405 |
UPPER ARM BRACKET - Call your local BRP dealership |
| 30 |
250100099 |
Nut M12 |
| 31 |
706200281 |
Hardened Washer |
| 32 |
706201039 |
LH UPPER ARM BRACKET - Call your local BRP dealership This part replaces 706200735. |
| 33 |
706200736 |
RH UPPER BRACKET - Call your local BRP dealership |
| 34 |
390402300 |
Pop Rivet 3/16" |
| 35 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 36 |
211400017 |
Cotter Pin |
| 37 |
207687044 |
Hex. Flange Screw M8 X 70 |
