| Ref | Part Number | Description |
|---|
| 1 |
0279525 |

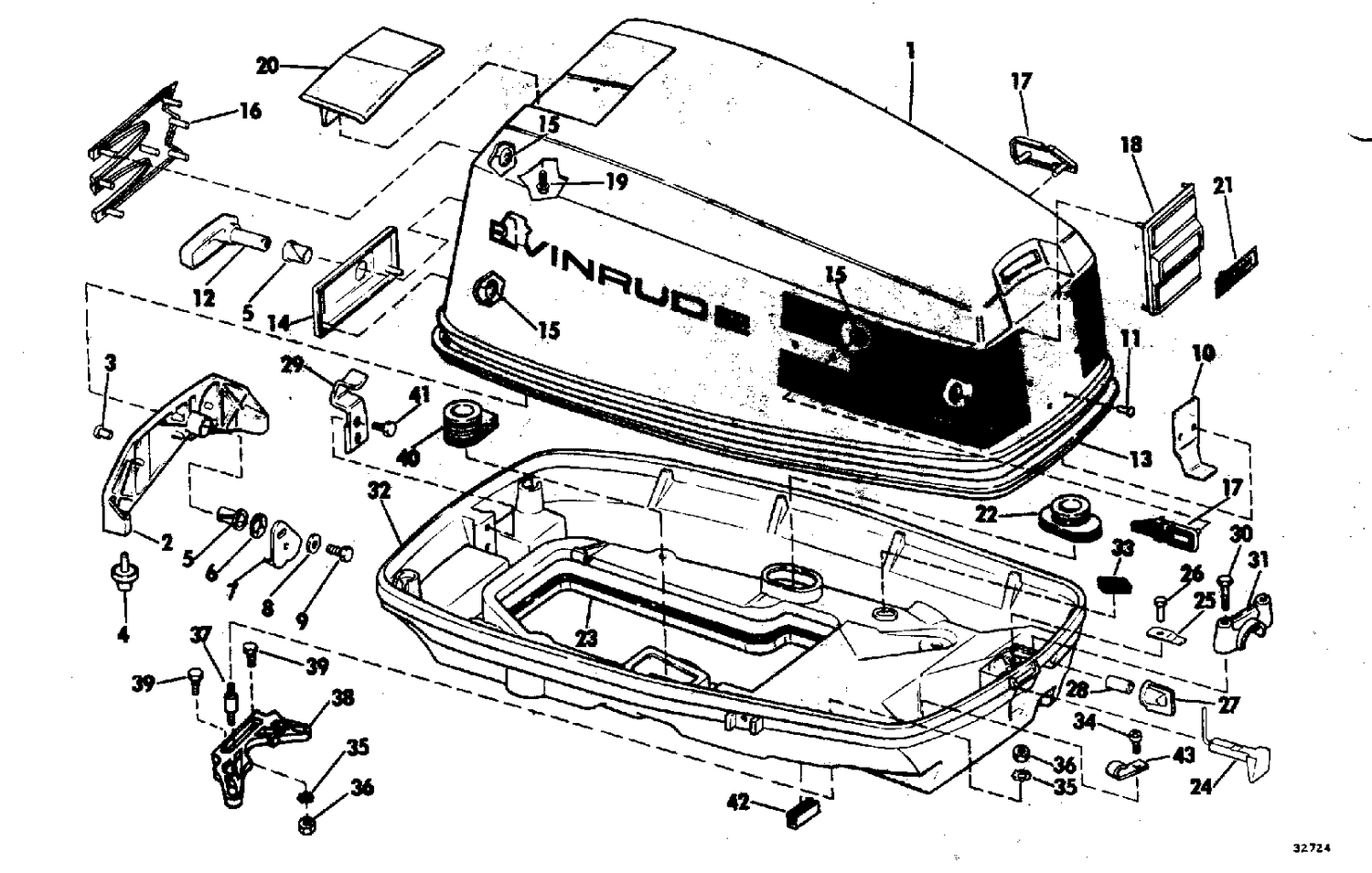

MOTOR COVER ASSY |
| 3 |
0314135 |
RIVER, Locating bracket |
| 9 |
0552062 |
SCREW, Clamp |
| 10 |
0320400 |
HOOK, Engine cover This part replaces 0316170. |
| 12 |
0279370 |
HANDLE & SHAFT ASSY |
| 14 |
0206848 |
APPLIQUE, Handle |
| 16 |
0206998 |
APPLIQUE, Rear |
| 17 |
0207008 |
APPLIQUE, 40 hp |
| 18 |
0207004 |
APPLIQ UE, Front |
| 19 |
0312299 |
VIS, serre-câble |
| 20 |
0206317 |
TILT HANDLE |
| 21 |
0207007 |
PLATE,Applique,front |
| 22 |
0304019 |
CROMMET, CONTROL SHAFT |
| 23 |
0553784 |
SEAL, Lower cover, lalrge |
| 24 |
0385060 |
CHOKE KNOB ASSY. |
| 25 |
0315135 |
DETENT, Choke knob |
| 26 |
0313117 |
SCR,Clamp,eng cable |
| 27 |
0206900 |
KNOB, Slow speed |
| 28 |
0316201 |
BUSHIGN,Slow speed shaft |
| 29 |
0323474 |
HOOK, Cover to housing This part replaces 0316069. |
| 31 |
0325972 |
COLLIER, câbles électriques This part replaces 0313786. |
| 32 |
0385696 |
MOTOR COVER, Lower |
| 33 |
0318262 |
GROMMET |
| 34 |
0311020 |
SCREW, Clamp |
| 35 |
0306799 |
L'WASHER,Bracket to hsg. |
| 37 |
0379061 |
MOUNT, Lower cover |
| 38 |
0384339 |
BRACKET, Lower cover |
| 39 |
0317581 |
SCREW, Actuator cam |
| 40 |
0306222 |
GROMMET |
| 41 |
0306487 |
SCREW |
| 42 |
0553770 |
SEAL, Lower cover, small |
| 43 |
0310441 |
CLAMP, CPS lead |
| 43 |
0317000 |
COLLIER, câble This part replaces 0318190. |
| 0279560 |
0279560 |
DECAL SET |
