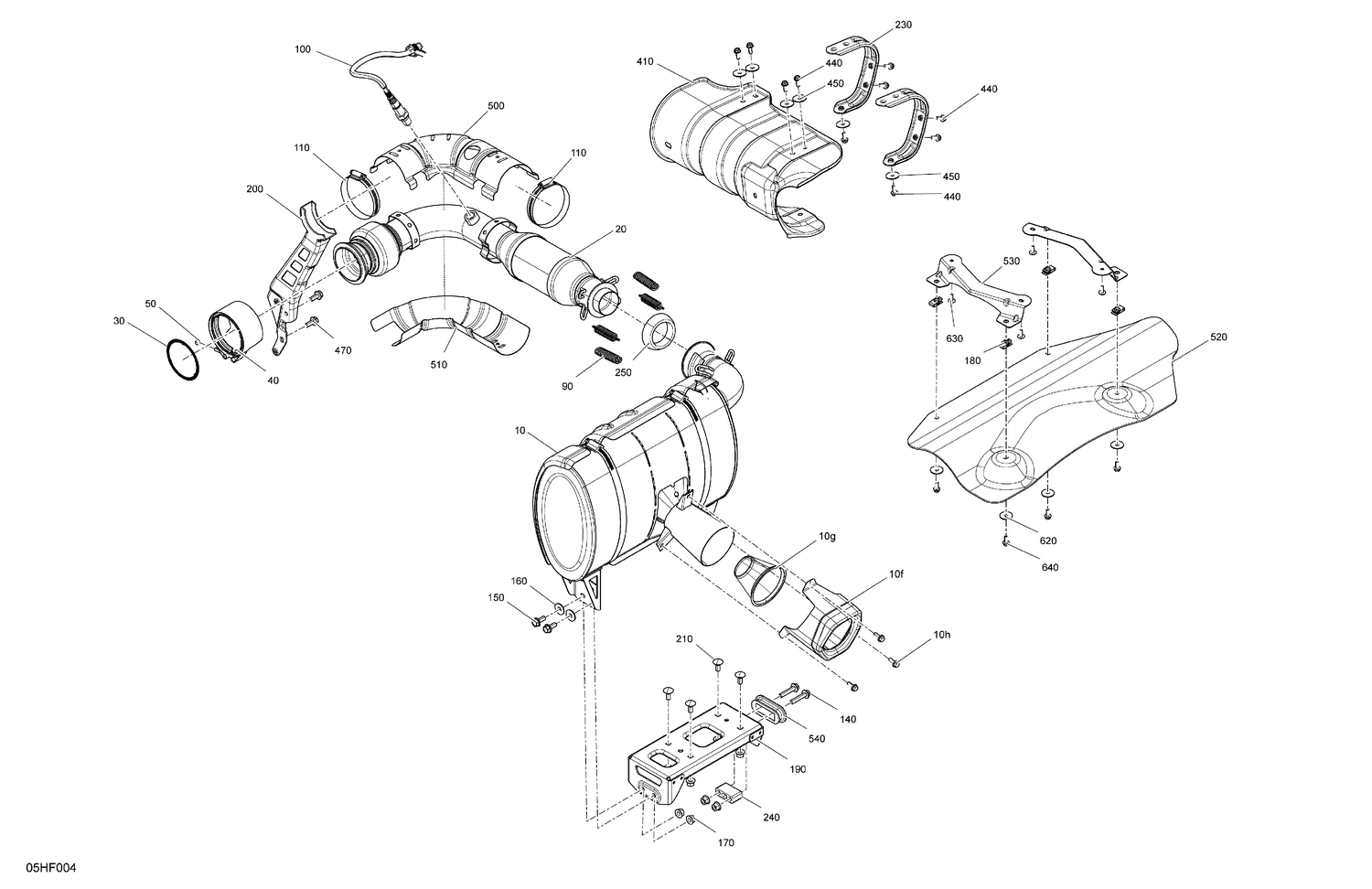

02- Engine - Exhaust
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 10f | 707602046 | Heat Shield |
| 10g | 707602087 | Spark Arrester |
| 10h | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 20 | 707603468 | Exhaust Pipe |
| 30 | 707601835 | Seal |
| 40 | 707603418 | Exhaust Clamp |
| 50 | 707602143 | Nut |
| 90 | 707601834 | Spring |
| 100 | 707600872 | Oxygen Sensor |
| 110 | 514052924 | Norma Clamp |
| 140 | 207684044 | Hex. Flange Screw M8 X 40 |
| 150 | 207682046 | Hex. Flange Screw M8 X 20 |
| 160 | 234082410 | Flat Washer 8 mm |
| 170 | 233081416 | Hex. Flange Nut M8 |
| 180 | 250100198 | Panel Nut M6 X 1.0 |
| 190 | 707603756 | Exhaust Support |
| 200 | 707602815 | Exhaust Mount |
| 210 | 207782044 | Carriage Bolt, M8 X 20 |
| 230 | 707603882 | Heat Shield Support |
| 240 | 707603214 | Muffler Stopper |
| 250 | 707601908 | Gasket |
| 410 | 707601768 | Lateral Heat Shield |
| 440 | 210261250 | Hex. Flange Screw M6 X 12 |
| 450 | 503193995 | Washer |
| 470 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 500 | 707601795 | Upper Heat Shield |
| 510 | 707601796 | Lower Heat Shield |
| 520 | 707602771 | Heat Shield |
| 530 | 707603657 | Heat Sheild Support |
| 540 | 707603488 | Vibration Damper |
| 620 | 224060251 | Washer |
| 630 | 250000959 | Screw PT Type K-50 X 16 |
