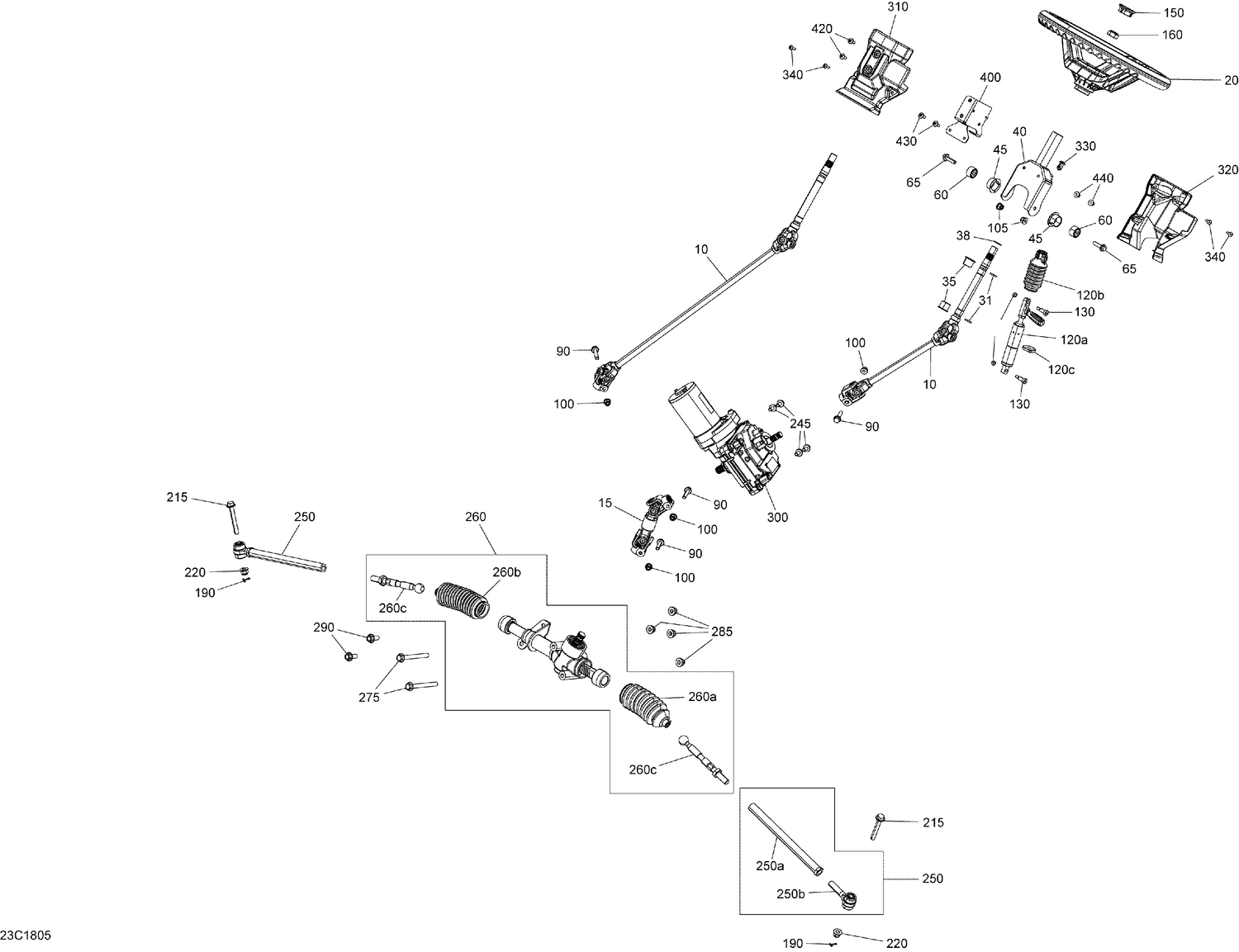

07- Steering Traxter T1B
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 709401513 | Steering Wheel |
| 31 | 293300144 | O-Ring |
| 35 | 709402725 | Steering Bushing This part replaces 709401733. |
| 38 | 293370110 | Circlip |
| 40 | 709401602 | Steering Support |
| 45 | 709401603 | Bushing |
| 60 | 709401604 | Bushing |
| 65 | 207683044 | Hex. Flange Screw M8 X 30 |
| 105 | 233281414 | Hex. Flange Elastic Nut M8 |
| 120a | 709402506 | Adjustment Cylinder This part replaces 709400656. |
| 120b | 709401232 | Boot Tube Side |
| 120c | 414115200 | Tie-Rap 180 mm |
| 130 | 250000669 | Socket Head Screw M8 X 16 |
| 140 | 232561414 | Elastic Stop Nut M6 |
| 150 | 709401514 | Steering Cap |
| 160 | 232511414 | Elastic Lock Nut M16 |
| 190 | 211400017 | Cotter Pin |
| 215 | 250000814 | Screw Hex Cap M10 X 75 |
| 220 | 233201414 | Hex. Flange Elastic Nut M10 |
| 250a | 715900238 | Steering Rod Nut |
| 250b | 709401601 | Ball Joint |
| 260a | 715900235 | Boot Kit, Pinion Side |
| 260b | 715900236 | Boot Kit, Tube Side |
| 260c | 715900238 | Steering Rod Nut |
| 275 | 230600046 | Hex Flange Screw DIN.6921 - Call your local BRP dealership |
| 285 | 233201436 | Hex. Flange Elastic Nut M10 |
| 290 | 207602546 | Hex. Flange Screw M10 X 25 |
| 310 | 709402012 | Steering Box Cover |
| 320 | 709402013 | Steering Box Cover |
| 330 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 340 | 250000720 | Torx Screw K50 X 16 |
| 400 | 709401962 | Flasher Arm Support |
| 420 | 250000721 | Torx Truss Screw M6 X 16 |
| 430 | 250000755 | Torx Screw M6 X 16 |
