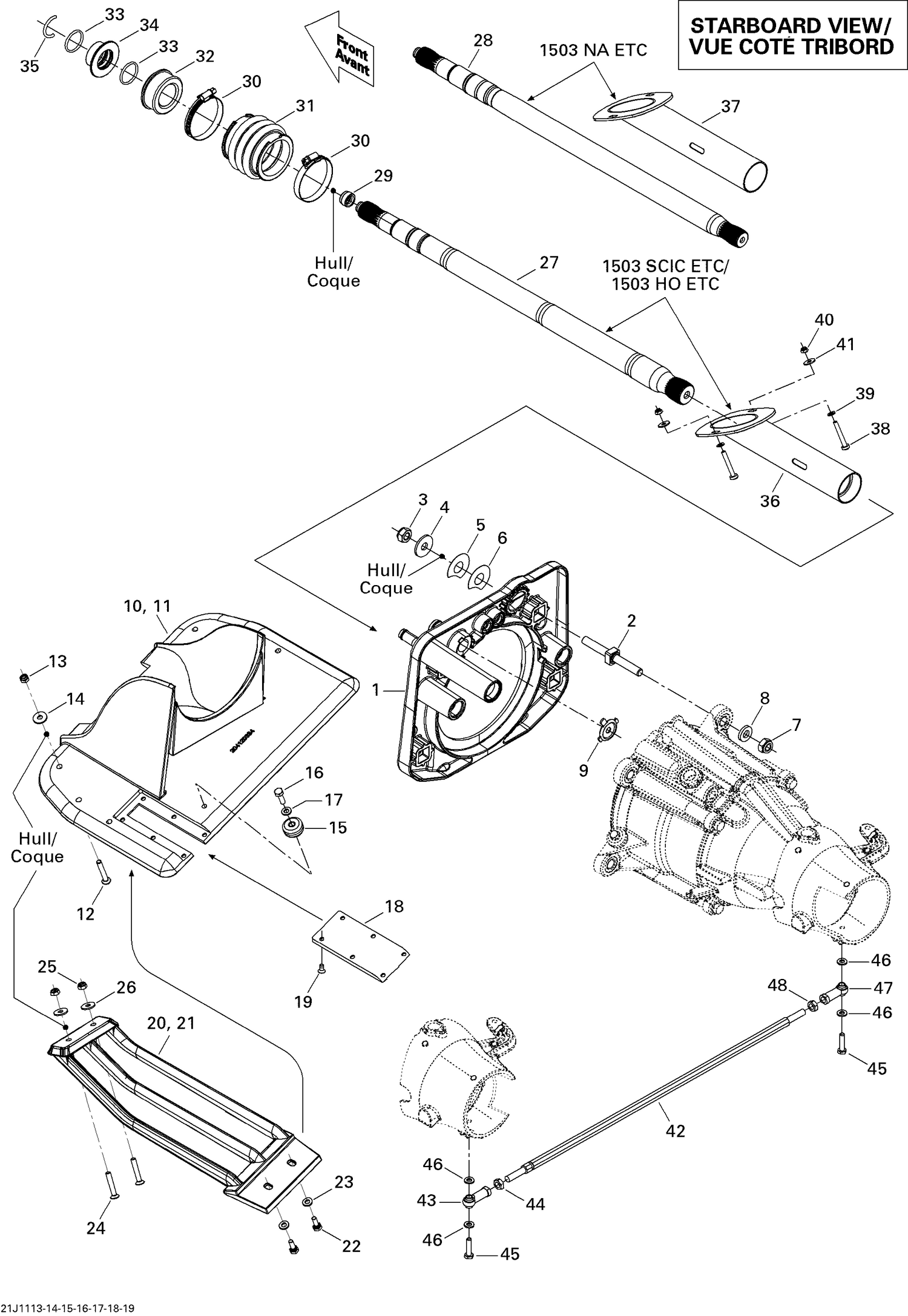

05- Propulsion
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204120333 | PUMP SUPPORT - Call your local BRP dealership |
| 2 | 250300022 | Square Stud |
| 3 | 232501200 | Elastic Stop Nut M10, Brass |
| 4 | 234002600 | Flat Washer 10 mm, Stainless |
| 5 | 272000053 | Shim 0.3 mm |
| 6 | 0460011 | NEEDS DESCRIPTION This part replaces 204120067. |
| 7 | 232501200 | Elastic Stop Nut M10, Brass |
| 8 | 211200051 | Flat Washer |
| 9 | 291004649 | Reducer This part replaces 291001887. |
| 12 | 208564060 | PHILLIPS SCREW M6 X 40 - Call your local BRP dealership |
| 13 | 232561600 | Hex. Elastic Stop Nut M6 |
| 14 | 234062600 | Flat Washer M6, Stainless |
| 15 | 271001813 | Anode Zinc This part replaces 271001487. |
| 16 | 207362060 | Hex. Screw M6 X 20, Scotch Grip |
| 17 | 234061600 | Stainless Flat Washer M6 |
| 18 | 204120341 | PLATE FILLER SENSOR - Call your local BRP dealership |
| 19 | 208551060 | PHILLIPS SCREW M5 X 10 - Call your local BRP dealership |
| 22 | 207161660 | Hex. Screw M6 X 16 |
| 23 | 234061600 | Stainless Flat Washer M6 |
| 24 | 208563560 | Phillips Screw M6 X 35 |
| 25 | 232561600 | Hex. Elastic Stop Nut M6 |
| 26 | 234062600 | Flat Washer M6, Stainless |
| 27 | 204120284 | Drive Shaft |
| 28 | XXX | Not Available As Spare Parts |
| 29 | 272000173 | Drive Shaft Plug |
| 30 | 293650077 | Norma Clamp |
| 31 | 272000183 | Bellows |
| 32 | 295501200 | Carbon Ring Kit This part replaces 272000177. |
| 33 | 293300044 | O-Ring |
| 34 | 295501200 | Carbon Ring Kit This part replaces 272000176. |
| 35 | 271001575 | C-Clip |
| 36 | 271001834 | SHAFT GUARD ASSY - Call your local BRP dealership This part replaces 271001715. |
| 37 | XXX | Not Available As Spare Parts |
| 38 | 208653560 | Phillips Screw M5 X 35 |
| 39 | 234051600 | Flat Washer M5, Stainless |
| 40 | 232551600 | Hex. Elastic Nut M5 |
| 41 | 234052600 | Flat Washer 5 mm, Stainless |
| 42 | 204120255 | LINK ROD - Call your local BRP dealership |
| 43 | 204120075 | BALL JOINT - Call your local BRP dealership |
| 44 | 211100034 | HEX. NUT 5/16-24 - Call your local BRP dealership |
| 45 | 207163060 | Hex. Screw M6 X 30 |
| 46 | 234061600 | Stainless Flat Washer M6 |
| 47 | 204120074 | BALL JOINT - Call your local BRP dealership |
