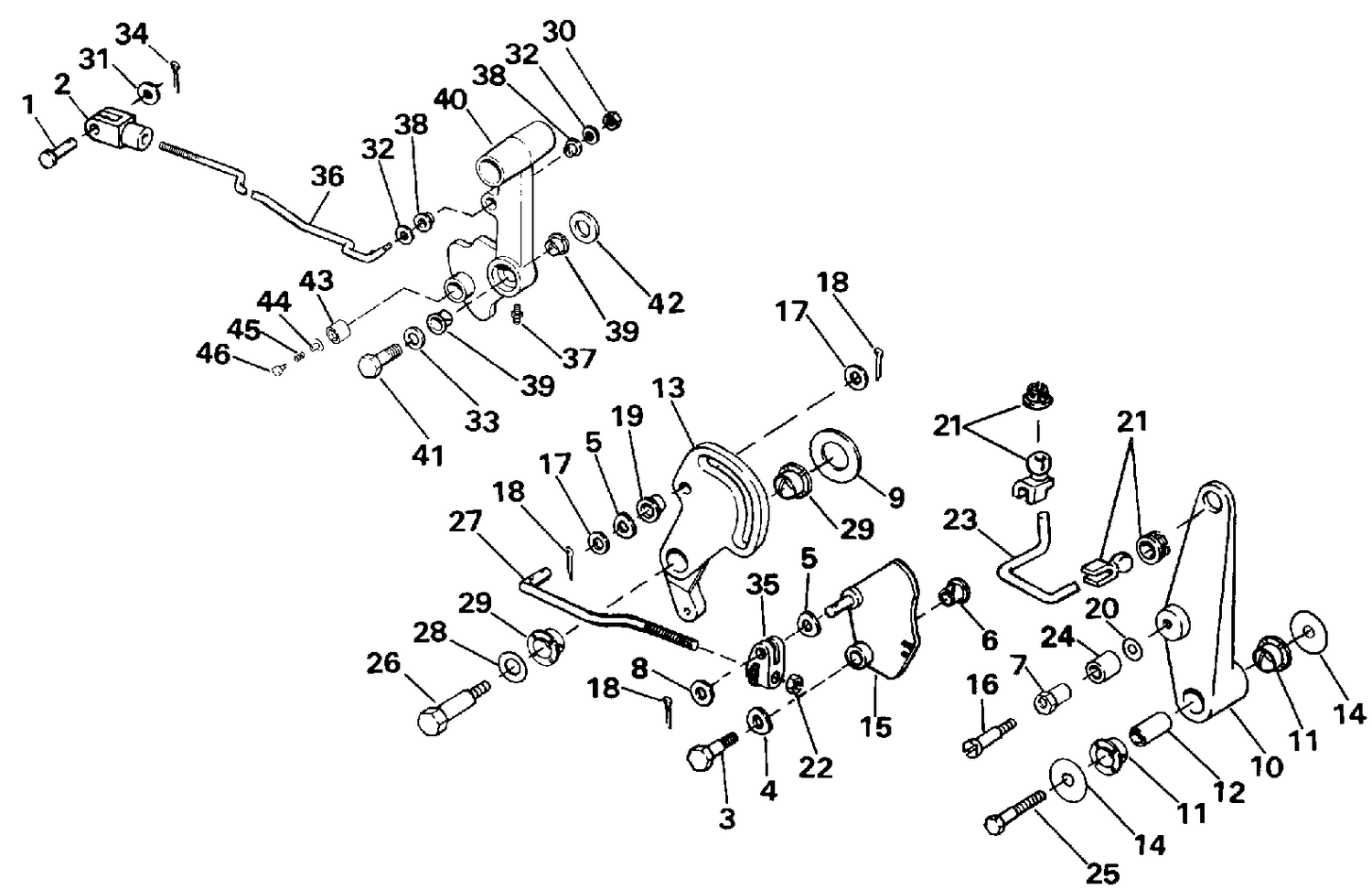

| Ref | Part Number | Description |
|---|
| 3 |
0314136 |
VIS, came de papillon |
| 4 |
0328733 |
RONDELLE ÉLASTIQUE, levier de sens de marche |
| 5 |
0328734 |
BOW WASHER |
| 7 |
0330720 |
ECCENTRIC, Cam roller |
| 9 |
0908398 |
WASHER |
| 10 |
0330716 |
LEVER, Spark advance |
| 12 |
0329679 |
SLEEVE, Advance lever |
| 13 |
0330715 |
CAM, Spark control |
| 15 |
0431707 |
CAM & PIN ASSY., Throttle |
| 16 |
0303395 |
SCREW |
| 21 |
0395448 |
BALL & SOCKET ASSY |
| 23 |
0330719 |
LINK, Spark advance |
| 24 |
0330718 |
ROLLER, Cam follower |
| 25 |
0324814 |
ECREW,Exhaust cover,1-1/2"long |
| 26 |
0206409 |
PIVOT SCREW |
| 27 |
0330717 |
ROD, Lever to cam |
| 28 |
0127386 |
RONDELLE This part replaces 0303913. |
| 33 |
0206414 |
LOCKWASHER, Pivot screw |
| 35 |
0397018 |
YOKE & THUMBWHEEL |
| 36 |
0331110 |
SHIFT ROD |
| 40 |
0436753 |
SHIFT LEVER This part replaces 0331108. |
| 41 |
0331109 |
SCREW, Lever |
| 45 |
0313584 |
SPRING |
