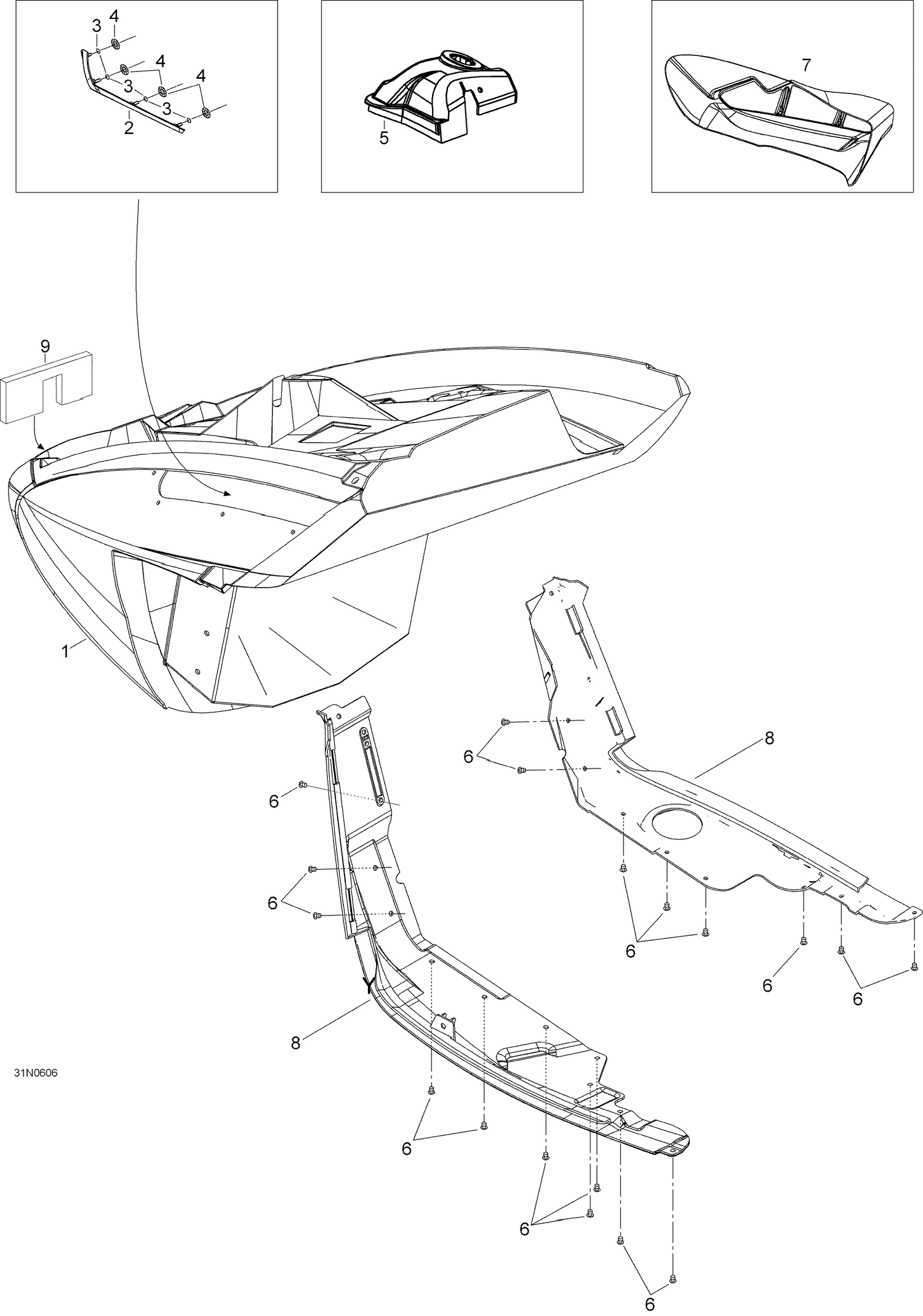

09- Bottom Pan
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 605253929 | Intake frame |
| 3 | 48231 | O-ring |
| 4 | 36084 | Snap ring |
| 5 | 605353758 | R.H. Shock cover |
| 5 | 605353759 | L.H. Shock cover |
| 6 | 36037 | Rivet |
| 7 | 605253930 | Inlet channel |
| 8 | 502006702 | RH BOTTOM PAN - Call your local BRP dealership |
| 8 | 502006703 | LH BOTTOM PAN - Call your local BRP dealership |
