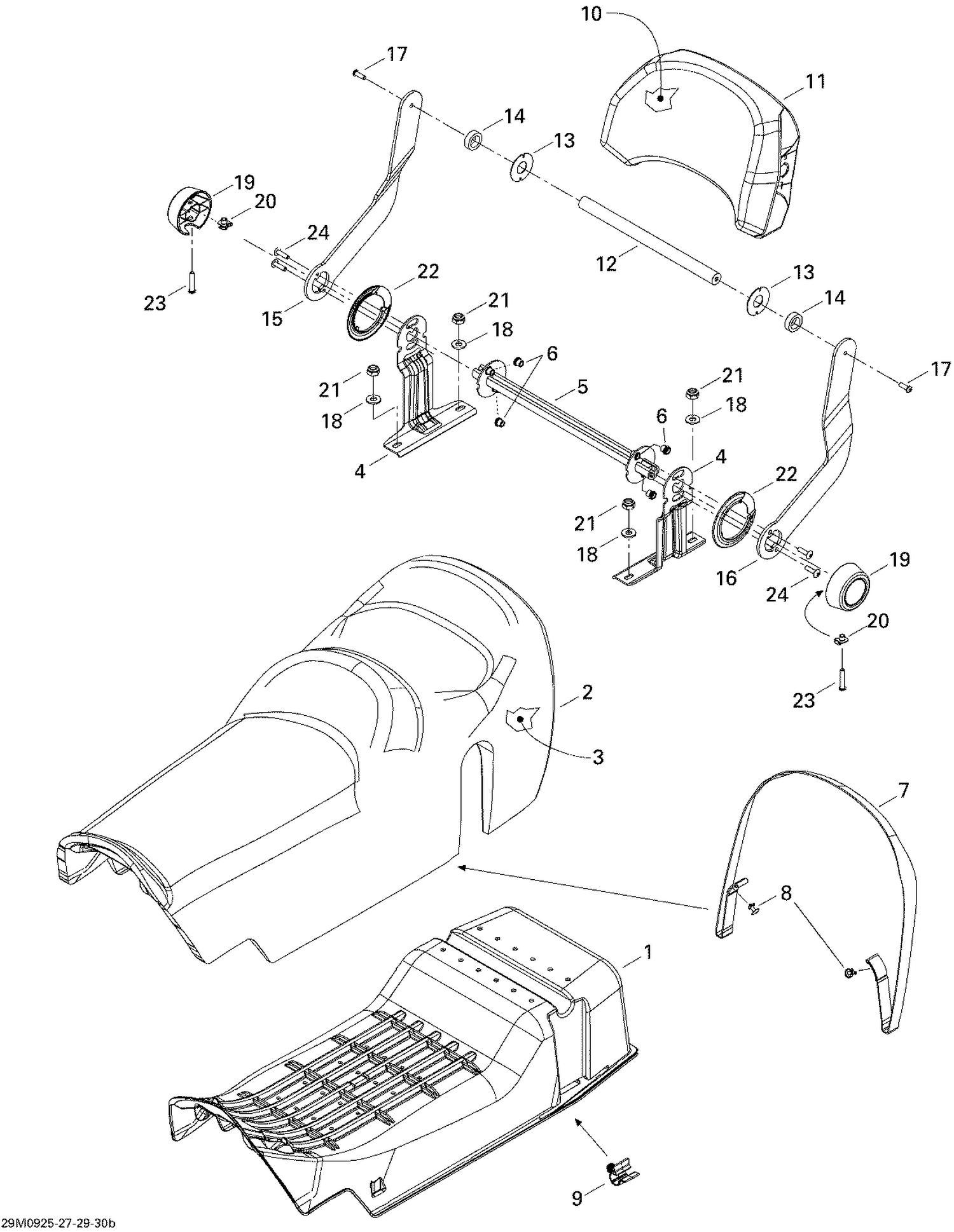

| Ref | Part Number | Description |
|---|
| 1 |
510004887 |
SEAT BASE - Call your local BRP dealership |
| 2 |
510004669 |
SEAT COVER - Call your local BRP dealership |
| 3 |
510004670 |
Foam |
| 4 |
510004662 |
T PLATE - Call your local BRP dealership |
| 5 |
510004663 |
CROSS MEMBER - Call your local BRP dealership |
| 6 |
293450166 |
Insert |
| 7 |
510004768 |
COURROIE DE SIEGE - Call your local BRP dealership |
| 8 |
293150067 |
Rivet |
| 9 |
275500528 |
Hose Retainer |
| 10 |
510004365 |
BACKREST FOAM - Call your local BRP dealership |
| 11 |
510004761 |
BACKRESS COVER - Call your local BRP dealership |
| 12 |
510004377 |
Upper Backrest Axle |
| 13 |
510004379 |
Washer |
| 14 |
510004378 |
Rubber Shim |
| 15 |
510004373 |
RH ARM, BLACK - Call your local BRP dealership |
| 16 |
510004375 |
LH ARM, BLACK - Call your local BRP dealership |
| 17 |
205982586 |
SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership |
| 18 |
234082410 |
Flat Washer 8 mm |
| 19 |
510004481 |
CAP - Call your local BRP dealership |
| 20 |
250100053 |
J-nut |
| 21 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 22 |
510004713 |
SPACER - Call your local BRP dealership |
| 23 |
250000220 |
SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership |
