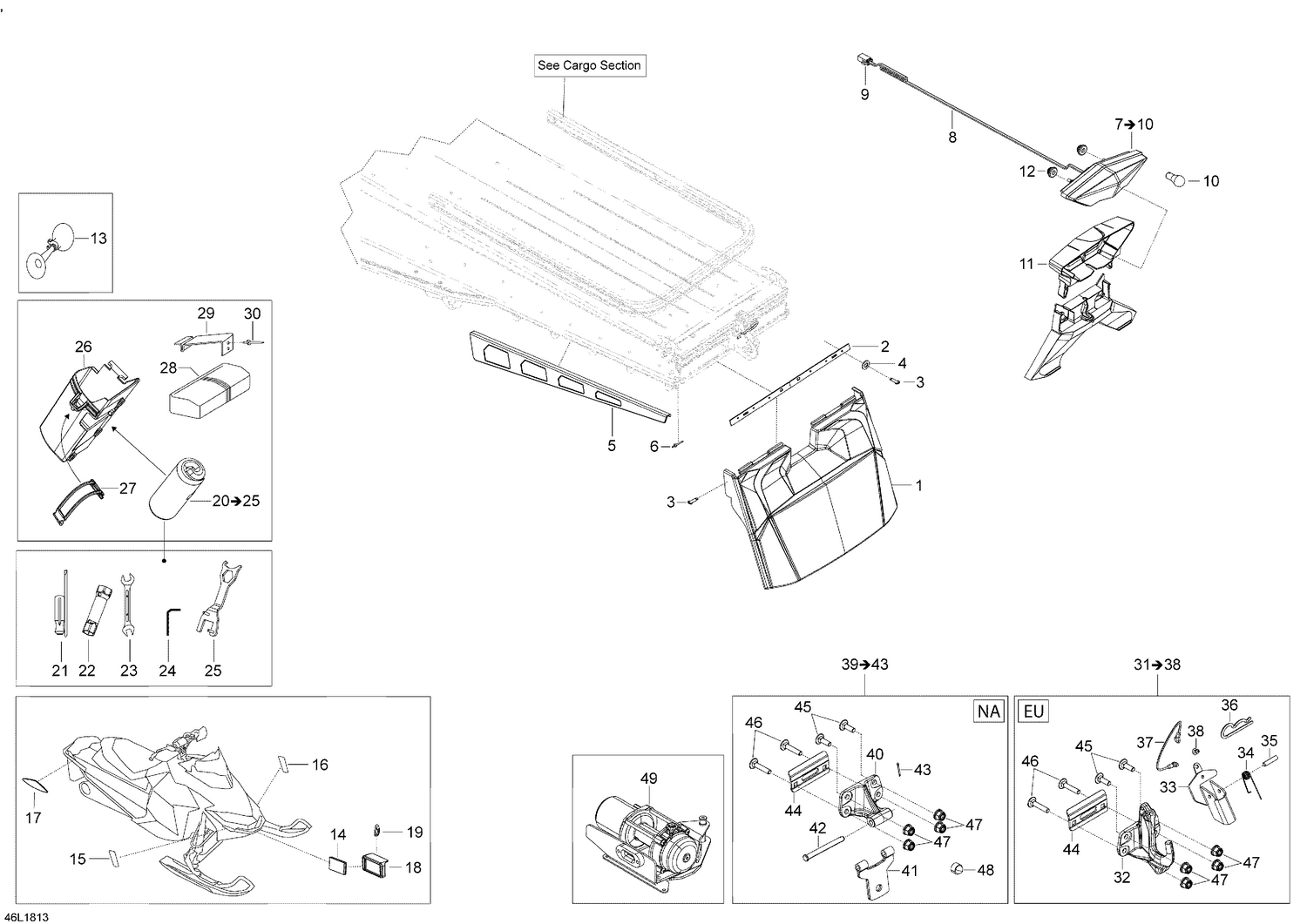

09- Utilities Expedition - 1200 4-TEC
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 520001021 | Plate |
| 3 | 250000676 | Forming Screw M5 x 16 |
| 4 | 250200025 | Washer M5 |
| 5 | 520000693 | RH Protector |
| 5 | 520000694 | LH Protector |
| 6 | 293150163 | Rivet Hucklok |
| 8 | 520000849 | Rear Wiring Harness |
| 10 | 520000758 | Bulb |
| 11 | 511000764 | Rear Light Cover |
| 12 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 20 | 520001593 | Tools Kit This part replaces 529000078. |
| 28 | 708200043 | TOOLS BOX - Call your local BRP dealership This part replaces 572036310. |
| 29 | 5346728 | Tool Kit Rack |
| 30 | 36108 | Rivet |
| 44 | 520000727 | Plate |
| 45 | 207782544 | Carriage Bolt, M8 X 25 |
| 46 | 207784044 | Bolt Carriage M8 X 40 |
| 47 | 233281414 | Hex. Flange Elastic Nut M8 |
