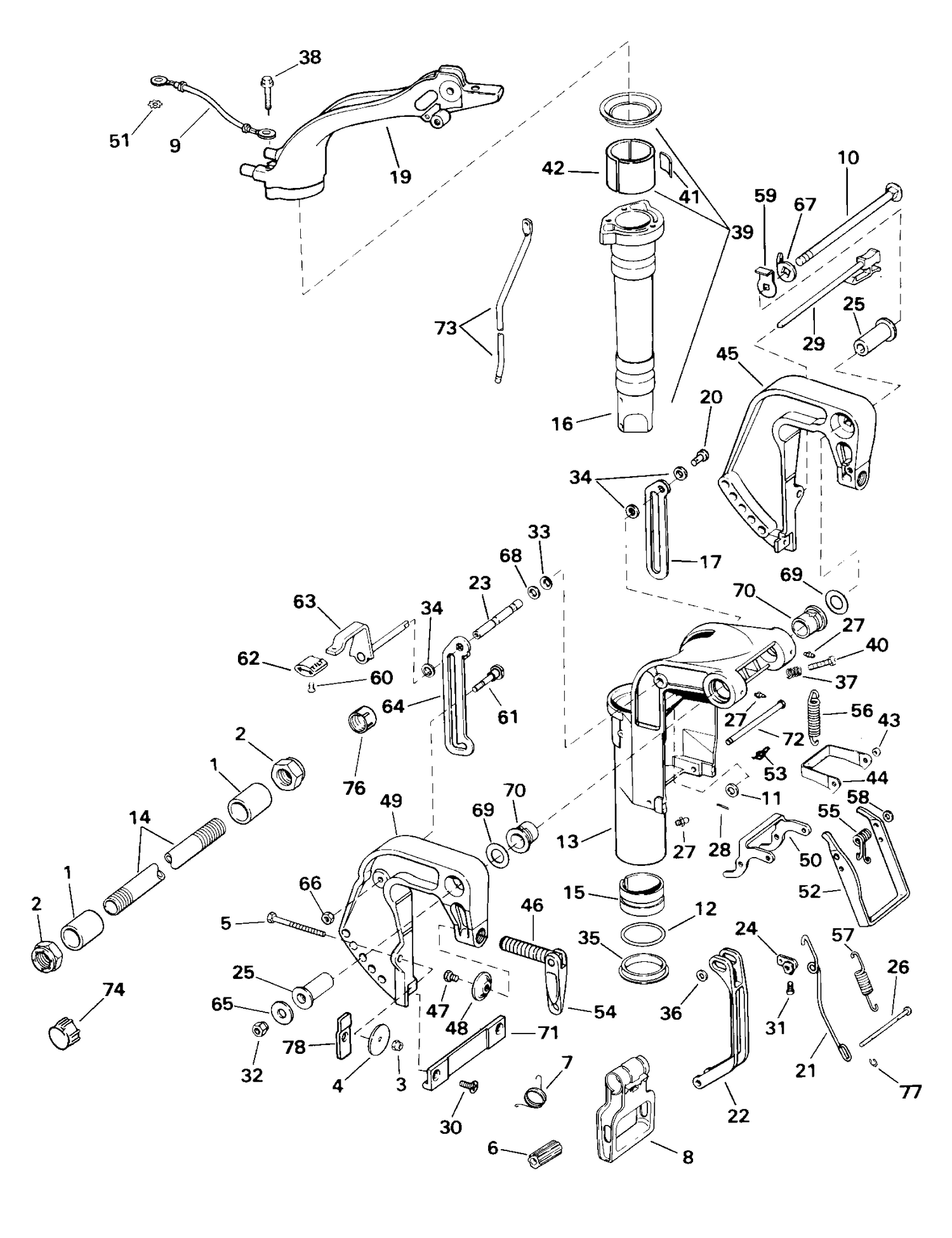

| Ref | Part Number | Description |
|---|
| 7 |
0338297 |
SPRING, Lift handle |
| 8 |
0338298 |
LIFT HANDLE |
| 9 |
0586030 |
GROUND WIRE, Steering bracket |
| 11 |
0343981 |
WASHER, Pin to support bracket |
| 13 |
0338887 |
SWIVEL BRACKET |
| 15 |
0309967 |
BUSHING, Pilot shaft, lower |
| 16 |
0335332 |
PIVOT SHAFT |
| 17 |
0328289 |
SUPPORT BRACKET, Tilt lock port |
| 19 |
0342567 |
STEERING BRACKET |
| 20 |
0328290 |
PIN, Support bracket to swivel bracket |
| 21 |
0320416 |
WIRE, Reverse lock release |
| 22 |
0338874 |
CARRYING HANDLE |
| 23 |
0328285 |
BUSHING, Tilt lock shaft to sw. brkt. |
| 24 |
0319049 |
BELL CRANK, Reverse lock |
| 26 |
0326943 |
PIN, Link to lock lever |
| 28 |
0345942 |
COTTER PIN, Pin to support bracket |
| 29 |
0432453 |
KNOB & TILT PIN ASSY. |
| 30 |
0308684 |
SCREW, Cover to housing |
| 31 |
0319108 |
SCREW BELCRANK |
| 33 |
0312977 |
BOW WASHER, Link to lever |
| 34 |
0308052 |
RONDELLE, verrouillage de relevage, douille d'arbre |
| 35 |
0309966 |
THRUST WASHER, Lower swivel bracket |
| 36 |
0310540 |
RONDELLE, arbre de verrouillage de relevage, extérieur |
| 39 |
0397736 |
BLOCK ASSY., Friction |
| 43 |
0310540 |
RONDELLE, arbre de verrouillage de relevage, extérieur |
| 44 |
0319050 |
LEVER, Reverse locking |
| 45 |
0328268 |
STERN BRACKET, Port |
| 46 |
0391421 |
CLAMP SCREW & HANDLE |
| 46 |
0433675 |
CLAMP SCR. & HAND. ASSY. |
| 49 |
0328269 |
STERN BRACKET, Starboard |
| 50 |
0322949 |
LINK, Reverse lock |
| 52 |
0338657 |
LINK, Shallow water drive |
| 55 |
0320427 |
SPRING, Shallow water drive |
| 56 |
0338489 |
SPRING, Reverse lock |
| 57 |
0320428 |
SPRING, Reverse lock rod |
| 58 |
0204293 |
WASHER, Hinge pin |
| 60 |
0319227 |
SCREW, Knob |
| 61 |
0319047 |
PIN, Tilt lock to stern bracket |
| 62 |
0328048 |
KNOB, Tilt & reverse lock lever |
| 63 |
0437797 |
LEVER & SHAFT ASSY., Lock |
| 64 |
0338563 |
TILT LOCK, Starboard |
| 68 |
0303884 |
RONDELLE |
| 69 |
0319699 |
THRUST WASHER, Stern bracket |
| 70 |
0319787 |
BUSHING |
| 71 |
0309738 |
PLATE STERN BRACKET |
| 72 |
0319055 |
PIN, Link to bracket |
| 73 |
0338440 |
SHIFT ROD, Upper |
| 77 |
0203949 |
E RING LINK |
