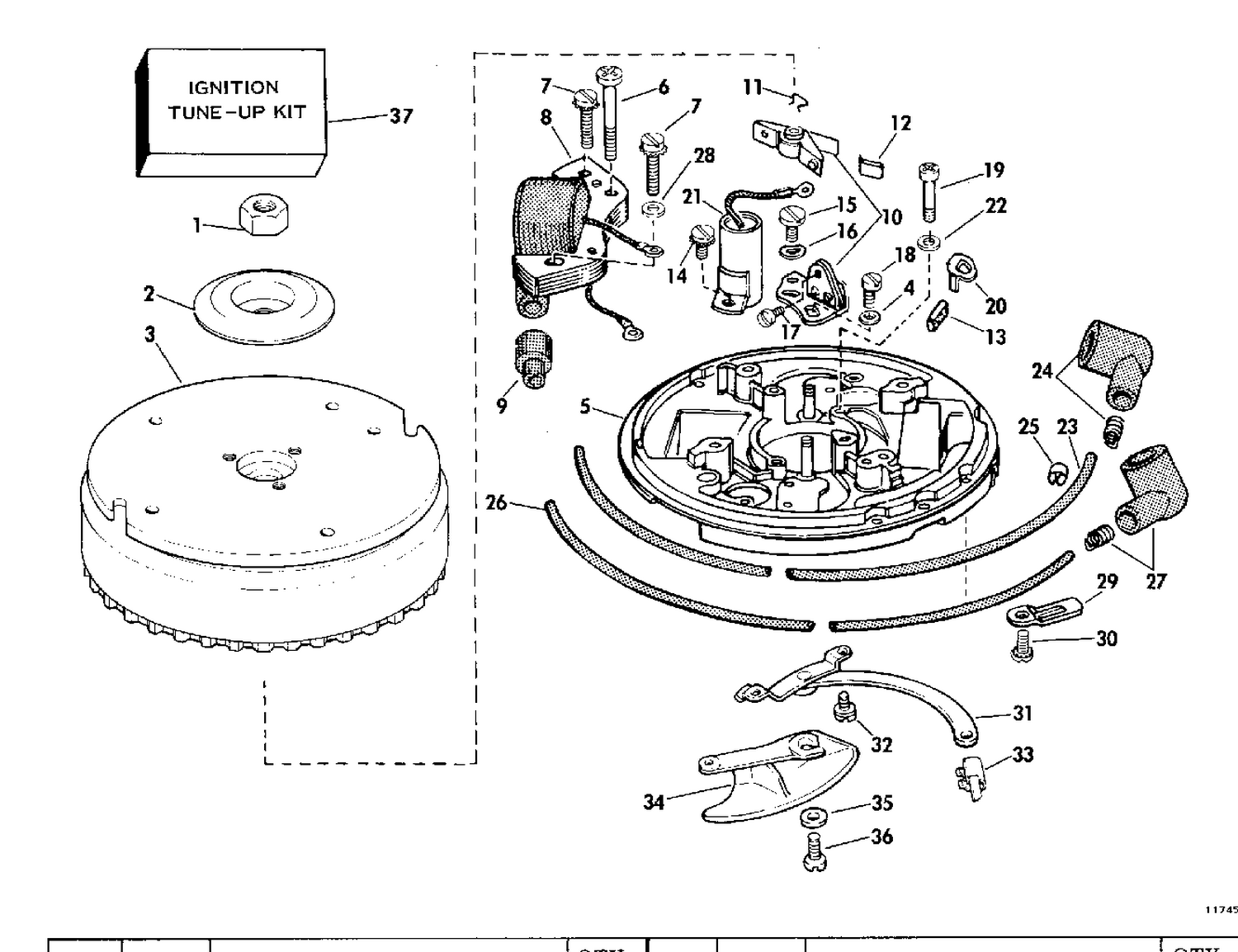

| Ref | Part Number | Description |
|---|
| 1 |
0130541 |
NUT, Flywheel |
| 2 |
0311232 |
COVER |
| 3 |
0580562 |
FLYWHEEL ASSEMBLY |
| 4 |
0510391 |
BOW WAHSER,Eccentric scr. |
| 5 |
0580360 |
ARMATURE PLATE & POST |
| 6 |
0510191 |
SCREW |
| 7 |
0510397 |
SCREW |
| 8 |
0580971 |
COIL & LAMINATION |
| 10 |
0580148 |
BEAKER,Assy |
| 15 |
0510278 |
SCREW |
| 16 |
0510208 |
BOW WASHER |
| 17 |
0510194 |
SCREW |
| 18 |
0510185 |
ECCENTRIC SCREW |
| 19 |
0310350 |
SCREW, Armature plate |
| 20 |
0510188 |
CLIP, Oiler |
| 21 |
0580321 |
CONDENSER |
| 22 |
0360252 |
WASHER This part replaces 0306311. |
| 23 |
LEAD, |
High tension, upper |
| 25 |
0120783 |
BAND, Identification |
| 26 |
LEAD, |
High tension, lower |
| 29 |
0510409 |
CLAMP, H.T. lead |
| 31 |
0380185 |
PLATE & LINK, Throttle control |
| 33 |
0316362 |
CLIP, Link spring |
| 34 |
0313676 |
CAM, Armature plate |
| 35 |
0306413 |
WASHER |
| 0580582 |
0580582 |
ARMATURE PLATE ASSY |
| 0580584 |
0580584 |
H T LEAD ASSY., Upper |
| 0580585 |
0580585 |
H T LEAD ASSY., Lower |
