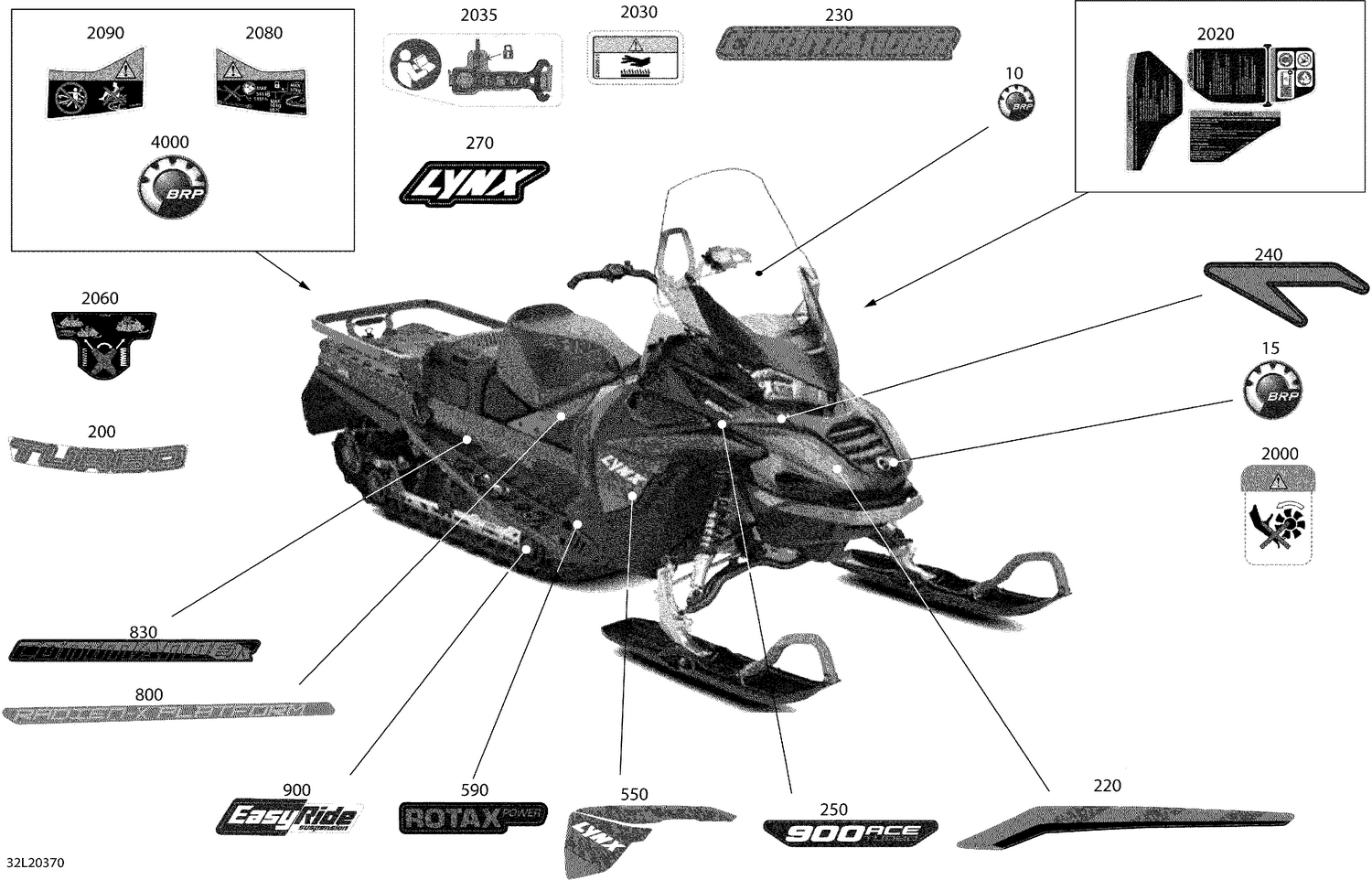

09- Body - Decals - STD
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 704904615 | BRP Logo, 13 mm |
| 15 | 516008738 | Logo 48mm "BRP" |
| 200 | 516009698 | Hood Decal "Turbo" |
| 220 | 516009688 | LH/RH Hood Decal |
| 230 | 516009689 | Front Hood Decal "Commander" |
| 240 | 516009047 | LH/RH Upper Side Panel Decal |
| 250 | 516009687 | Upper Side Panel Decal "900 ACE Turbo" |
| 270 | 516009552 | Decal "Lynx" |
| 550 | 516009440 | Side Panel Decal "LYNX" |
| 590 | 516008760 | Decal "Rotax Power" |
| 800 | 516009809 | LH/RH Decals "Radien-X Platform" |
| 830 | 516009439 | LH/RH Frame Decals "Commander" |
| 900 | 516008736 | Black, WTS Decal |
| 2000 | 516009920 | Warning Decal |
| 2020 | 516009927 | Decal - Label En/Fi/Swe |
| 2030 | 516009922 | Warning Decal |
| 2035 | 516009955 | Warning Decal |
| 2060 | 516009928 | Suspension Adjustment Decal |
| 2070 | 516009650 | Decal Track Tension |
| 2080 | 516009807 | Instruction/Warning Label |
| 2090 | 516009930 | Warning Decal Rotating Track |
