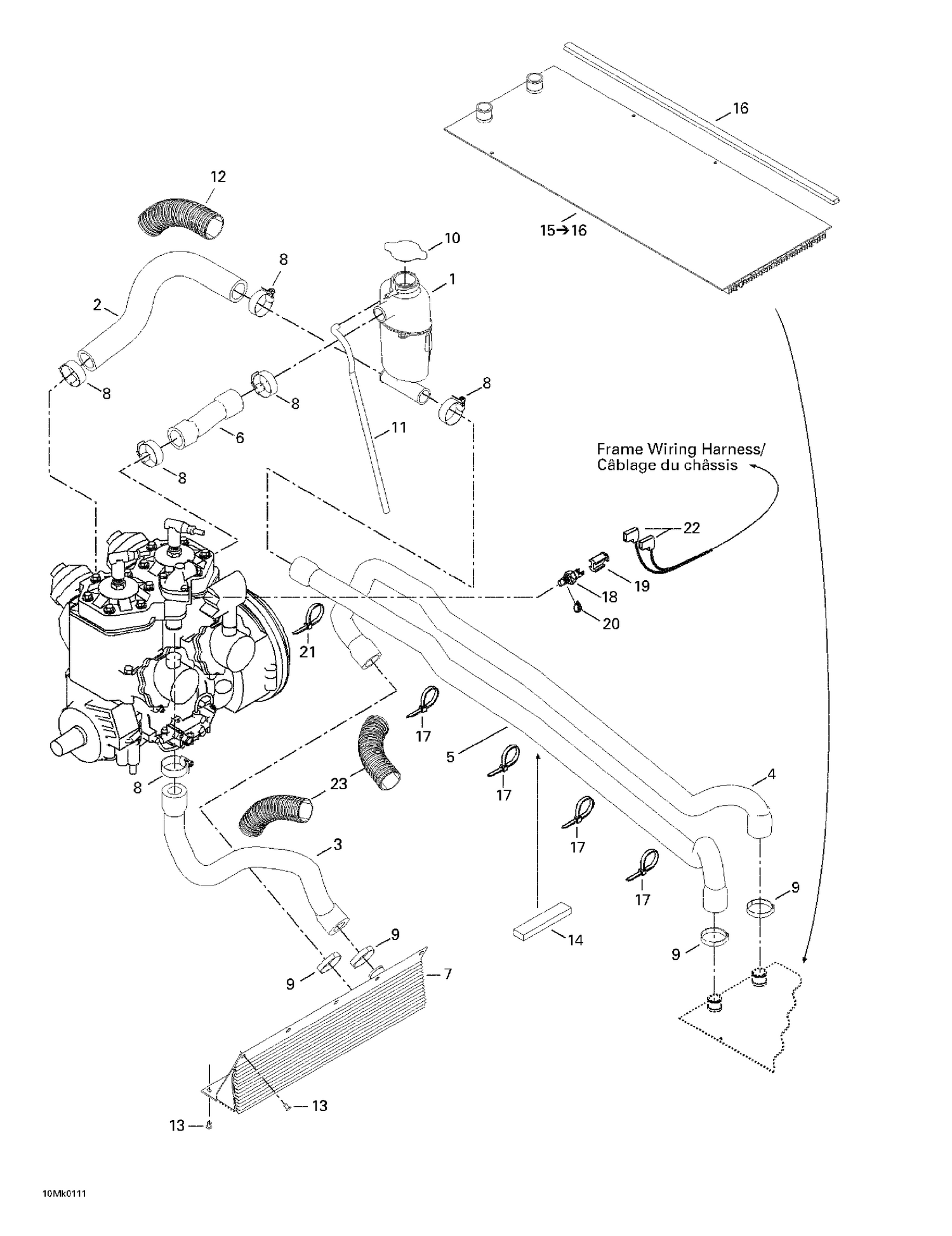

01- Cooling System
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000167 | Tank Coolant |
| 2 | 509000001 | Engine Inlet Hose |
| 3 | 509000046 | ENGINE OUTLET HOSE - Call your local BRP dealership |
| 4 | 509000003 | RADIATOR INLET HOSE - Call your local BRP dealership |
| 5 | 509000004 | Radiator Outlet Hose |
| 6 | 509000112 | Deviation Hose |
| 7 | 517297100 | Front Radiator |
| 8 | 408800400 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 9 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 10 | 509000187 | Pressure Cap This part replaces 414684700. |
| 11 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 12 | 219704413 | Was 415084700 Protective Shield |
| 13 | 390402200 | Pop Rivet 3/16" |
| 14 | 219704364 | Neoprene Seal (1PAC=3M) |
| 16 | 518321655 | Radiator Protector |
| 17 | 293750008 | Tie Wrap 368 mm |
| 18 | 512047000 | Temperature Sensor |
| 19 | 515175297 | Connector Plug |
| 20 | 219704455 | Was 293800018 Loctite 592, 50 ml |
| 21 | 293750002 | Tie Wrap 142 mm |
| 22 | 409010300 | Female Terminal |
