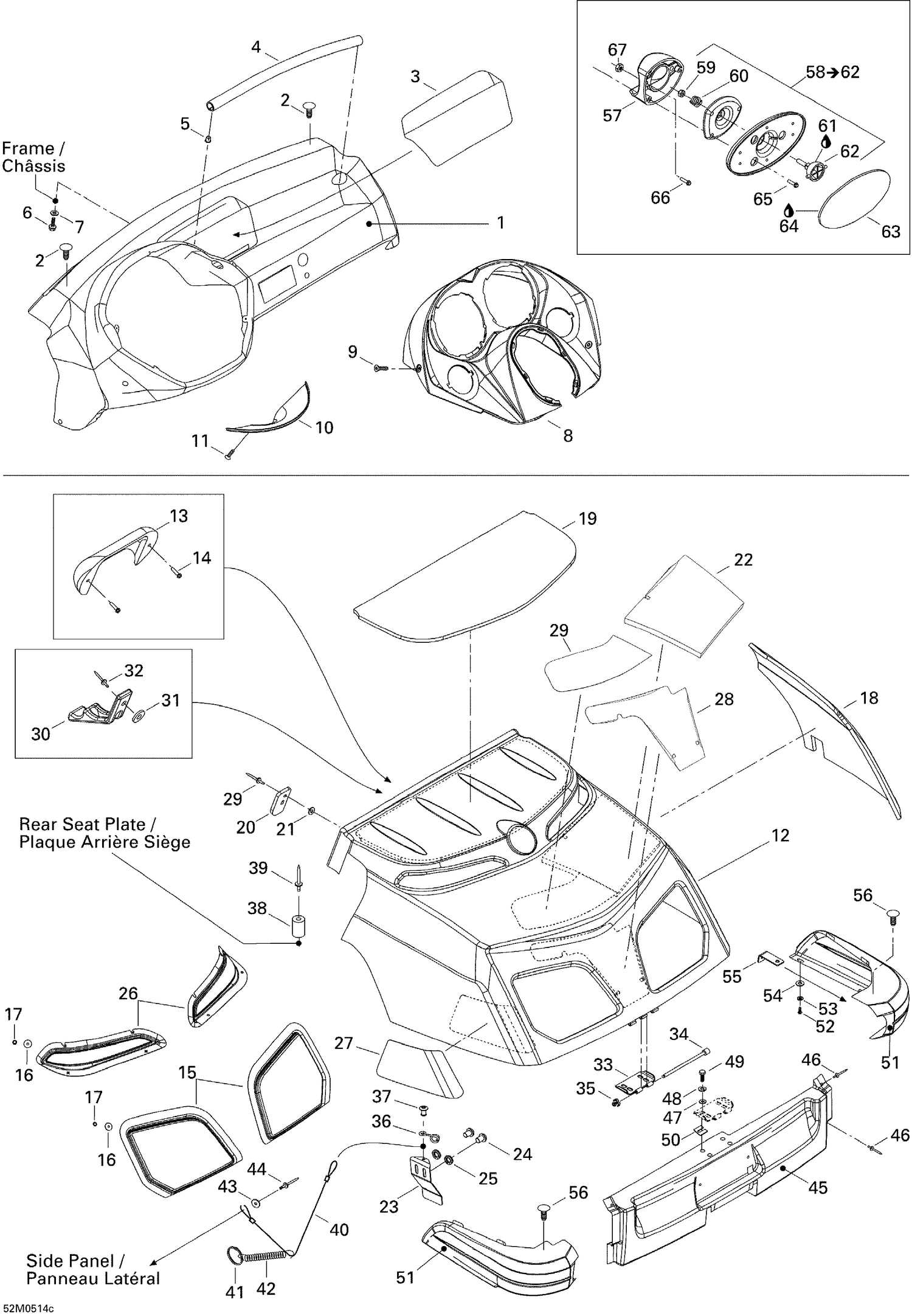

09- Body, Elite 3
Parts (69)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517302882 | Dash |
| 2 | 517303276 | GRAY DART - Call your local BRP dealership |
| 3 | 517302884 | Access Door, Headlamp |
| 4 | 517303226 | Handle Grip |
| 5 | 293450275 | Insert This part replaces 415107300. |
| 6 | 207662044 | Hex. Flange Screw M6 X 20 |
| 7 | 234062410 | Flat Washer 6 mm |
| 8 | 517303480 | Indicator Support |
| 9 | 250000031 | PHILLIPS TAPPING SCREW M4.8 X 16 - Call your local BRP dealership |
| 10 | 517303146 | Lower Dash Cover |
| 11 | 250000172 | SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
| 12 | 517302909 | Engine Hood |
| 13 | 517303116 | Handle |
| 14 | 241141660 | Hex. Flange Screw K40 X 16 |
| 15 | 517303058 | RH Rear Grille |
| 15 | 517303059 | LH Rear Grille |
| 16 | 250200029 | Washer M6 |
| 17 | 250100020 | Locking Nut |
| 18 | 517303267 | Side Foam |
| 19 | 517302914 | Upper Foam |
| 20 | 517303269 | Upper Guide LH |
| 20 | 517303300 | Upper Guide RH |
| 21 | 517225900 | Flat Washer |
| 22 | 517303479 | Foam |
| 23 | 517303478 | Hood Guide |
| 24 | 205460860 | Socket Screw M6 X 8 |
| 25 | 234161601 | Lock Washer Helical M6 |
| 26 | 517303060 | RH Upper Grille |
| 26 | 517303061 | LH Upper Grille |
| 27 | 514054036 | Reflective Sheet |
| 28 | 514054037 | Reflective Sheet |
| 29 | 514054038 | Reflective Sheet |
| 30 | 570027100 | Hood Latch |
| 31 | 234052400 | Flat Washer 5 mm, Stainless |
| 32 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 33 | 517303129 | Lower Half Hinge |
| 34 | 204070204 | HINGE ROD - Call your local BRP dealership |
| 35 | 204070205 | Cotter Pin M2.5 X 12 |
| 36 | 517262800 | Bracket |
| 37 | 390402200 | Pop Rivet 3/16" |
| 38 | 293830043 | Rubber Stopper |
| 39 | 390402300 | Pop Rivet 3/16" |
| 40 | 415093900 | RETAINER CABLE - Call your local BRP dealership |
| 41 | 415058300 | RING - Call your local BRP dealership |
| 42 | 415043300 | Spring |
| 43 | 234052400 | Flat Washer 5 mm, Stainless |
| 44 | 390402300 | Pop Rivet 3/16" |
| 45 | 517302918 | Rear Cap |
| 46 | 293150065 | RIVET - Call your local BRP dealership |
| 47 | 224060251 | Washer |
| 48 | 234161601 | Lock Washer Helical M6 |
| 49 | 207063044 | Hex. Screw M6 X 30 |
| 50 | 517303432 | Spacer |
| 51 | 517302919 | Bumper Corner RH |
| 51 | 517302920 | Bumper Corner LH |
| 52 | 205462060 | SOCKET SCREW M6 X 20 - Call your local BRP dealership |
| 53 | 234161601 | Lock Washer Helical M6 |
| 54 | 234062600 | Flat Washer M6, Stainless |
| 55 | 517303318 | Corner Support |
| 56 | 517303276 | GRAY DART - Call your local BRP dealership |
| 57 | 517303217 | Mirror Adapter |
| 59 | 232561600 | Hex. Elastic Stop Nut M6 |
| 60 | 269500453 | Mirror Spring |
| 61 | 293550010 | Synthetic Grease, 400 G |
| 62 | 269500079 | MIRROR BALL JOINT - Call your local BRP dealership |
| 63 | 269500454 | MIRROR - Call your local BRP dealership |
| 64 | 296000309 | Silicone Sealant 51388, 300 ml |
| 65 | 241141660 | Hex. Flange Screw K40 X 16 |
| 66 | 205451646 | Socket Screw M5 X 16 |
