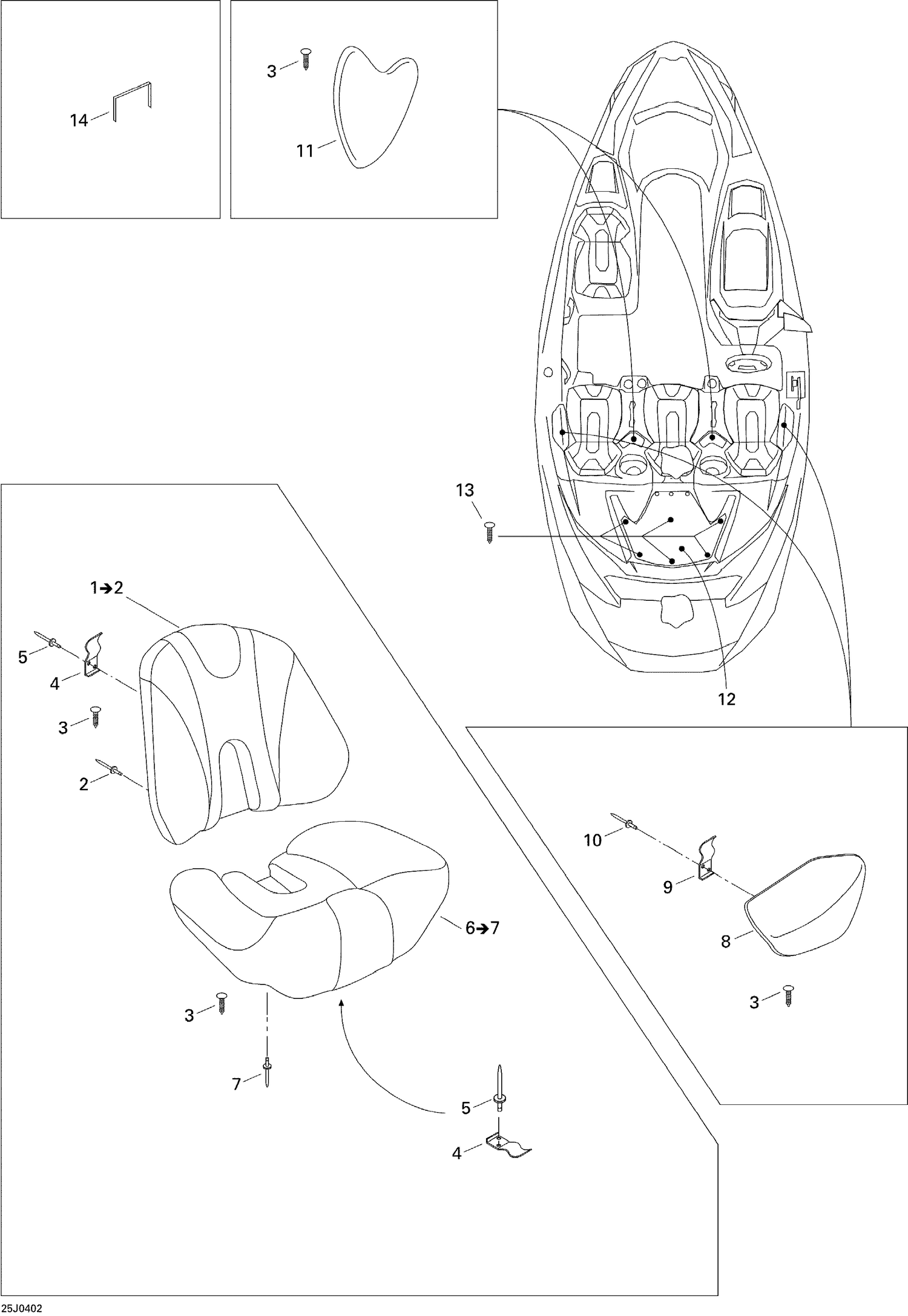

09- Seat
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 293150005 | Pop Rivet 3/16" |
| 3 | 293730021 | Dart |
| 4 | 204613998 | SEAT SUPPORT - Call your local BRP dealership This part replaces 204610288. |
| 5 | 293150043 | Pop Rivet 3/16" |
| 7 | 293150005 | Pop Rivet 3/16" |
| 9 | 204613998 | SEAT SUPPORT - Call your local BRP dealership This part replaces 204610288. |
| 10 | 293150043 | Pop Rivet 3/16" |
| 11 | 204612275 | Elbowrest Ass'y |
| 12 | 204612536 | Cushion Cover Ass’y |
| 13 | 293730021 | Dart |
