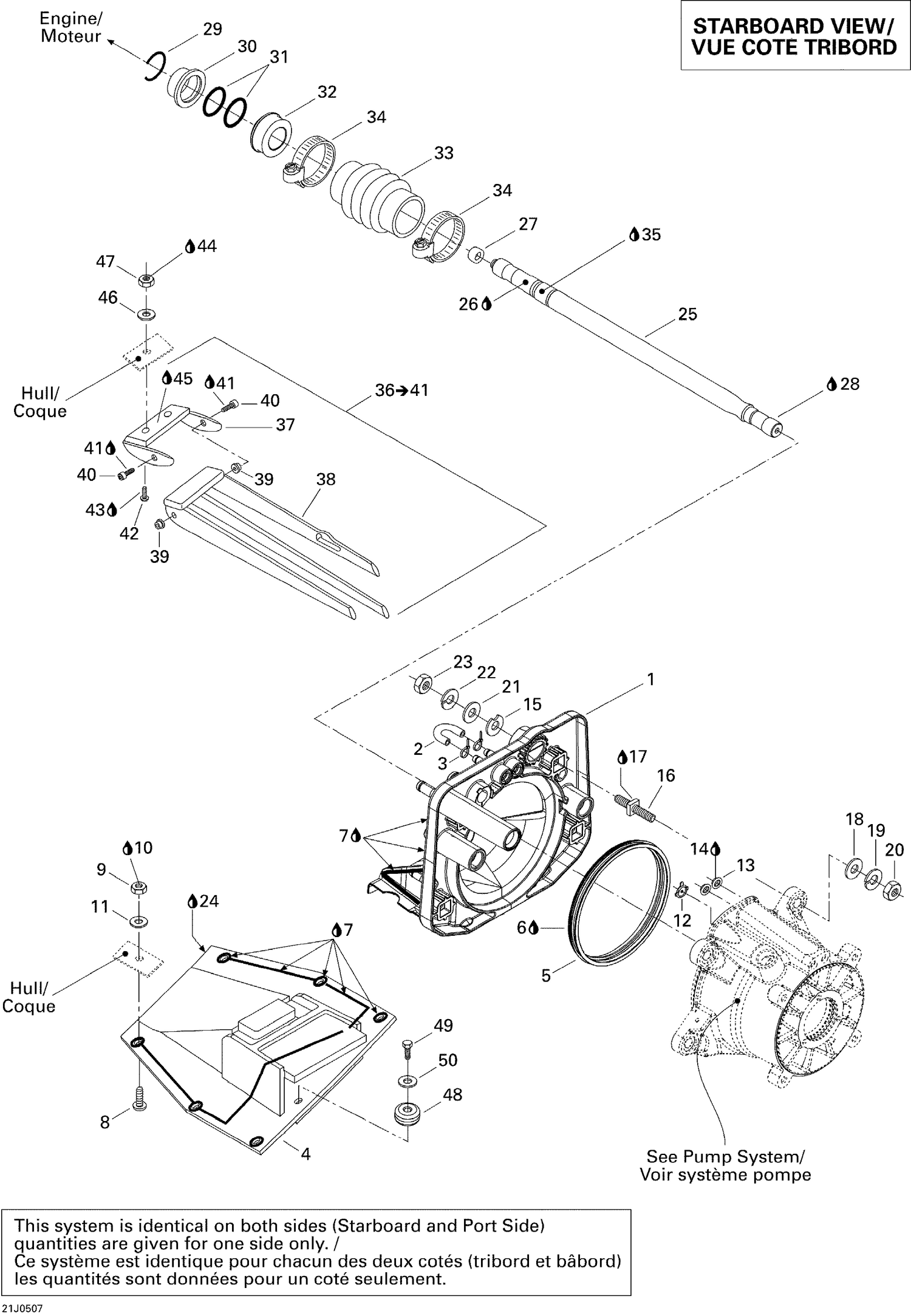

| Ref | Part Number | Description |
|---|
| 1 |
204120252 |
PUMP SUPPORT - Call your local BRP dealership |
| 2 |
219704412 |
Polyurethane Hose, 8 Mm 3000Mm Long |
| 3 |
293750001 |
Tie Wrap 94 mm |
| 4 |
204120286 |
RIDE PLATE, PORT SIDE - Call your local BRP dealership |
| 4 |
204120287 |
RIDE PLATE, STARBOARD - Call your local BRP dealership |
| 5 |
293200087 |
Neoprene Seal |
| 6 |
413708300 |
Glue Tube, Loctite 454, 20 G |
| 7 |
219701421 |
Instant Gasket This part replaces 293800088. |
| 8 |
208564060 |
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership |
| 9 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 10 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 11 |
234062600 |
Flat Washer M6, Stainless |
| 12 |
291004649 |
Reducer This part replaces 291001887. |
| 13 |
293250084 |
Watertight Seal |
| 15 |
0460011 |
NEEDS DESCRIPTION This part replaces 204120067. |
| 15 |
272000053 |
Shim 0.3 mm |
| 16 |
250300022 |
Square Stud This part replaces 250300010. |
| 18 |
211200051 |
Flat Washer |
| 19 |
234101601 |
Helicoidal Lock Washer M10 |
| 20 |
232001600 |
HEX. NUT M10 - Call your local BRP dealership |
| 21 |
234002600 |
Flat Washer 10 mm, Stainless |
| 22 |
234101601 |
Helicoidal Lock Washer M10 |
| 23 |
232001600 |
HEX. NUT M10 - Call your local BRP dealership |
| 24 |
219701421 |
Instant Gasket This part replaces 293800088. |
| 25 |
271001449 |
Drive Shaft |
| 26 |
Not |
Available As Spare Part - Engine Oil 10W40 |
| 27 |
272000173 |
Drive Shaft Plug |
| 28 |
293550010 |
Synthetic Grease, 400 G |
| 29 |
271001575 |
C-Clip This part replaces 272000175. |
| 30 |
295501200 |
Carbon Ring Kit This part replaces 272000176. |
| 31 |
293300044 |
O-Ring |
| 32 |
295501200 |
Carbon Ring Kit This part replaces 272000177. |
| 33 |
272000183 |
Bellows |
| 34 |
293650077 |
Norma Clamp |
| 35 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 37 |
204120083 |
Grate Support, Starboard |
| 37 |
204120086 |
GRATE SUPPORT, PORT SIDE - Call your local BRP dealership |
| 38 |
204120256 |
MOBILE GRATE, STARBOARD - Call your local BRP dealership |
| 38 |
204120257 |
Mobile Grate, Port Side |
| 39 |
204390001 |
PLASTIC BUSHING - Call your local BRP dealership |
| 40 |
211000099 |
SOCKET SCREW M6 X 8 - Call your local BRP dealership |
| 41 |
293800060 |
Loctite 243, 10 ml |
| 42 |
208563560 |
Phillips Screw M6 X 35 |
| 43 |
293800060 |
Loctite 243, 10 ml |
| 44 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 45 |
219701421 |
Instant Gasket This part replaces 293800088. |
| 46 |
234062600 |
Flat Washer M6, Stainless |
| 47 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 48 |
271001813 |
Anode Zinc This part replaces 271001487. |
| 49 |
207362060 |
Hex. Screw M6 X 20, Scotch Grip |
