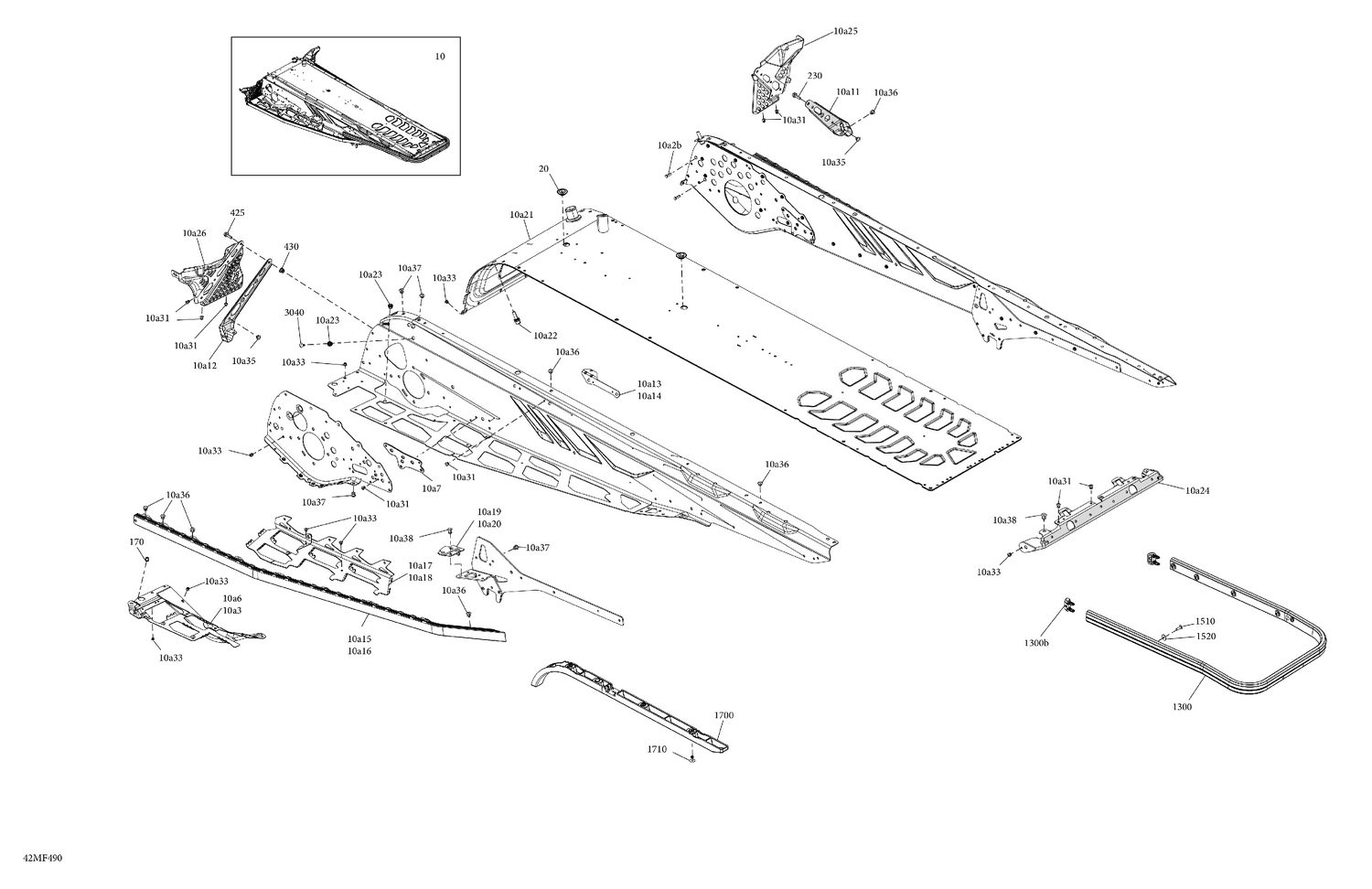

06- Frame - System - Rear Section
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 10a11 | 518334507 | Stirrup Reinforcement |
| 10a12 | 518332924 | Deep Black, LH Chassis Reinforcement |
| 10a13 | 518330299 | LH Member Fixation Plate |
| 10a14 | 518331745 | RH Under Chassis Reinforcement |
| 10a15 | 518328451 | RH Roller |
| 10a16 | 518328452 | LH Roller |
| 10a17 | 518336064 | RH Footrest Reinforcement |
| 10a18 | 518336063 | LH Footrest Reinforcement |
| 10a19 | 518329088 | LH Reinforcement Plate |
| 10a20 | 518329089 | RH Reinforcement Plate |
| 10a21 | 518335129 | Radiator Tunnel 154 |
| 10a22 | 250300652 | Protruding Stud M8 x 22 |
| 10a23 | 605636003 | Clinch Nut M6 Hexsert |
| 10a24 | 518328990 | Rear Cap |
| 10a25 | 518334509 | RH Footrest |
| 10a26 | 518334305 | LH Foot Protector |
| 10a2b | 250300027 | Clinch Stud M6 X 20 |
| 10a3 | 518332578 | RH Footrest Reinforcement |
| 10a31 | 390909100 | Avex Rivet |
| 10a33 | 390909200 | Avex Rivet |
| 10a35 | 293150264 | Rivet Ornit 6,5 X 10.5 |
| 10a36 | 293150265 | Rivet Ornit 6,5 X 12.5 |
| 10a37 | 293150266 | Ornit Rivet 6,5 X 14.5 |
| 10a38 | 293150267 | Rivet Ornit 6,5 X 16.5 |
| 10a6 | 518332577 | LH Footrest Reinforcement |
| 10a7 | 518337274 | Front Suspension Arm Reinforcement This part replaces 518336141. |
| 20 | 293730052 | Black, Plug |
| 170 | 293450267 | Insert M5 - 0.8 |
| 230 | 207562056 | Hex. Flange Screw M6 X 20 |
| 425 | 207562056 | Hex. Flange Screw M6 X 20 |
| 430 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1300b | 520001629 | Bumper Cap |
| 1510 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1700 | 518329982 | Front Protector |
| 1710 | 293150308 | Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 3040 | 293730079 | Dart |
