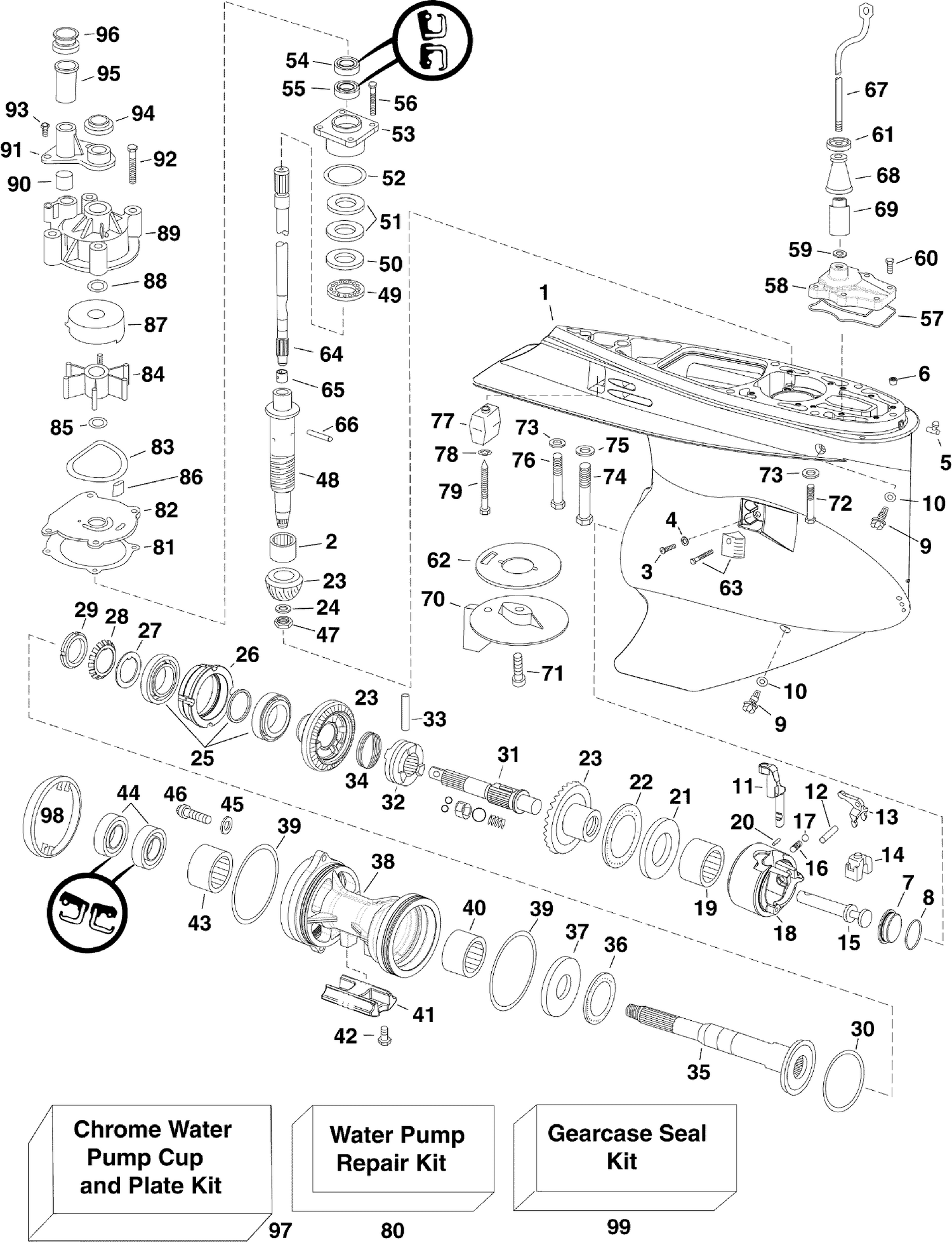

GEARCASE
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 64 | 5007672 | DRIVESHAFT Assembly, Upper |
| 64 | 5007673 | DRIVESHAFT ASSEMBLY, Upper |
| 67 | 0347301 | SHIFT ROD |
| 67 | 0347391 | SHIFT ROD |
| 70 | 0338743 | TRIM TAB |
| 71 | 0313715 | SCREW, Cap, hex hd, 7/16-14 x 1 |
| 72 | 0331999 | SCREW, Gearcase housing |
| 74 | 0331998 | SCREW, Gearcase to housing |
| 76 | 0330263 | SCREW, Mounting, 3/8 in. X 3.50 in. |
| 80 | 5001595 | Water Pump Repair Kit |
| 83 | 0331353 | Seal, Impeller Housing Plate. |
| 88 | 0331188 | O-Ring |
| 97 | 0435526 | CHROME CUP & PLATE KIT |
