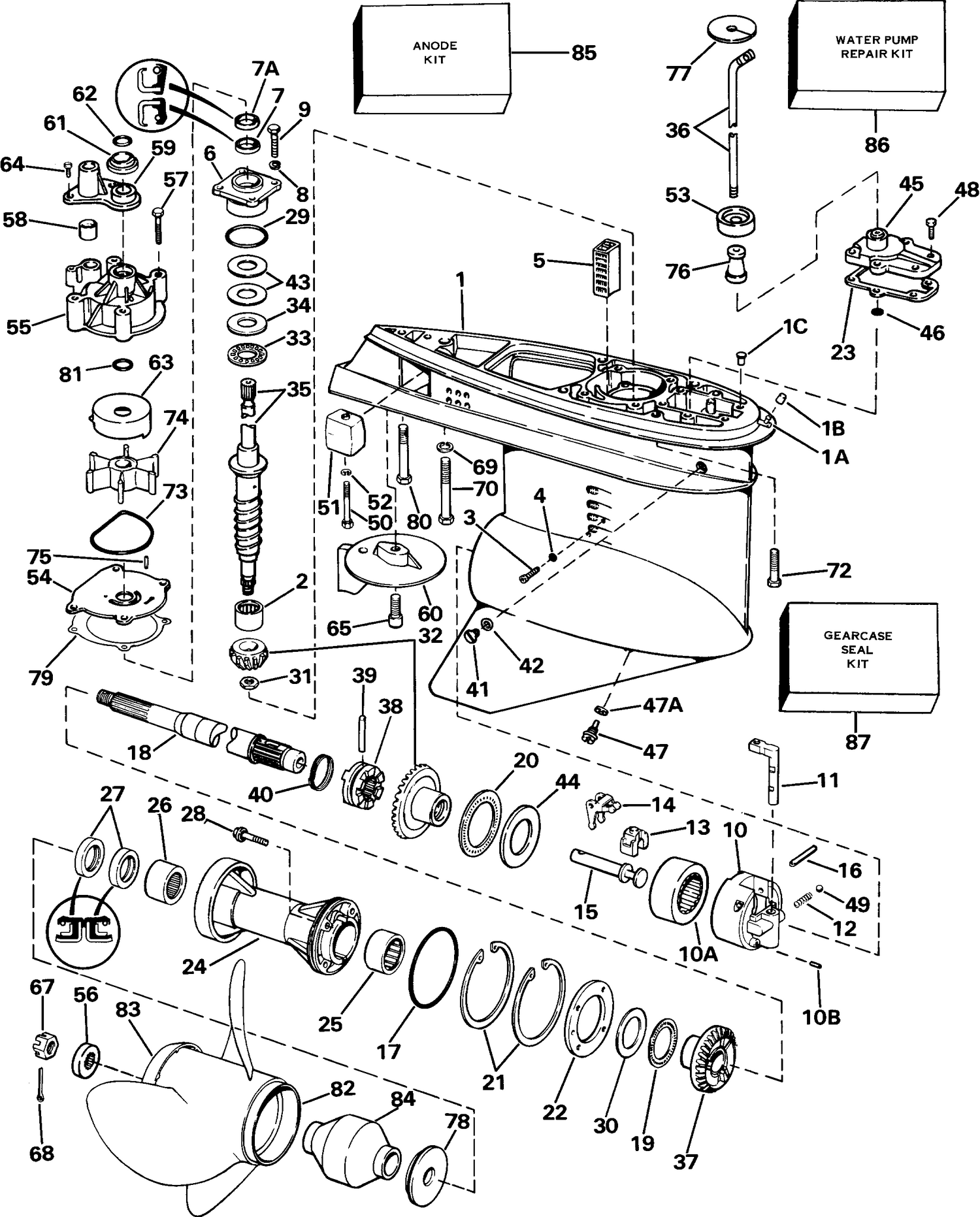

GEARCASE

GEARCASE

Parts (58)

RefPart NumberDescription
1 0393216 GEARCASE & BEARING ASSY.
1A 0326266 FITTING
1C 0329638 PLUG
4 0307853 O RING
17 0305123 O RING This part replaces 0321119.
18 0395209 PROP SHAFT ASSY
21 0321171 RETAINING RING
22 0321174 PLUG, Large
24 0397094 BEARING HOUSING & SEAL ASSY This part replaces 0393300.
28 0316563 SCREW
32 0983141 FORWARD GEAR & PINION ASSY This part replaces 0391289.
35 5000775 Kit Ayd/Shaft-20 This part replaces 0394615.
35 5000776 Kit Ay This part replaces 0394616.
36 0324407 SHIFT ROD
36 0324408 SHAFT ROD.
37 0910211 BOOT, Battery cable
38 0910198 SHIFTER, Clutch dog
52 0303886 LOCKWASHER
54 0435027 CUP & PLATE This part replaces 0330380.
54 0435526 CHROME CUP & PLATE KIT This part replaces 0330383.
55 0435485 IMPELLER HOUSING ASSY. This part replaces 0395040.
57 0335221 SCREW, Throttle body to reed plate This part replaces 0328715.
60 0338742 COMPENSATEUR DE DÉRIVE This part replaces 0327810.
63 0435027 CUP & PLATE This part replaces 0330379.
63 0435526 CHROME CUP & PLATE KIT This part replaces 0330384.
65 0313715 SCREW, Cap, hex hd, 7/16-14 x 1
68 0309955 COT PIN,Prop nut
70 0331998 SCREW, Gearcase to housing This part replaces 0330264.
72 0330139 SCREW, Gearcase to exhaust hsg.
73 0331353 Seal, Impeller Housing Plate.
75 0323950 KEY, Drive shaft to impeller
77 0322302 SEAL, Adapter to frame
78 0333592 THRUST BUSHING This part replaces 0321173.
80 0330263 SCREW, Mounting, 3/8 in. X 3.50 in.
81 0332000 SEAL RING
82 0387158 PEOPELLER, 15-1/2 x 13
82 0387159 PROP,15-1/2x15
82 0387161 PROP,14-1/2x19
82 0387163 PROP,14-1/2x23
82 0387995 PROP, 14-1/2 x 24 sstr
82 0387996 PROP, 14-1/2 x 26 sstr
82 0387997 PROP.14-1/2X28SSTR
82 0389019 PROP, 14-1/2 x 23 SST
82 0389923 PROP, 14-1/2 x 21 SST
82 0389924 PROP, 14-1/2 x 19 SST
82 0389925 PROP, 15 x 16 SST
82 0390725 PROP, 14 x 25 SST
82 0390831 PROP, 14-1/2 x 14 SST
82 0391201 PROP, 14-1/2 x 19
82 0391202 PROP, 14-1/2 x 21
82 0391290 PROP, 15 x 17 SST
82 0391863 PROPELLER, 14 1/2 X 27 OMC SRX
82 0391864 PROPELLER, 14 1/2 x 29 OMC SRX
82 0765187 PROPELLER, WDEX Models This part replaces 0387160.
85 0392160 ANODE KIT
86 5001594 WATER PUMP REPAIR KIT This part replaces 0395060.
0393457 0434417 GEARCASE ASSY., Complete This part replaces 0393457.
0393458 0434418 GEARCASE ASSY., Complete This part replaces 0393458.
