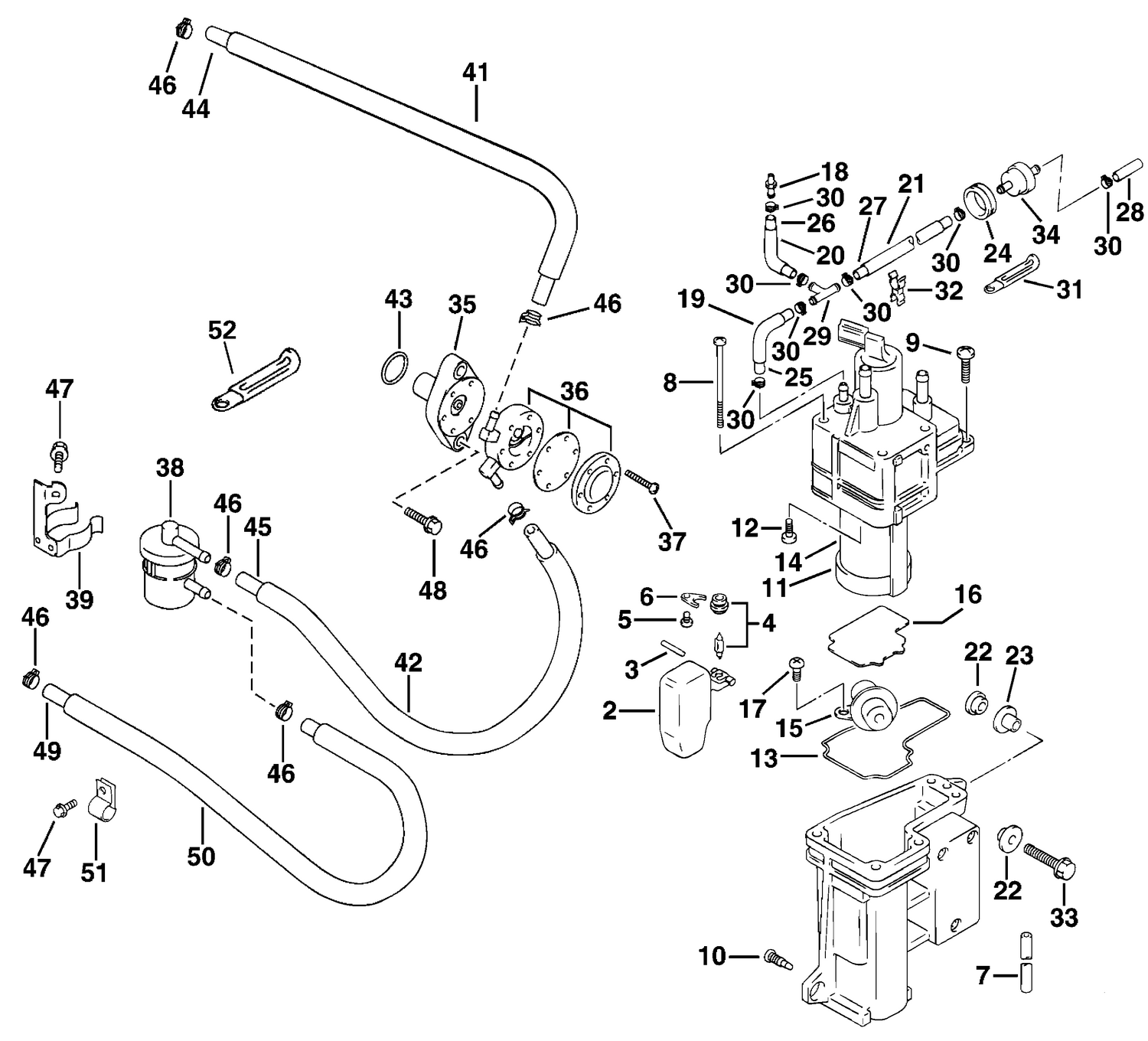

FUEL PUMP & SEPERATOR
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 18 | 5032239 | JET, Evaporation hose |
| 19 | 5032229 | SLEEVE |
| 20 | 5032234 | SLEEVE |
| 21 | 5032235 | PROTECTOR (280mm) |
| 22 | 5030472 | GROMMET |
| 23 | 5030556 | CUSHION |
| 30 | 5031278 | CLAMP |
| 31 | 5030135 | BRIDE |
| 32 | 5032237 | CLAMP |
| 33 | 5031046 | BOLT |
| 34 | 5032238 | FILTER |
| 35 | 5031398 | PUMP, Fuel |
| 38 | 5032323 | FILTER, Fuel |
| 39 | 5031401 | BRACKET, FUEL FILTER |
| 41 | 5030753 | PROTECTOR (CONN TO CYL) (L:560mm) This part replaces 5031434. |
| 42 | 5031435 | SLEEVE, Fuel hose |
| 43 | 5030540 | JOINT TORIQUE |
| 44 | 5031654 | HOSE (PUMP TO SEPARATOR) |
| 49 | 5032240 | HOSE, Connector to filter |
| 50 | 5030753 | PROTECTOR (CONN TO CYL) (L:560mm) |
| 51 | 5031902 | CLAMP |
