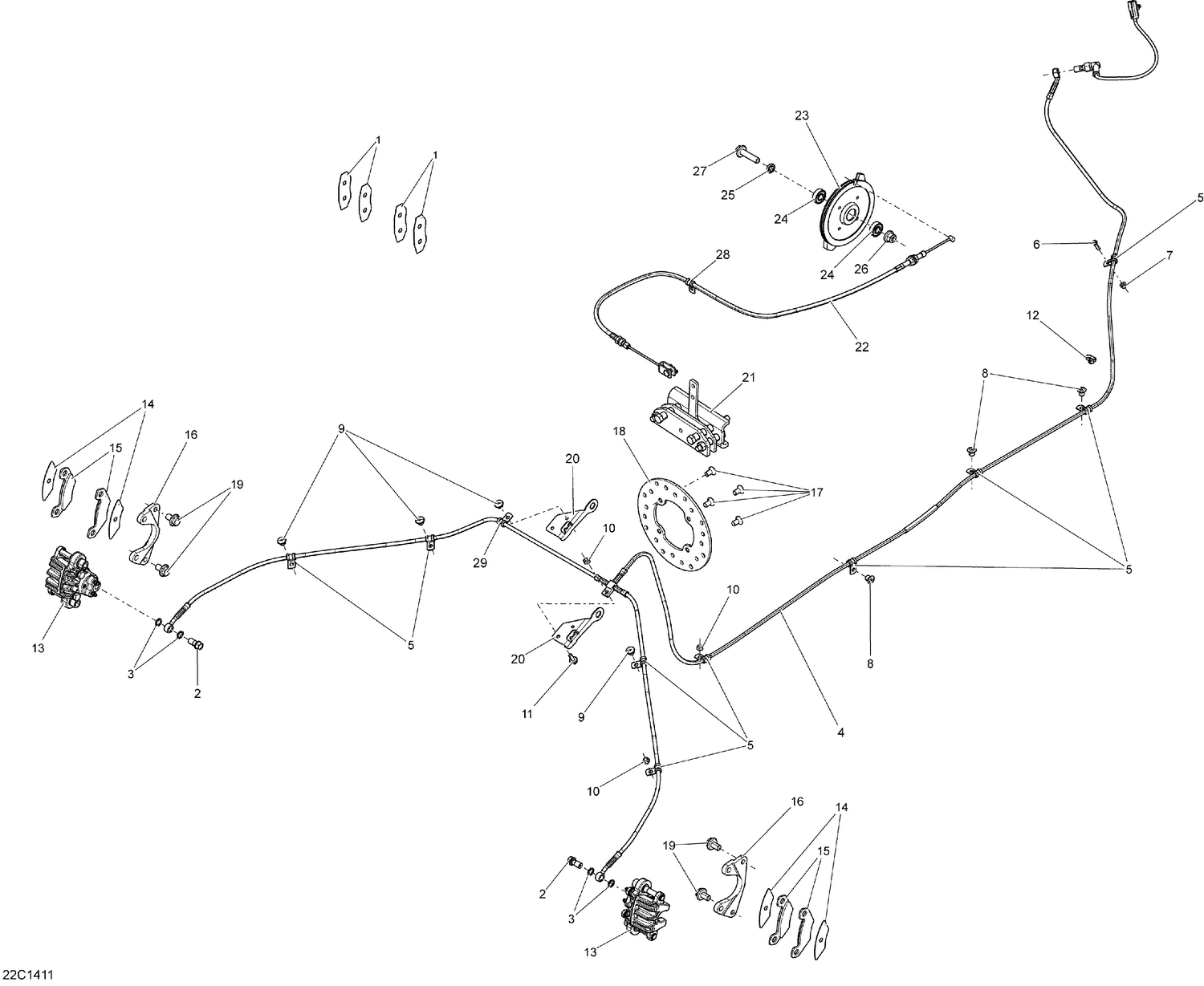

06- Brakes _22C1411
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 705601232 | BRAKE SHIM KIT - Call your local BRP dealership |
| 2 | 705600628 | Banjo Bolt |
| 3 | 705601628 | Copper Washer This part replaces 705600310. |
| 5 | 293650256 | Clamp This part replaces 705600459. |
| 6 | 210251650 | Hex. Forming Screw M5 X 16 This part replaces 210251680. |
| 7 | 233251494 | Elastic Flange Nut M5 |
| 8 | 293150123 | Pop Rivet 3/16" |
| 9 | 390402200 | Pop Rivet 3/16" |
| 10 | 232561434 | Elastic Stop Nut M6 |
| 11 | 207661644 | Hex. Flange Screw M6 X 16 |
| 12 | 414115200 | Tie-Rap 180 mm |
| 15 | 705600711 | Brake Pad Kit |
| 16 | 705601057 | Rear Caliper Support |
| 17 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 18 | 705600604 | Disk Brake |
| 19 | 250000060 | Flange Screw M10 X 16, Scotch Grip |
| 20 | 705601111 | Bracket |
| 21 | 705601112 | CALIPER - Call your local BRP dealership |
| 22 | 705601071 | BRAKE CABLE - Call your local BRP dealership |
| 24 | 705600458 | Bearing |
| 25 | 293900087 | Bushing |
| 26 | 233201436 | Hex. Flange Elastic Nut M10 |
| 27 | 207604044 | Hex. Flange Screw M10 X 40 |
| 28 | 293650256 | Clamp This part replaces 705600459. |
