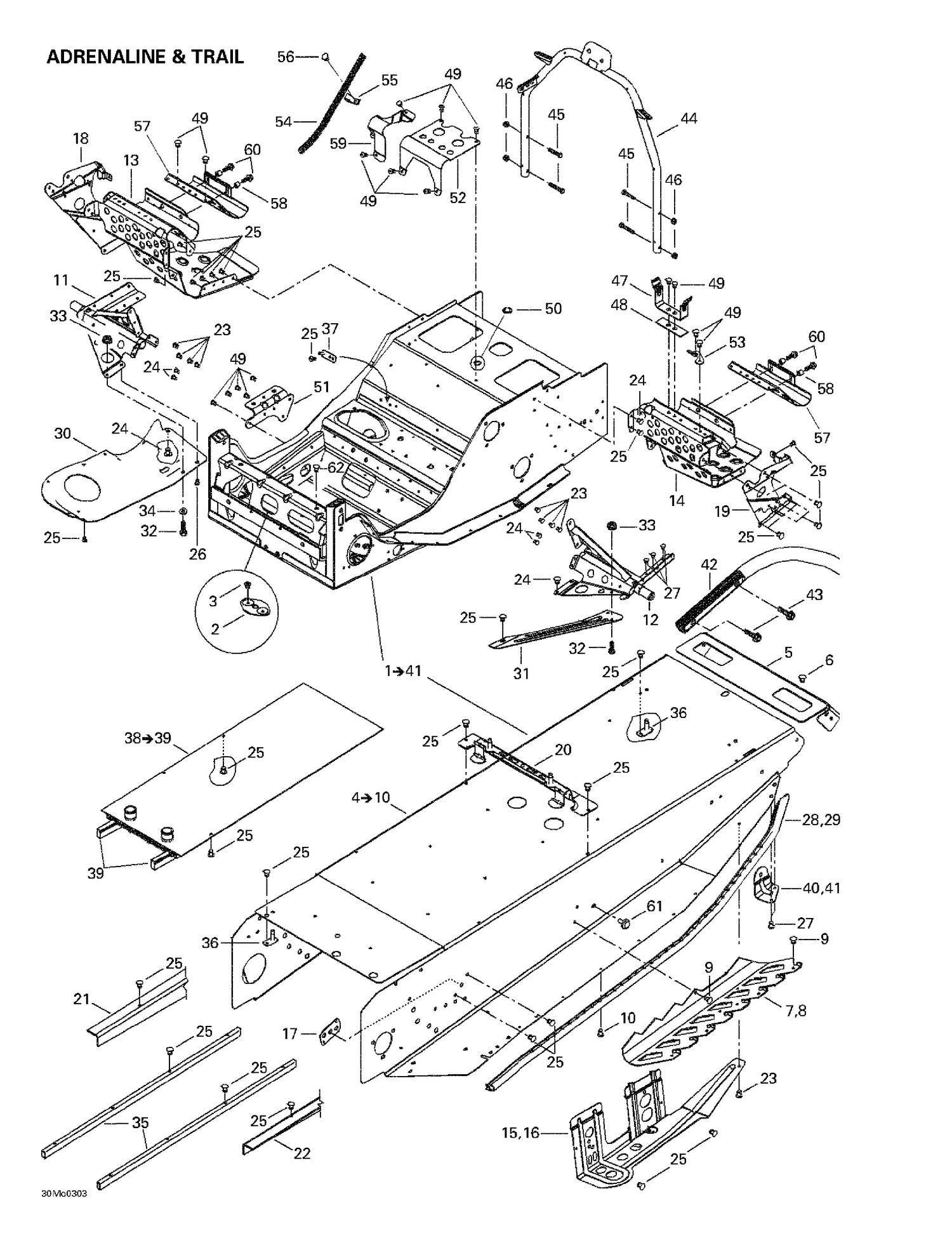

09- Frame (Adrenaline And Trail)
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 518201307 | Plate Bracket |
| 3 | 390402200 | Pop Rivet 3/16" |
| 5 | 518321303 | REAR CAP - Call your local BRP dealership |
| 6 | 390402200 | Pop Rivet 3/16" |
| 7 | 518322697 | RH Liner |
| 8 | 518322698 | LH Liner |
| 9 | 390402200 | Pop Rivet 3/16" |
| 10 | 390402400 | Pop Rivet 3/16" |
| 11 | 518322845 | RH Foot Support |
| 12 | 518322848 | LH Foot Support |
| 13 | 518323253 | RH Footrest |
| 14 | 518323254 | LH Footrest |
| 15 | 518323442 | RH Bracket |
| 16 | 518323444 | LH Bracket |
| 17 | 518201321 | REINFORCEMENT PLATE - Call your local BRP dealership |
| 18 | 518322059 | RH Footrest Reinforcement |
| 19 | 518322063 | LH Footrest Reinforcement |
| 20 | 518321510 | FUEL TANK BRACKET - Call your local BRP dealership |
| 21 | 518322593 | RH Frame Reinforcement |
| 22 | 518322594 | LH Frame Reinforcement |
| 23 | 390909200 | Avex Rivet |
| 24 | 390909100 | Avex Rivet |
| 25 | 390402200 | Pop Rivet 3/16" |
| 26 | 390402300 | Pop Rivet 3/16" |
| 27 | 390402400 | Pop Rivet 3/16" |
| 31 | 518322119 | LH REINFORCEMENT PLATE - Call your local BRP dealership |
| 32 | 207152044 | Hex. Screw M5 X 20 |
| 33 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 34 | 250200081 | FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 35 | 518323390 | Frame Protection |
| 36 | 518323321 | Seat Bracket |
| 37 | 518323173 | Double Bracket |
| 39 | 518321655 | Radiator Protector |
| 40 | 518322808 | RH Reinforcement |
| 41 | 518322810 | LH Reinforcement |
| 42 | 518322888 | Rear Bumper |
| 43 | 207682044 | Hex. Flange Screw M8 X 20 |
| 44 | 518322755 | Handle Support |
| 45 | 207664044 | Hex. Flange Screw M6 X 40 |
| 46 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 47 | 518202100 | Belt Guard Bracket |
| 48 | 518207500 | REINFORCEMENT - Call your local BRP dealership |
| 49 | 390402200 | Pop Rivet 3/16" |
| 50 | 414859400 | CAP - Call your local BRP dealership |
| 51 | 518322635 | Muffler Support |
| 52 | 518310400 | AIR INTAKE SUPPORT - Call your local BRP dealership |
| 53 | 518322031 | TOOL KIT BRACKET - Call your local BRP dealership |
| 54 | 518321569 | ROPE GUIDE - Call your local BRP dealership |
| 55 | 518321570 | Open Clamp |
| 56 | 293150103 | Pop Rivet 3/16" |
| 57 | 518323504 | Toe-Hold |
| 58 | 293450275 | Insert This part replaces 415107300. |
| 59 | 518322699 | Hose Support |
| 60 | 207661644 | Hex. Flange Screw M6 X 16 |
| 61 | 518321954 | Panel Fastener |
