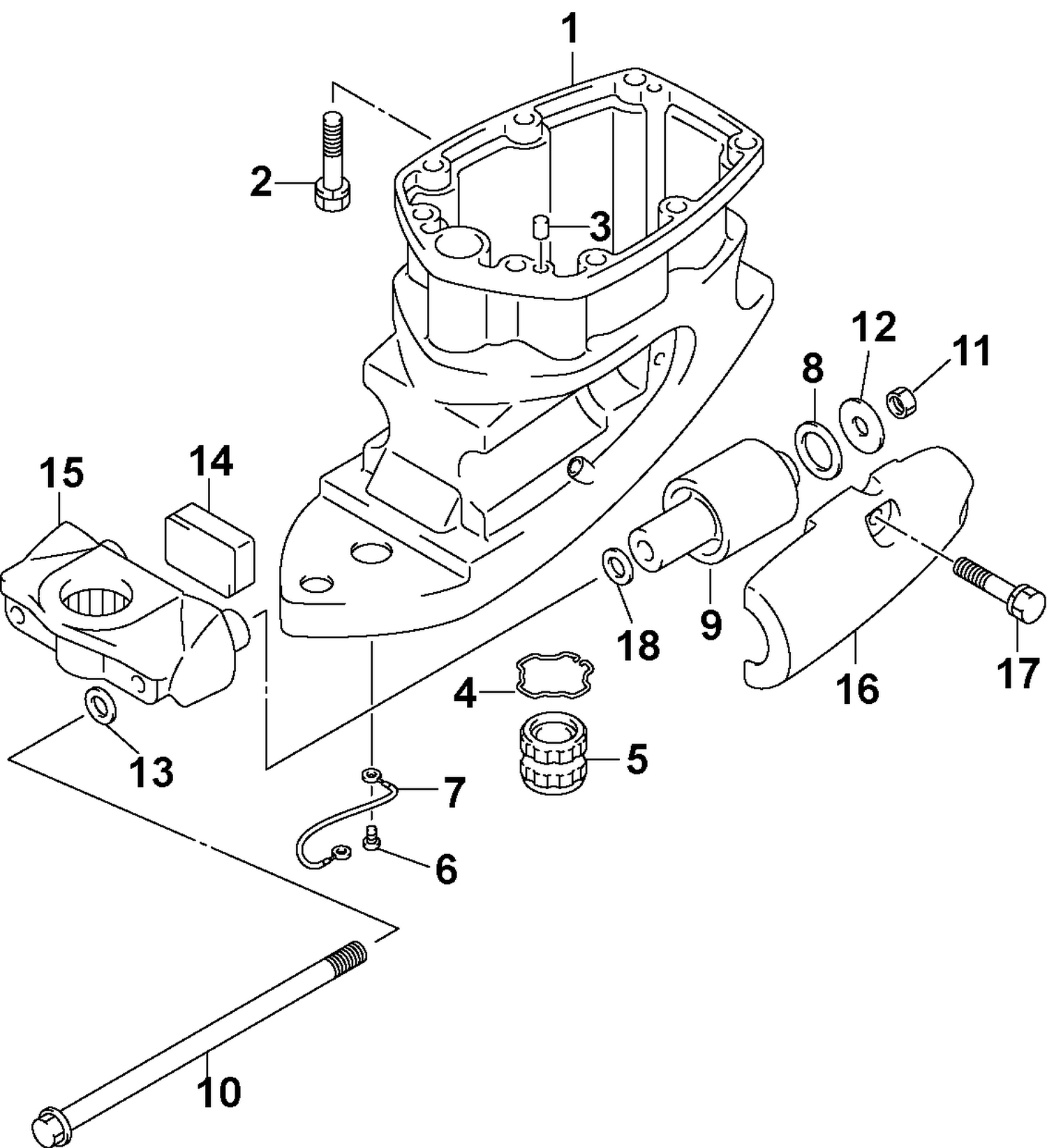

DRIVESHAFT HOUSING
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 2 | *5035792 | BOLT, (10X45mm) This part replaces *5030399. |
| 3 | 5030511 | PIN |
| 6 | 5030409 | SCREW |
| 7 | 5033157 | FIL (PIVOTANT VERS SUPPORT) (210mm) |
| 8 | 5030885 | DAMPER, REVERSE STOP LWR |
| 9 | 5033944 | MOUNT, LOWER |
| 10 | 5033583 | BOLT (12X231mm) |
| 11 | 5031221 | NUT |
| 12 | 5030437 | WASHER |
| 14 | 5033843 | MOUNT, LOWER THRUST |
| 15 | 5033563 | BRACKET |
| 16 | 5033564 | COVER, LOWER MOUNT |
| 17 | *5035792 | BOLT, (10X45mm) This part replaces *5030399. |
