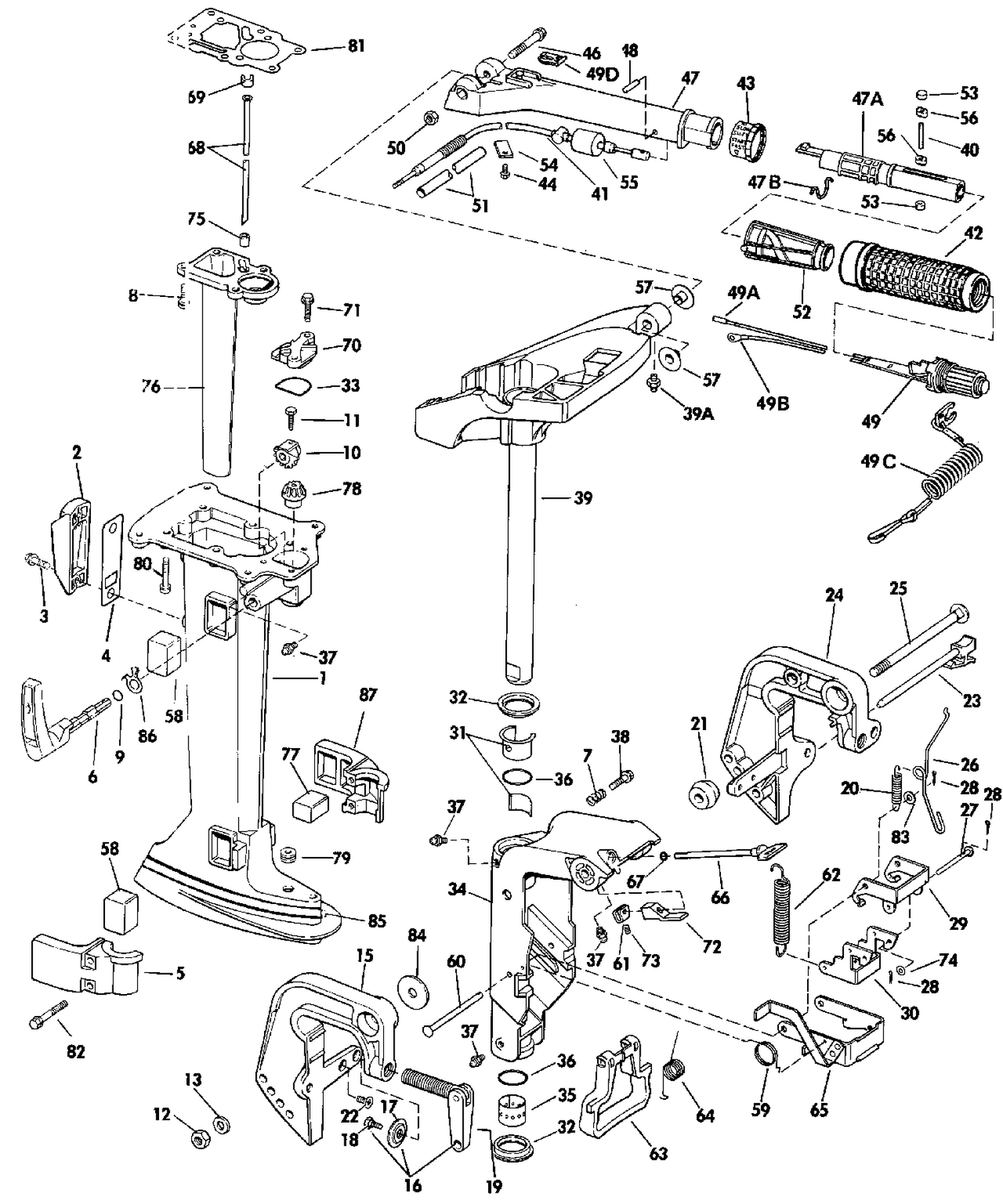

| Ref | Part Number | Description |
|---|
| 1 |
0431967 |
EXHAUST HOUSING ASSY. |
| 2 |
0432016 |
MUFFLER ASSEMBLY |
| 3 |
0334256 |
SCREW, Muffler |
| 4 |
0334278 |
GASKET, Muffler |
| 5 |
0324597 |
BRACKET, Lower mount, stbd. |
| 6 |
0397702 |
HANDLE, Gearshift |
| 10 |
0324608 |
GEAR, Shift, shaft |
| 11 |
0327794 |
SCREW, Base to carburetor |
| 13 |
0312874 |
SPRING WASHER, Strg. handle |
| 15 |
0329910 |
STERN BRACKET ASSY., Stbd. This part replaces 0394163. |
| 16 |
0391421 |
CLAMP SCREW & HANDLE |
| 16 |
0433675 |
CLAMP SCR. & HAND. ASSY. |
| 20 |
0202021 |
SPRING, Link to shallow water drive |
| 21 |
0301983 |
CONICAK WASHER,Stern brkt |
| 22 |
0901889 |
SCREW |
| 23 |
0432453 |
KNOB & TILT PIN ASSY. |
| 24 |
0329909 |
STERN BRKT. ASSY., Port This part replaces 0394162. |
| 25 |
0328008 |
BOLT, Tilt shaft |
| 26 |
0324588 |
LINK , Reverse lock arm |
| 27 |
0324582 |
PIN, Link locking lever |
| 29 |
0324580 |
LINK, Reverse lock |
| 30 |
0324581 |
LEVER, Reverse lock |
| 31 |
0392319 |
FRICTION PLATE, Pad & bushing |
| 32 |
0324576 |
WASHER, Thrust, seal & pivot tube |
| 34 |
0434024 |
SWIVEL BRACKET Assy This part replaces 0394568. |
| 35 |
0334360 |
BUSHING, Lower, swivel bracket |
| 38 |
0324603 |
SCREW, Cover to base |
| 39 |
0394059 |
STEERING BRACKET |
| 41 |
0397003 |
THROTTLE CABLE ASSY |
| 42 |
0433657 |
GRIP ASSY |
| 44 |
0909676 |
SCREW |
| 46 |
0324602 |
VIS, barre |
| 47 |
0398736 |
HANDLE, Steering |
| 49 |
0398692 |
IDLE STOP SWITCH ASSY. This part replaces 0583974. |
| 52 |
0329882 |
GRIP&HELIX AY |
| 54 |
0324952 |
CLAMP |
| 57 |
0335426 |
BUSHING, Handle to bracket |
| 58 |
0318997 |
LATERAL MOUNT, Lower |
| 59 |
0324355 |
SPRING, Shallow water drive |
| 60 |
0324583 |
PIN, Reverse lock |
| 61 |
0324586 |
LEVER, Reverse lock release |
| 62 |
0324591 |
SPRING, Carrying handle |
| 63 |
0394907 |
CARRYING HANDLE |
| 65 |
0391317 |
LINK, Shallow water drive |
| 66 |
0434050 |
TILT KNOB KIT This part replaces 0394598. |
| 68 |
0324600 |
WATER TUBE, Std |
| 68 |
0324601 |
WASHER TUBE, Long |
| 69 |
0324604 |
RETAINER, Water tube |
| 70 |
0324610 |
COVER, Exhaust housing |
| 72 |
0324584 |
SPACER, Reverse lock release |
| 73 |
0324967 |
VIS |
| 75 |
0323286 |
GROMMET, Water tube |
| 76 |
0335276 |
EXHAUST TUBE, Inner |
| 77 |
0326302 |
START BUTTON, Inner This part replaces 0324968. |
| 78 |
0324607 |
PINION, Shift rod |
| 79 |
0552360 |
PASSE-FILS, tige de commande de sens de marche |
| 81 |
0324611 |
GASKET, Exhaust housing |
| 82 |
0325115 |
SCREW, Oil tank/EMM mount |
| 83 |
0303887 |
WASHEER, Pin to swivel bracket |
| 84 |
0304278 |
WASHER |
| 85 |
0211387 |
DECAL Exh. hsg., Ev. |
| 85 |
0332321 |
DECAL, Exhaust hsg., Jo |
| 86 |
0332661 |
SPRING, Shift detent |
