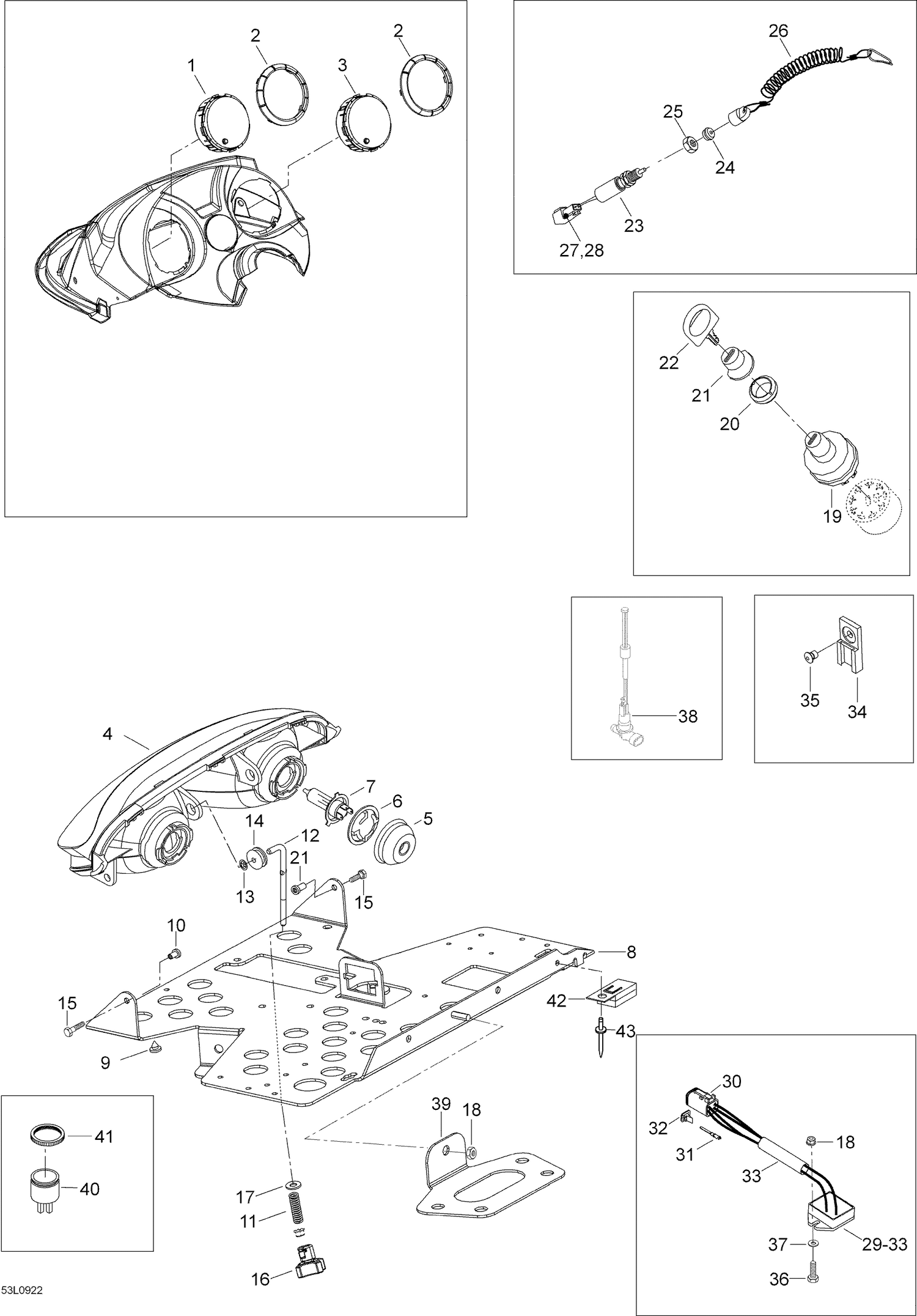

| Ref | Part Number | Description |
|---|
| 1 |
515176476 |
SPEEDOMETER - Call your local BRP dealership |
| 2 |
515179005 |
Gauge Ring This part replaces 515176242. |
| 3 |
515176478 |
TACHOMETER - Call your local BRP dealership |
| 5 |
515175911 |
COVER - Call your local BRP dealership |
| 6 |
515176385 |
BULB HOLDER - Call your local BRP dealership |
| 7 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 8 |
605354748 |
Stöd, halogenlampa |
| 9 |
605452114 |
Plug |
| 10 |
250100018 |
NUT M5 - Call your local BRP dealership |
| 11 |
415100600 |
SPRING - Call your local BRP dealership |
| 12 |
517295800 |
ADJUSTER ROD - Call your local BRP dealership |
| 13 |
732610072 |
Push Nut |
| 14 |
415100800 |
Grommet - Call your local BRP dealership |
| 15 |
40231 |
Hex. screw M5 x 30 |
| 16 |
515175975 |
HANDLE - Call your local BRP dealership |
| 17 |
20003 |
Fjäder bricka A6,4 |
| 18 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 19 |
515176548 |
IGNITION SWITCH - Call your local BRP dealership |
| 20 |
410112100 |
FACE NUT - Call your local BRP dealership |
| 21 |
570013700 |
Suukappale, virtalukko |
| 22 |
415129350 |
BLANK KEY - Call your local BRP dealership This part replaces 414991700. |
| 23 |
515175653 |
Brake Switch |
| 24 |
570151100 |
Plunger Cap |
| 26 |
515178283 |
Cap Ass'y This part replaces 515176463. |
| 27 |
605642628 |
CONNECTOR - Call your local BRP dealership |
| 28 |
42608 |
Connector housing (2 circuits) |
| 30 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 31 |
515175568 |
Female terminal |
| 32 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 33 |
710000497 |
PROTECTOR TUBE, 9 MM - Call your local BRP dealership |
| 34 |
270000141 |
Clip This part replaces 515175917. |
| 35 |
36005 |
RIVET 4.8X12 AL BLACK,(1 PAC <=> 50 PC) |
| 36 |
40031 |
Hex. screw M6 x 25 |
| 37 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 38 |
605452095 |
OIL SENSOR - Call your local BRP dealership |
| 39 |
605454122 |
Lamppulevyn kiinnike |
| 40 |
515176035 |
HORN - Call your local BRP dealership |
| 41 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 42 |
42272 |
Support, fuse housing |
