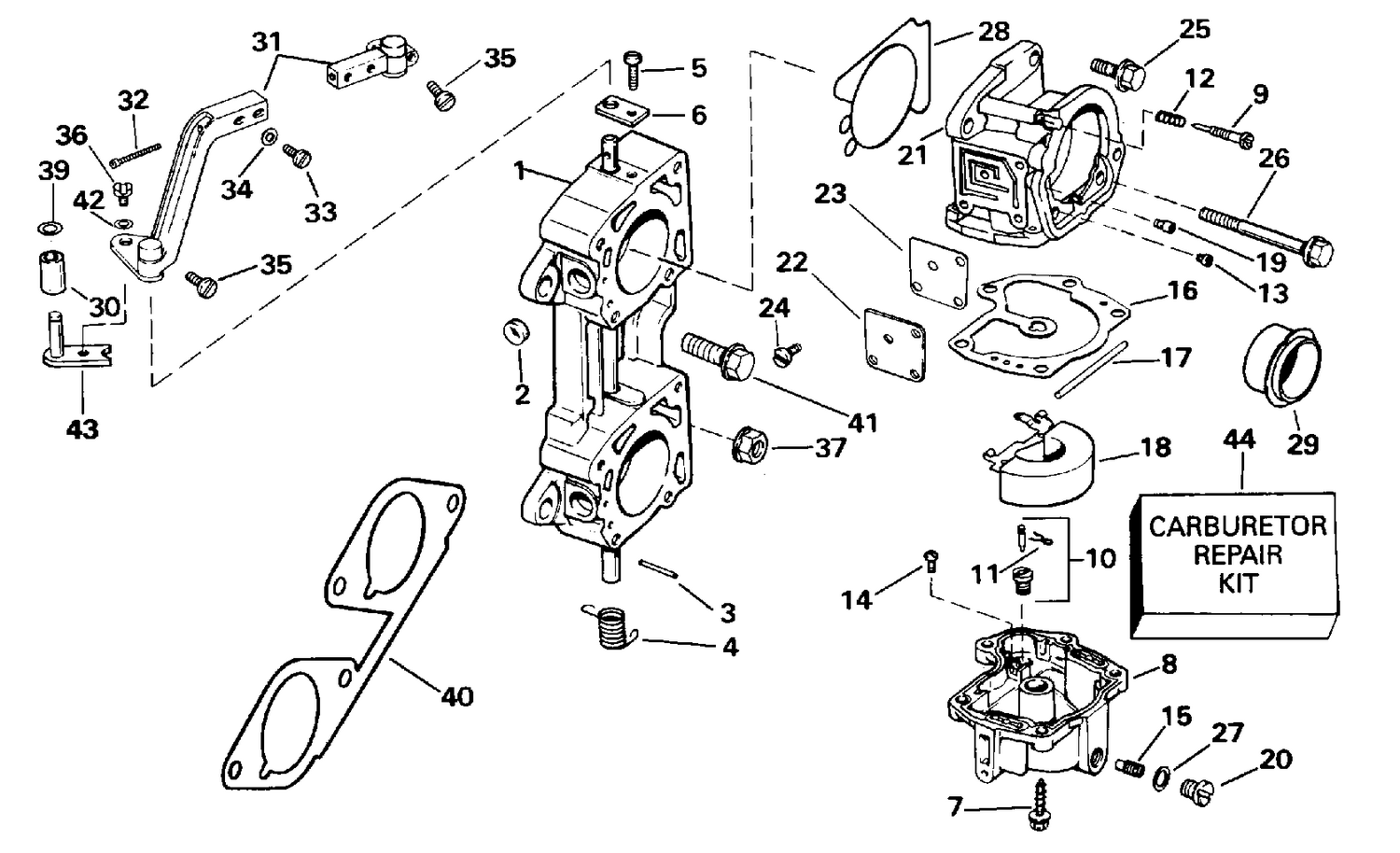

| Ref | Part Number | Description |
|---|
| 1 |
0436934 |
THROTTLE BODY ASSY. |
| 9 |
0341300 |
NEEDLE VALVE |
| 11 |
0336842 |
CLIP, SPRING |
| 12 |
0340001 |
SPRING, Needle valve |
| 15 |
0327560 |
ORIFICE, High speed No. 75D |
| 21 |
0436950 |
CARB. BODY ASSY. |
| 22 |
0335647 |
COVER PLATE |
| 23 |
0335648 |
GASKET, Cover plate |
| 26 |
0335223 |
VIS, poignée vers capot bâbord/tribord |
| 28 |
0332253 |
REAL,Carb. body, 300 |
| 30 |
0432639 |
GALET, contre-came |
| 31 |
0435908 |
LINK, Carburetor |
| 32 |
0335229 |
SCREW, Bracket to crkc. cover This part replaces 0337540. |
| 35 |
0339286 |
SCREW, Belcrank |
| 36 |
0335739 |
SCREW, Conn. brkt. to mntg. brkt. |
| 37 |
0316355 |
BUT, Carburetor mounting This part replaces 0315204. |
| 39 |
0324678 |
JOINT TORIQUE Galet de came de papillon |
| 40 |
0332319 |
GASKET, Carburetor mounting |
| 43 |
0432640 |
LEVER & PIN, Cam follower |
| 0437722 |
0437722 |
CARBURETOR ASSY. |
