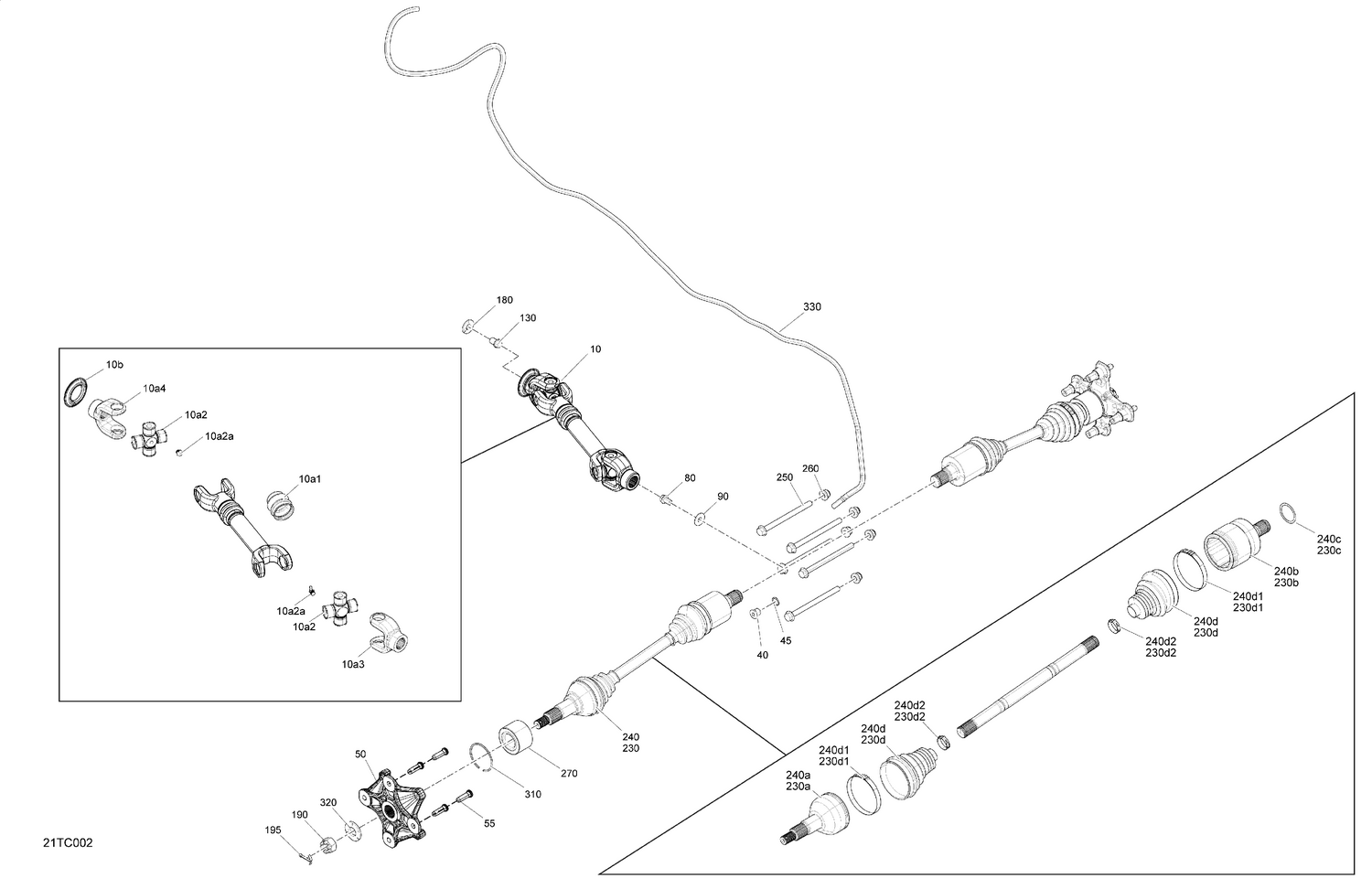

04- Drive - Rear - Common Parts
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 10a1 | 715900118 | Rubber Boot |
| 10a2a | 715900295 | Grease Fitting |
| 10a3 | 715900499 | Yoke |
| 10a4 | 715900438 | Yoke |
| 10b | 705501123 | Protector |
| 40 | 705500504 | Fill Level Plug |
| 45 | 705500506 | Copper Washer |
| 50 | 705503257 | Wheel Hub |
| 55 | 250300055 | Wheel Stud M10 X 1.25 |
| 80 | 250001044 | Hex. Flange Screw M10 X 16 S.GRIP |
| 90 | 250200014 | Flat Washer M10 |
| 130 | 250001039 | Hex Flange Screw M12 X 16 |
| 180 | 250200005 | Conical Spring Washer M12 |
| 190 | 232291413 | Hex. Flange Castellated Nut M18 |
| 195 | 250400071 | Cotter Pin |
| 230a | 705501776 | JOINT_CV EXT - Call your local BRP dealership |
| 230b | 705501780 | PLUNGING JOINT - Call your local BRP dealership |
| 230c | 705501781 | Circlip |
| 230d1 | 715900241 | Oetiker Clamp, 82.1 mm |
| 230d2 | 715900242 | Oetiker Clamp, 27.3 mm |
| 240a | 705501776 | JOINT_CV EXT - Call your local BRP dealership |
| 240b | 705501780 | PLUNGING JOINT - Call your local BRP dealership |
| 240c | 705501781 | Circlip |
| 240d1 | 715900241 | Oetiker Clamp, 82.1 mm |
| 240d2 | 715900242 | Oetiker Clamp, 27.3 mm |
| 250 | 250001041 | Hex. Flange Screw M10 X 135 |
| 260 | 233201436 | Hex. Flange Elastic Nut M10 |
| 270 | 293350150 | Ball Bearing |
| 310 | 293370019 | Circlip |
| 320 | 250200171 | Conical Spring Washer M18 |
