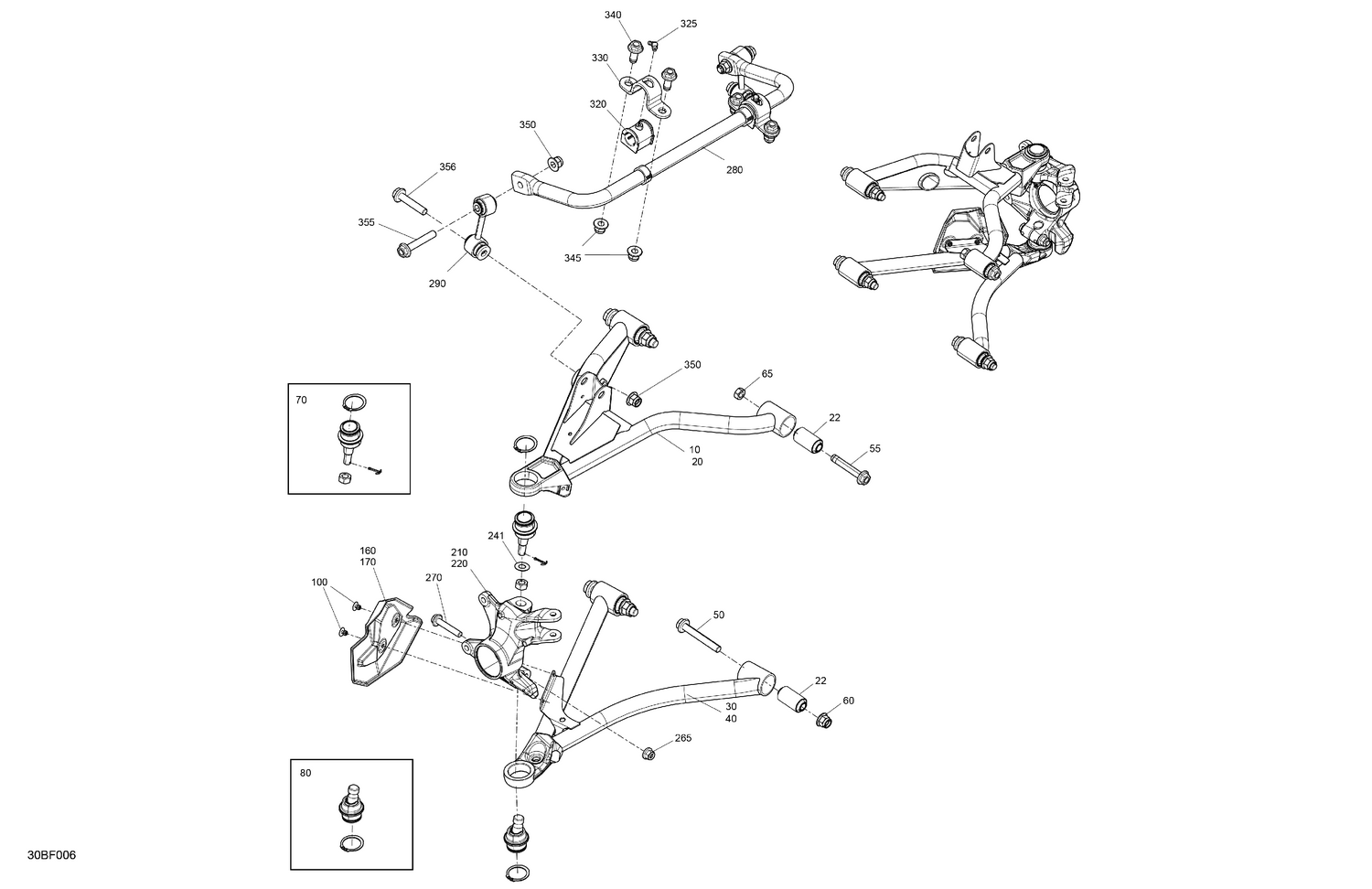

05- Suspension - Front Components

05- Suspension - Front Components

Parts (28)

RefPart NumberDescription
10 715010747 LH Upper Suspension Arm Balljoint Bushing Ass'y This part replaces 706203892.
20 715010756 RH Upper Suspension Arm Balljoint Bushing Ass'y This part replaces 706203893.
22 706004828 Suspension Arm Bushing
30 715010765 LH Lower Suspension Arm Balljoint Bushing Ass'y This part replaces 706203904.
40 715010772 RH Lower Suspension Arm Balljoint Bushing Ass'y This part replaces 706203905.
50 250001168 Hex. Flange Screw M12X1.75X85
55 250001168 Hex. Flange Screw M12X1.75X85
60 250001195 Elastic Flange Nut M12
65 250001195 Elastic Flange Nut M12
70 703501263 Ball Joint With Circlip Pin Kit
80 703501262 Ball Joint Kit With Circlip
100 293150292 Black, Pop Rivet 3/16 X ,550
160 706202135 RH CV joint Guard
170 706202134 LH CV joint Guard
210 706202842 LH Front Knuckle
220 706202844 RH Front Knuckle
241 706200281 Hardened Washer
265 233201436 Hex. Flange Elastic Nut M10 This part replaces 233201416.
270 207605546 Hex. Flange Screw M10 X 55
280 706202846 Sway Bar Ass'y
290 706202937 Sway Bar Double Link
320 706204414 Stabilizer Bar Bushing
325 293550085 Grease Elbow Fitting
330 706203437 Clamp
340 250000951 Hex. Flange Screw DIN.6921
345 250001195 Elastic Flange Nut M12
350 250001195 Elastic Flange Nut M12
355 250000858 Hex. Flange Screw M12 X 70
