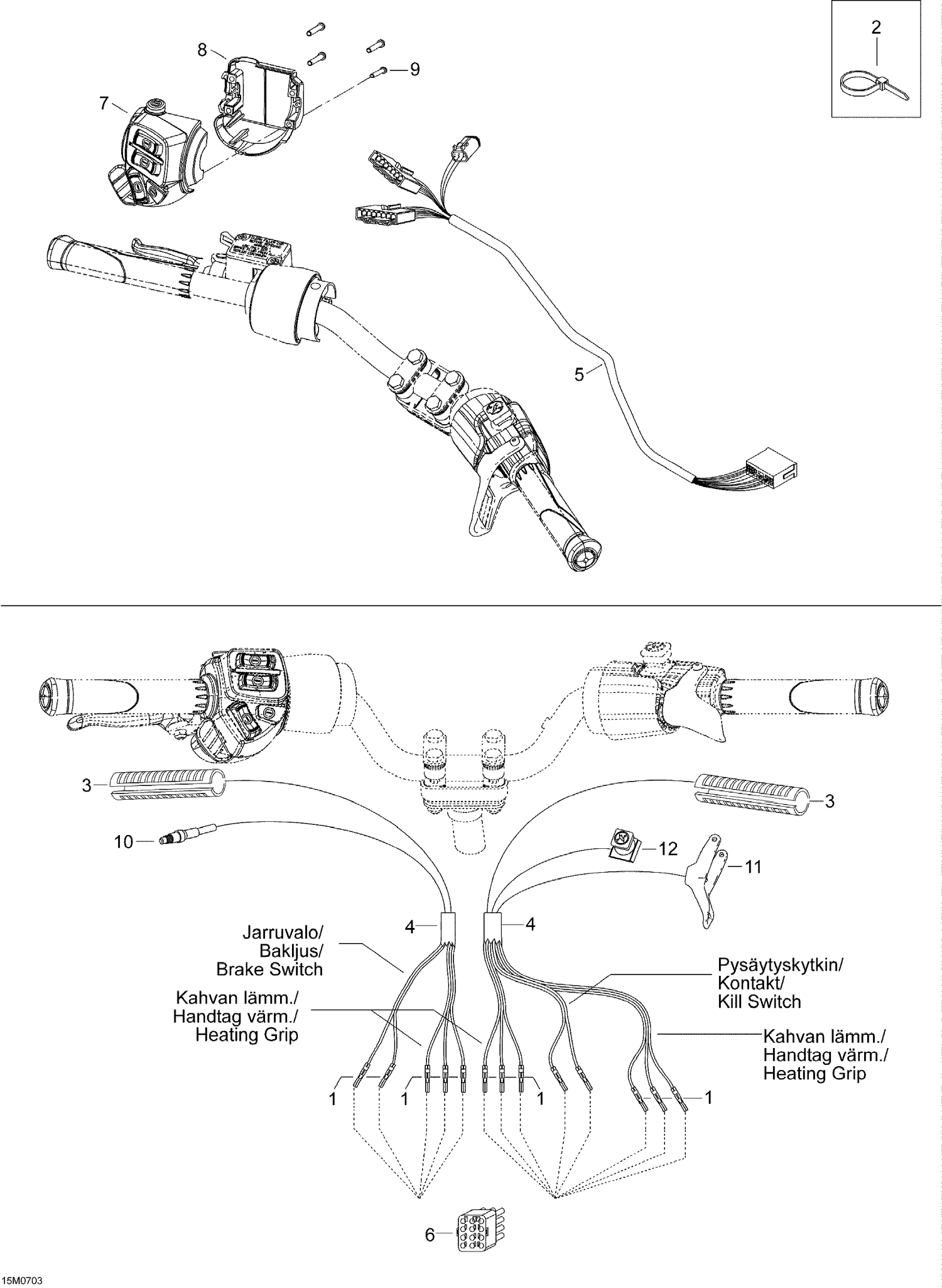

| Ref | Part Number | Description |
|---|
| 1 |
605642628 |
CONNECTOR - Call your local BRP dealership |
| 2 |
414115200 |
Tie-Rap 180 mm |
| 2 |
M27100 |
Tie Rap 290 Mm |
| 3 |
515175664 |
Heating Grip |
| 4 |
M39023 |
Housing |
| 5 |
605354616 |
STEERING HARNESS ASS'Y - Call your local BRP dealership |
| 6 |
M42617 |
Male Connector Housing |
| 7 |
605356204 |
SWITCH HOUSING LH - Call your local BRP dealership This part replaces 605354729. |
| 8 |
Not |
Available As Spare Part - Switch Housing |
| 9 |
M40903 |
Screw 3.5X25 |
| 10 |
507032366 |
Microswitch |
| 11 |
512059481 |
Throttle Handle |
| 12 |
515175410 |
Kill Switch |
