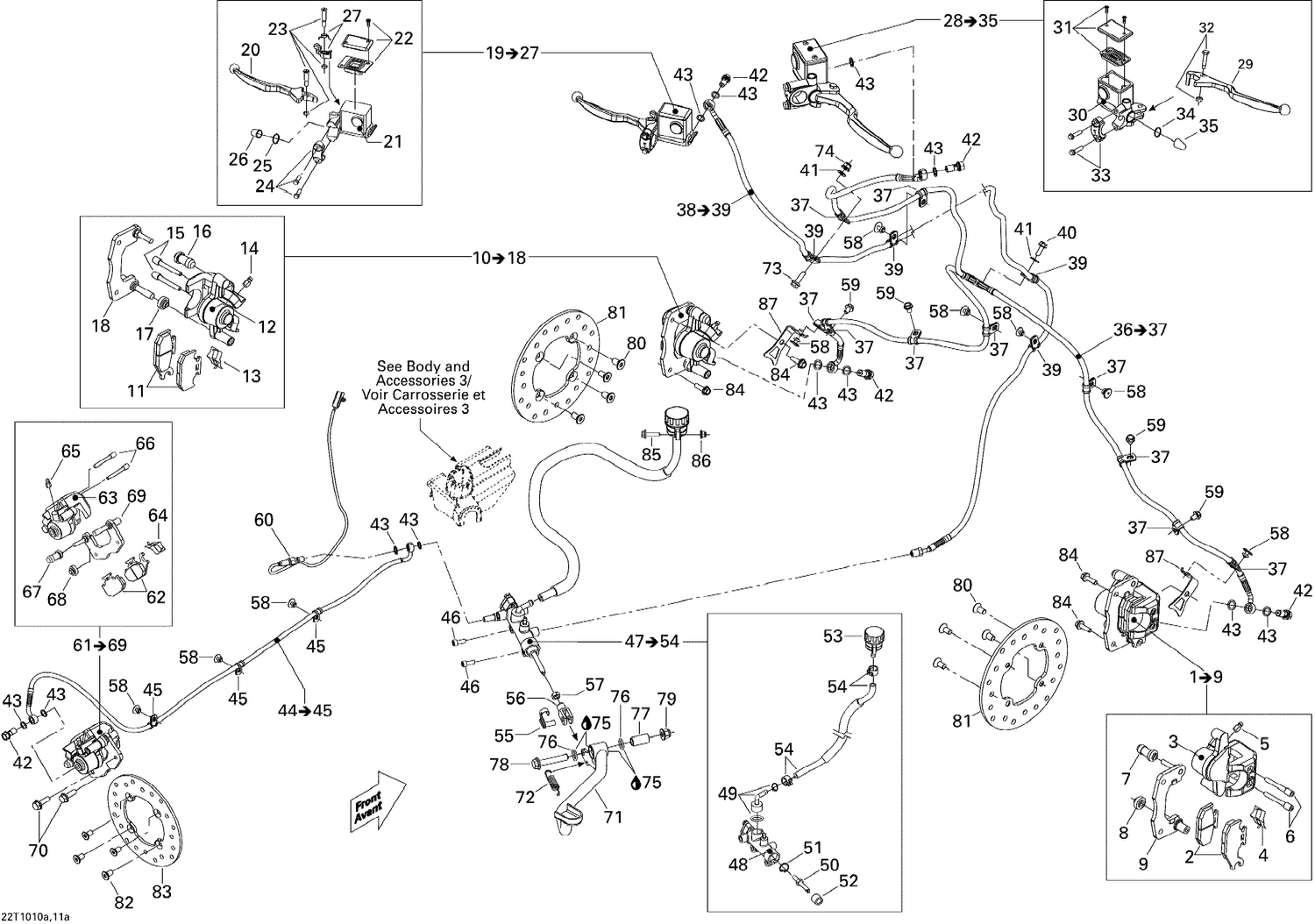

| Ref | Part Number | Description |
|---|
| 2 |
705600004 |
Brake Pad Kit |
| 3 |
705600078 |
Piston Set |
| 4 |
705600079 |
Spring |
| 5 |
705600080 |
Bleeding Screw |
| 6 |
705600081 |
Pin Set (2) |
| 7 |
705600082 |
Compression Boot |
| 8 |
705600083 |
Compression Boot |
| 9 |
Not |
Available As Spare Part - RH Caliper Support |
| 11 |
705600014 |
Brake Pad Kit |
| 12 |
705600078 |
Piston Set |
| 13 |
705600079 |
Spring |
| 14 |
705600080 |
Bleeding Screw |
| 15 |
705600081 |
Pin Set (2) |
| 16 |
705600082 |
Compression Boot |
| 17 |
705600083 |
Compression Boot |
| 18 |
Not |
Available As Spare Part - LH Caliper Support |
| 20 |
705600243 |
Lever Arm |
| 21 |
705600078 |
Piston Set |
| 22 |
705600084 |
Cap Set |
| 23 |
705600246 |
Brake Lever Bolt Kit |
| 24 |
705600087 |
BRACKET KIT - Call your local BRP dealership |
| 25 |
705600088 |
CIRCLIP - Call your local BRP dealership |
| 26 |
705600089 |
COMPRESSION BOOT - Call your local BRP dealership |
| 27 |
705600477 |
PARKING KIT, BRAKE LEVER LOCK - Call your local BRP dealership |
| 29 |
705600629 |
LEVER ARM - Call your local BRP dealership |
| 30 |
705600086 |
SWITCH KIT - Call your local BRP dealership |
| 31 |
705600084 |
Cap Set |
| 32 |
705600085 |
BOLT KIT - Call your local BRP dealership |
| 33 |
705600087 |
BRACKET KIT - Call your local BRP dealership |
| 34 |
705600088 |
CIRCLIP - Call your local BRP dealership |
| 35 |
705600089 |
COMPRESSION BOOT - Call your local BRP dealership |
| 37 |
293650256 |
Clamp This part replaces 705600459. |
| 39 |
293650256 |
Clamp This part replaces 705600459. |
| 40 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 41 |
224061121 |
Flat Washer |
| 42 |
705600609 |
Banjo Bolt (M10 x 1.25 thread) |
| 43 |
705601628 |
Copper Washer This part replaces 705600310. |
| 45 |
293650256 |
Clamp This part replaces 705600459. |
| 46 |
250000136 |
Socket Head Screw M8 X 20, Scotch Grip |
| 48 |
705600255 |
Piston Set |
| 49 |
705600064 |
PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership |
| 50 |
Not |
Available As Spare Part - Rod Ass'y |
| 51 |
705600068 |
Circlip |
| 52 |
705600090 |
Compression Boot |
| 53 |
705600182 |
Oil Tank, Brake Fluid Reservoir |
| 54 |
705600754 |
OIL HOUSING HOSE - Call your local BRP dealership |
| 55 |
219702305 |
Pin Kit This part replaces 250400007. |
| 56 |
705600100 |
Yoke |
| 57 |
232081414 |
Hex. Nut M8 |
| 58 |
390406500 |
Pop Rivet 3/16" |
| 59 |
210261040 |
Hex. Flange Screw M6 X 10 |
| 60 |
705600798 |
Brake Switch |
| 62 |
705600014 |
Brake Pad Kit |
| 63 |
Not |
Available As Spare Part - Piston Set |
| 64 |
705600079 |
Spring |
| 65 |
705600080 |
Bleeding Screw |
| 66 |
705600081 |
Pin Set (2) |
| 67 |
705600082 |
Compression Boot |
| 68 |
705600083 |
Compression Boot |
| 69 |
Not |
Available As Spare Part - LH Caliper Support |
| 70 |
207582544 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 71 |
705601154 |
BRAKE PEDAL, BLACK - Call your local BRP dealership This part replaces 705600784. |
| 72 |
705600792 |
Brake Pedal Spring |
| 73 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 74 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 75 |
293550010 |
Synthetic Grease, 400 G |
| 76 |
293300144 |
O-Ring |
| 77 |
705600815 |
Inner Spacer |
| 78 |
207605544 |
Hex. Flange Screw M10 X 55 |
| 79 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 80 |
235381646 |
Torx Screw M8 X 16, Scotch Grip |
| 81 |
705600604 |
Disk Brake |
| 82 |
235381646 |
Torx Screw M8 X 16, Scotch Grip |
| 83 |
705600604 |
Disk Brake |
| 84 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 85 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 86 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
