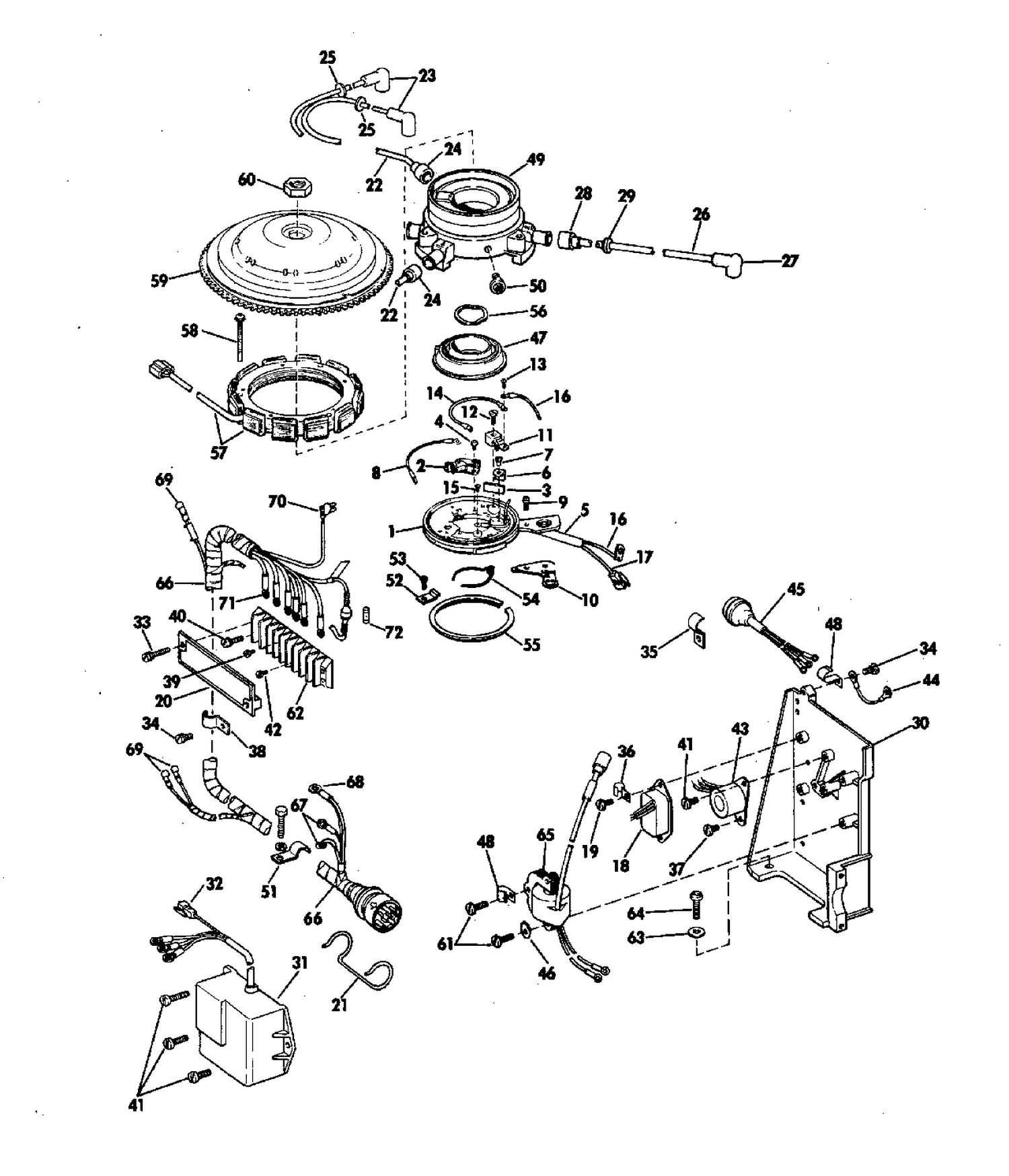

| Ref | Part Number | Description |
|---|
| 1 |
0382752 |
BASE PLATE ASSEMBLY |
| 2 |
0383655 |
BREAKER ASSEMBLY |
| 4 |
0312811 |
SCREW BREAKER TO BASE |
| 5 |
0510857 |
TUBING |
| 6 |
0313585 |
CLIP |
| 7 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 8 |
0580692 |
BREAKER LEAD ASSY |
| 9 |
0306158 |
SCREW, Clamp |
| 10 |
0313733 |
CLAMP, Lead |
| 11 |
0382495 |
CONTACT ASSEMBLY |
| 13 |
0314471 |
SCREW |
| 14 |
0580691 |
LEAD ASSEMBLY |
| 15 |
0314474 |
SCREW |
| 16 |
0580848 |
LEAD ASSEMBLY, Ground |
| 17 |
0580842 |
LEAD ASSEMBLY, Primary |
| 18 |
0580891 |
CLIPPER ASSEMBLY |
| 19 |
0307152 |
SCREW, Cliipper assemlby |
| 20 |
0385165 |
COVER ASSEBMLY |
| 22 |
0382670 |
LEAD ASSEMBLY, Spark plug to dist (#1 & #3) |
| 24 |
0313586 |
CONVER, H. T. lead |
| 25 |
0551426 |
GORMMET |
| 26 |
0382669 |
LEAD ASSEMBLY, Spark plug to dist (#2) |
| 28 |
0313586 |
CONVER, H. T. lead |
| 29 |
0551426 |
GORMMET |
| 30 |
0316471 |
BRACKET |
| 31 |
0580849 |
AMPLIFIER ASSEMBLY |
| 33 |
0307196 |
SCREW, Support to carb |
| 34 |
0315900 |
SCREW, Cable clamp |
| 35 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 37 |
0302948 |
SCREW |
| 38 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 39 |
0315003 |
SCREW, Teminal to terinmal block |
| 40 |
0510397 |
SCREW |
| 41 |
0551706 |
SCREW |
| 42 |
0315003 |
SCREW, Teminal to terinmal block |
| 44 |
0376349 |
FIL, masse |
| 45 |
0383840 |
DIODE & LEAD ASSEMBLY |
| 46 |
0306407 |
LOCCKWASHER,Cover latch |
| 47 |
0382424 |
ROTOR |
| 48 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 49 |
0382479 |
DIST, Cap assy. |
| 51 |
0310947 |
CLAMP |
| 52 |
0314495 |
CLAMP, Distributor base |
| 54 |
0313743 |
RING, Reverse cut off |
| 55 |
0313666 |
RET., Distributor base 1 |
| 56 |
0313667 |
SPR, Washer, flywheel to rotor |
| 57 |
0580744 |
STARTER ASSY, 9 amp |
| 58 |
0313740 |
SCREW, Starter and distributor |
| 59 |
0580783 |
FLYWHEEL & RING GEAR ASSEMBLY |
| 59 |
0580907 |
FLYSHEEL ASSEMBLY |
| 60 |
0329267 |
NUT, Flywheel This part replaces 0314209. |
| 61 |
0551705 |
SCREW, Coil & yoke assembly |
| 62 |
0510871 |
TERMINAL BLOCK |
| 64 |
0302479 |
VIS, démarreur vers bloc cylindres-carter |
| 65 |
0580847 |
COIL ASSEMBLY |
| 66 |
0384050 |
MOTOR CABLE ASSEMBLY |
| 0384091 |
0384091 |
DISTRIB. BASE ASSY., Comp |
