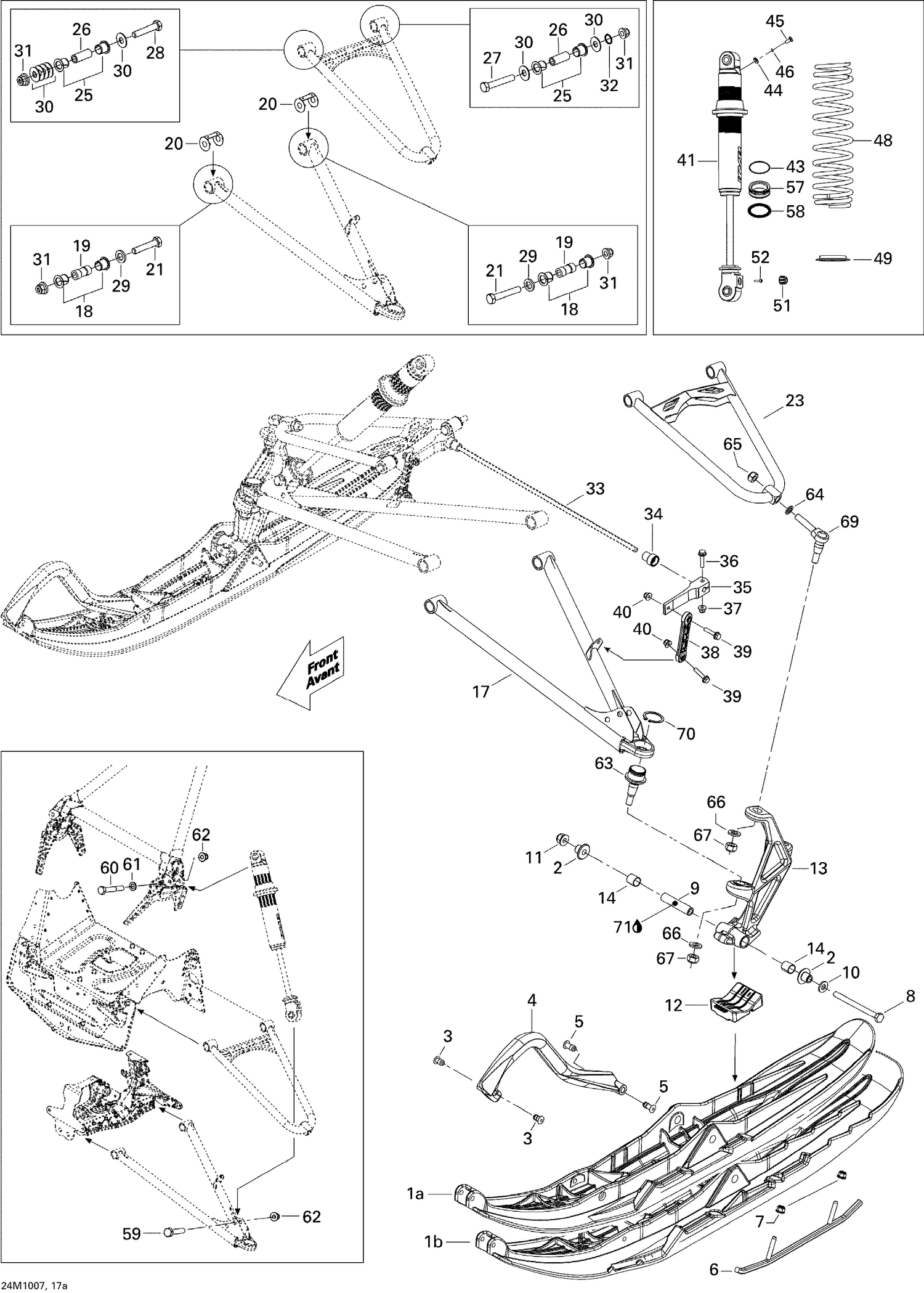

07- Front Suspension And Ski
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 505071781 | Ski Bushing |
| 3 | 505071812 | Retainer 17mm long |
| 5 | 505072133 | Retainer 23mm Long |
| 6 | 860201044 | Carbide Runner Kit (Square Runner) This part replaces 860200141. |
| 7 | 233281414 | Hex. Flange Elastic Nut M8 |
| 8 | 250000703 | Hex. Screw M10 X 130 This part replaces 230003044. |
| 9 | 506133300 | Spacer |
| 10 | 732900049 | Washer |
| 11 | 233201414 | Hex. Flange Elastic Nut M10 |
| 12 | 505071779 | Ski Stopper |
| 13 | 505073007 | Clear, LH Ski Leg This part replaces 505072717. |
| 13 | 505073008 | Clear, RH Ski Leg This part replaces 505072718. |
| 14 | 505072690 | Leg Bushing |
| 17 | 505072664 | Black, RH Lower Arm |
| 17 | 505072665 | Black, LH Lower Arm |
| 18 | 505072208 | Bushing |
| 19 | 505072214 | Bushing |
| 20 | 505072634 | Wear Plate |
| 21 | 250001024 | Screw Hex. M10 X 70 This part replaces 250000291. |
| 23 | 505072374 | Upper Arm |
| 25 | 505072250 | Bushing |
| 26 | 505072143 | Sleeve |
| 27 | 250001023 | Screw Hex. M10 X 60 This part replaces 250000290. |
| 28 | 250001022 | Screw Hex. M10 X 50 This part replaces 250000289. |
| 29 | 503189564 | Washer |
| 30 | 505072392 | Washer |
| 31 | 250100165 | Hex. Flange Elastic Nut M10 This part replaces 250100088. |
| 32 | 505072448 | O-Ring |
| 33 | 505072602 | Stabilisator |
| 34 | 505072064 | Bushing |
| 35 | 505072394 | Stabilisator Lever |
| 36 | 207663046 | Hex. Flange Screw M6 X 30 |
| 37 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 38 | 505072204 | Sway Bar Double Joint Link |
| 39 | 207663046 | Hex. Flange Screw M6 X 30 |
| 40 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 41 | 505072752 | FRONT SHOCK - Call your local BRP dealership |
| 43 | 503189308 | Piston Ring |
| 44 | 505070398 | Air Valve |
| 45 | 505070399 | Screw |
| 46 | 505070400 | O-Ring |
| 48 | 505072741 | Deep Black, Spring |
| 49 | 503194270 | Spring Stopper This part replaces 503192029. |
| 51 | 505072753 | Adjustment Knob |
| 52 | 250000644 | Allen Screw M3 X 0.5 X 10 This part replaces 205031060. |
| 57 | 503189309 | FREE PISTON - Call your local BRP dealership |
| 58 | 414888312 | O-Ring |
| 59 | 207005544 | Hex. Screw M10 X 55 |
| 60 | 207006544 | Hex. Screw M10 X 1.5 X 65 |
| 61 | 503189564 | Washer |
| 62 | 233201414 | Hex. Flange Elastic Nut M10 |
| 63 | 505073636 | Ball Joint This part replaces 505072682. |
| 64 | 503189276 | Washer |
| 65 | 250100089 | Hex. Elastic Hex. Nut M12 |
| 66 | 234021410 | Flat Washer 12 mm |
| 67 | 250100089 | Hex. Elastic Hex. Nut M12 |
| 69 | 505072257 | Upper Ball Joint |
| 70 | 293370035 | Circlip |
