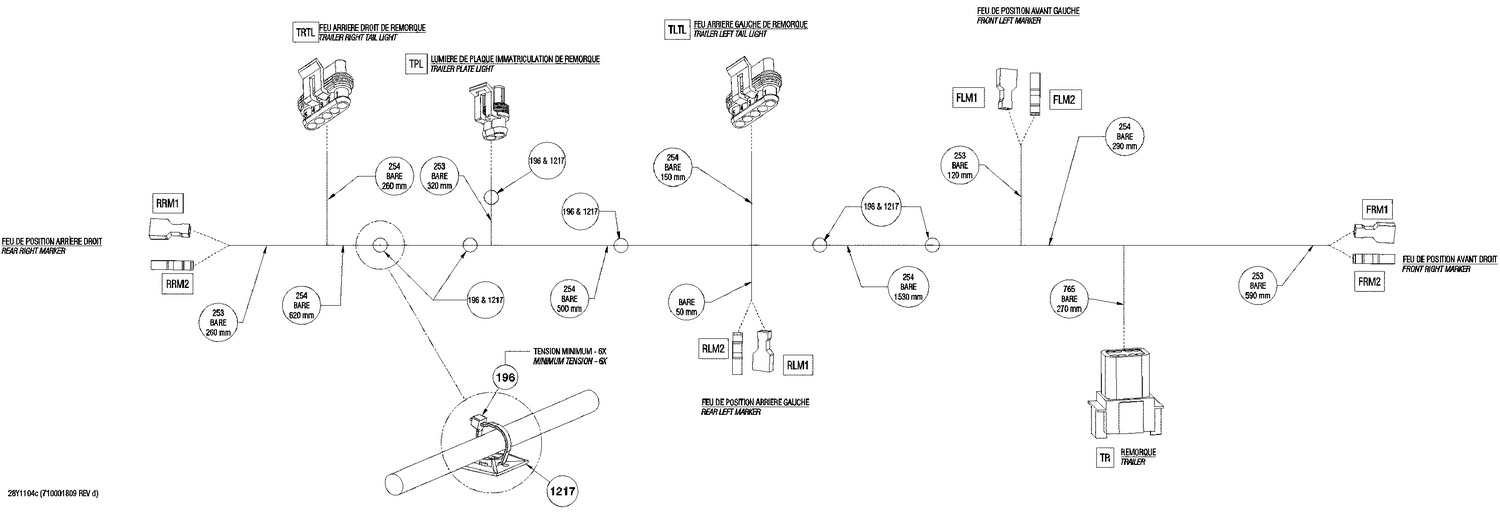

10- Electrical Harness 3, Europe
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| FLM1 | 710002172 | Female Housing |
| FLM2 | 710002171 | Male Housing |
| FRM1 | 710002172 | Female Housing |
| FRM2 | 710002171 | Male Housing |
| RLM1 | 710002172 | Female Housing |
| RLM2 | 710002171 | Male Housing |
| RRM1 | 710002172 | Female Housing |
| RRM2 | 710002171 | Male Housing |
| TLTL | 278001013 | Wire Seal |
| TLTL | 278001014 | Female Terminal |
| TLTL | 710000780 | Connector |
| TPL | 278001013 | Wire Seal |
| TPL | 278001014 | Female Terminal |
| TPL | 409209500 | Female Housing, 2 Circuits |
| TR | 278002379 | MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership |
| TR | 293000052 | Sealing Cap |
| TR | 515175276 | LOCK MALE, 8 CIRCUITS - Call your local BRP dealership |
| TR | 710001348 | Male Terminal |
| TRTL | 278001013 | Wire Seal |
| TRTL | 710000780 | Connector |
| 196 | 219704447 | Was 710000483 Heat Shrink Tubing |
| 253 | 293750002 | Tie Wrap 142 mm |
| 254 | 219704399 | Was 409901700 Tubing (9 mm) |
| 765 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 765 | Not | Available As Spare Part - Adhesive Tape |
| 1154 | Not | Available As Spare Part - Adhesive Cold-Melt |
| 1217 | 293750051 | Tie Rap Mount |
