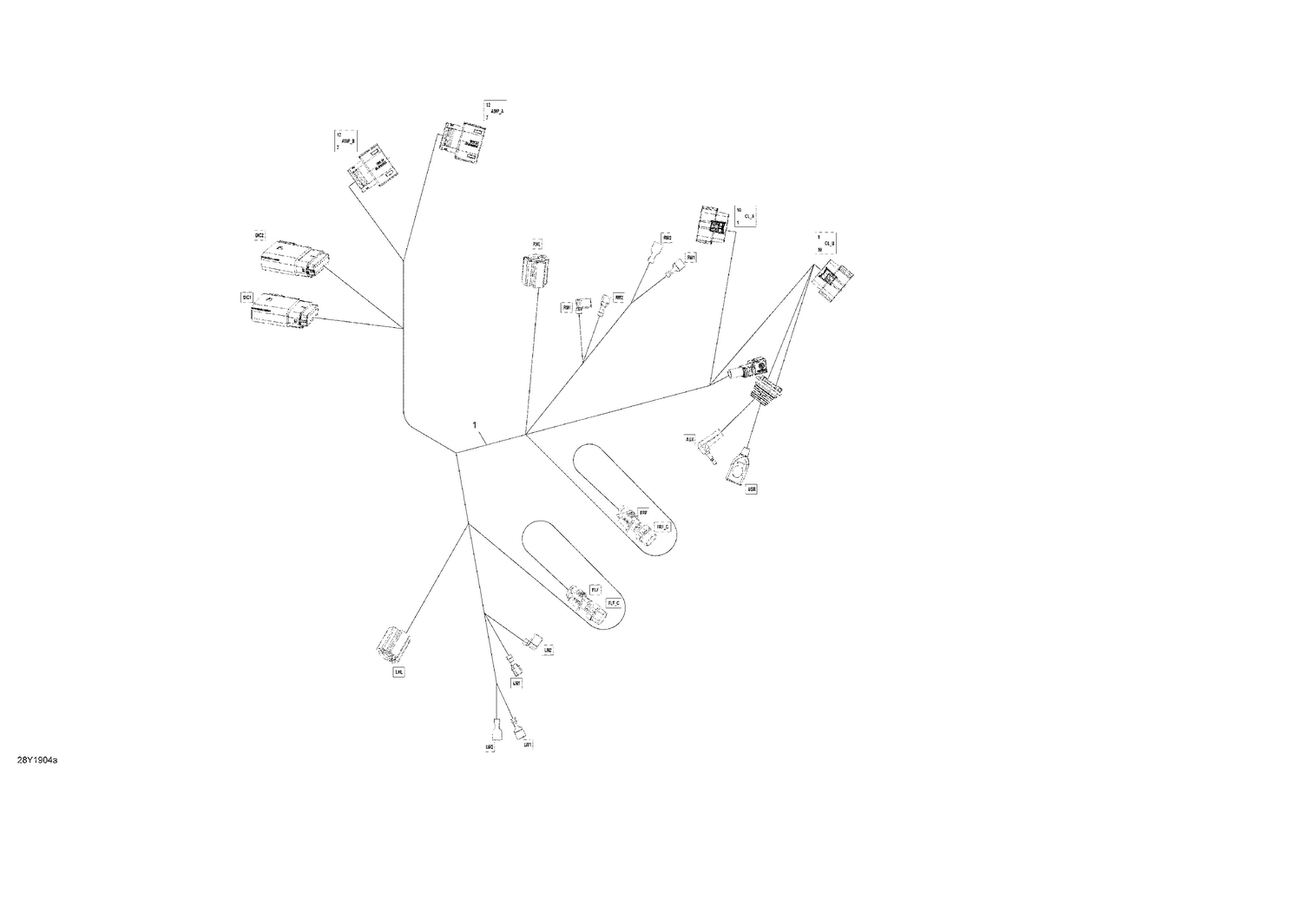

10- Electrical Harness Console 710006486 - Canada/USA
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| AMP_A | 278002860 | Sealing Cap |
| AMP_A | 278002994 | Housing, 12 Circuits |
| AMP_A | 515178349 | Female Terminal 22 AWG |
| AMP_B | 515178349 | Female Terminal 22 AWG |
| AMP_B | 710005905 | Connector Molex Mx150 12pos |
| AUX | 278003492 | Audio Jack |
| CL_A | 278002858 | Female Housing 20 Circuits |
| CL_A | 278002860 | Sealing Cap |
| CL_B | 515178303 | Housing, 20 Circuits |
| CL_B | 515178349 | Female Terminal 22 AWG |
| FLF | 409209500 | Female Housing, 2 Circuits |
| FLF | 515176621 | Wire Seal |
| FLF | 710001340 | Female Terminal |
| FRF | 409209500 | Female Housing, 2 Circuits |
| FRF | 515176621 | Wire Seal |
| FRF | 710001340 | Female Terminal |
| LHL | 515176908 | Female Housing |
| LHL | 515176909 | Terminal |
| LM1 | 710004857 | Female Terminal |
| LM2 | 710002399 | Female Terminal |
| LM2 | 710004835 | Terminal |
| LW1 | 710004857 | Female Terminal |
| LW2 | 409010100 | Female Terminal |
| LW2 | 409010400 | Female Terminal Housing, 1 Circuit |
| RHL | 515176908 | Female Housing |
| RHL | 515176909 | Terminal |
| RM1 | 710004858 | Female Terminal |
| RM2 | 409010100 | Female Terminal |
| RM2 | 409010400 | Female Terminal Housing, 1 Circuit |
| RW1 | 710004857 | Female Terminal |
| RW2 | 409010100 | Female Terminal |
| RW2 | 409010400 | Female Terminal Housing, 1 Circuit |
| 1 | 710006486 | Harness Consol |
