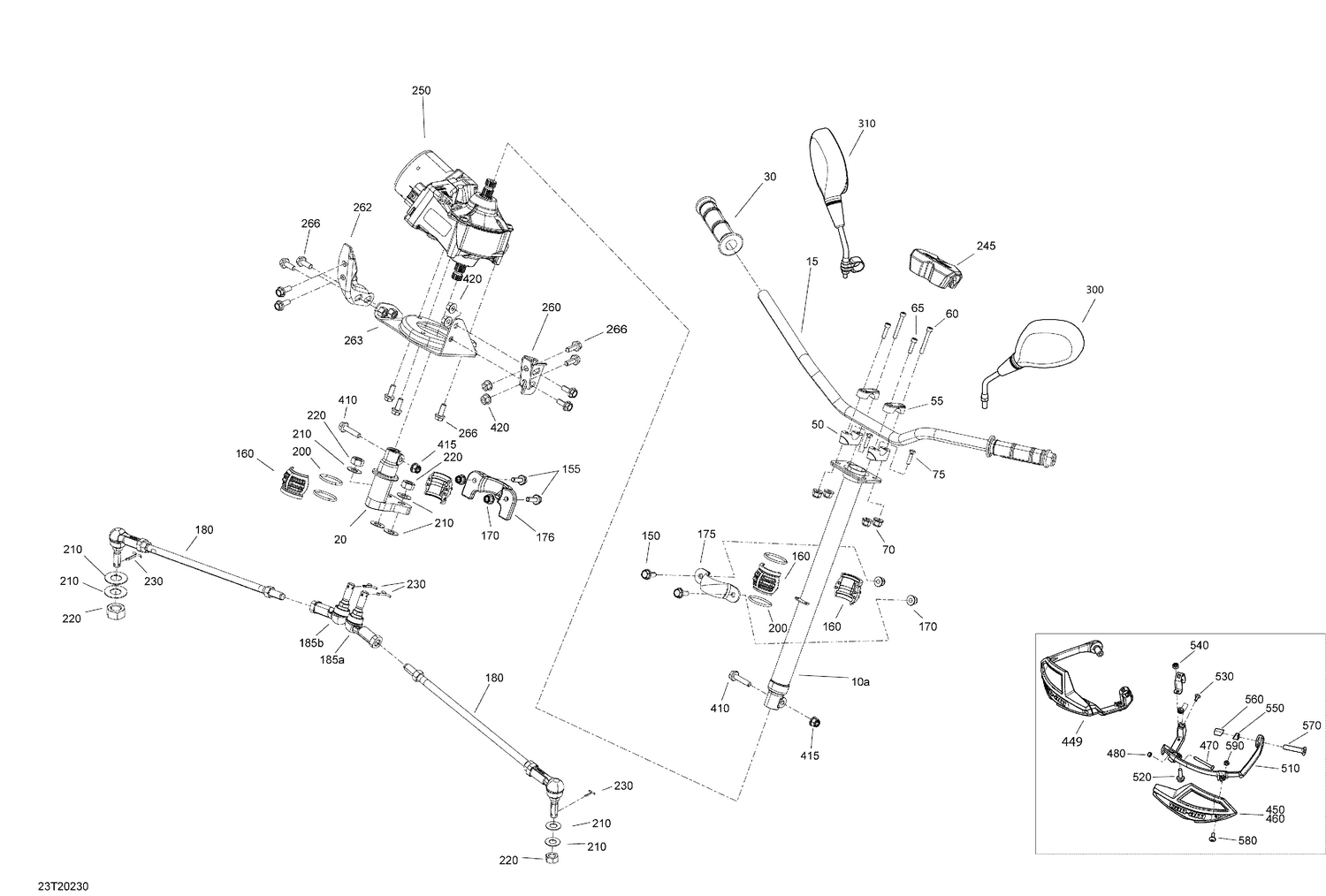

07- Steering
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 703501108 | Main Tube Kit This part replaces 709401750. |
| 15 | 709400513 | Aluminum Handle Bar |
| 20 | 703501160 | Pitman Arm This part replaces 709401748. |
| 30 | 709400493 | Handle Grip |
| 50 | 709402750 | Lower Mounting Clamp This part replaces 709400497. |
| 55 | 709400496 | Support |
| 60 | 205086060 | Socket Head Screw M8 X 60 |
| 65 | 205083060 | Socket Screw M8 X 30 |
| 70 | 233281416 | Hex. Elastic Flange Nut M8 |
| 75 | 207183060 | Hex. Screw M8 X 30 |
| 150 | 207682044 | Hex. Flange Screw M8 X 20 |
| 155 | 207682544 | Hex. Flange Screw M8 X 25 |
| 160 | 709400783 | Spherical Half Bushing |
| 170 | 233281414 | Hex. Flange Elastic Nut M8 |
| 175 | 709400827 | Upper Column Attachment |
| 176 | 709401428 | Column Attachment |
| 185a | 709402303 | LH Ball Joint |
| 185b | 709402302 | RH Ball Joint |
| 200 | 293300068 | O-Ring |
| 210 | 706200281 | Hardened Washer This part replaces 250200086. |
| 220 | 250100099 | Nut M12 |
| 230 | 211400013 | Cotter Pin |
| 245 | 709402327 | Steering Cover |
| 250 | 709403187 | Power Steering Ass'y This part replaces 709402230. |
| 260 | 709402192 | Power Steering Module Bracket |
| 262 | 709402185 | RH Bracket |
| 263 | 709401743 | Power Steering Support |
| 266 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 300 | 709400406 | LH Mirror |
| 310 | 709400407 | RH Mirror |
| 410 | 250000986 | Hex. Flange Screw M8 X 35 |
| 415 | 233281416 | Hex. Elastic Flange Nut M8 |
| 420 | 233081416 | Hex. Flange Nut M8 |
| 450 | 709401667 | Red, RH Deflector |
| 460 | 709401668 | Red, LH Deflector |
| 470 | 205444056 | Socket Head Screw M4 X 40 |
| 480 | 232541414 | Elastic Stop Nut M4 |
| 510 | 715001378 | Air Deflector Support Kit |
| 520 | 207662044 | Hex. Flange Screw M6 X 20 |
| 530 | 250000717 | Torx Head Screw M6 X 16 |
| 540 | 232561600 | Hex. Elastic Stop Nut M6 |
| 550 | 709400161 | Small Bracket |
| 560 | 709400162 | Large Bracket |
| 570 | 205384034 | Socket Head Screw |
| 580 | 250000742 | Torx Screw M5 X 14 |
