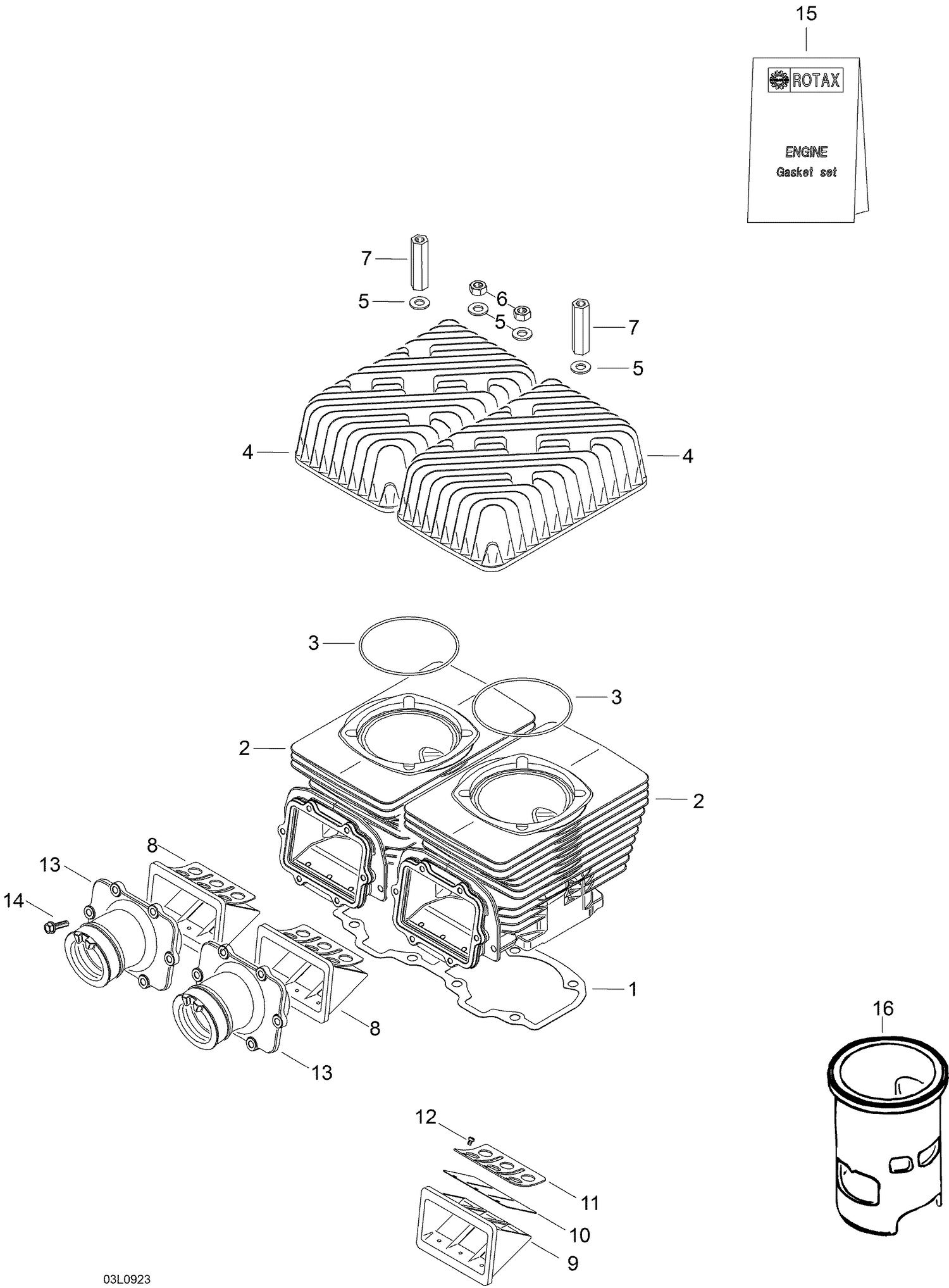

01- Cylinder And Cylinder Head
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420950910 | Gasket, cyl.bottom 0.3 |
| 1 | 420950911 | Gasket, cyl.bottom 0.4 |
| 1 | 420950912 | Gasket, cyl.bottom 0.6 |
| 2 | 420923974 | Cylindre *Cylinder This part replaces 420923978. |
| 3 | 293300026 | O-Ring This part replaces 420850540. |
| 4 | 420923595 | HEAD CYLINDER - Call your local BRP dealership |
| 5 | 234081410 | Flat Washer 8 mm This part replaces 20004. |
| 6 | 232081414 | Hex. Nut M8 This part replaces 420242206. |
| 7 | 420842204 | Distance Nut M8 x 47 This part replaces 420842203. |
| 8 | 420924519 | Reed Valve Support Ass'y |
| 10 | 420924532 | Reed Pedal |
| 11 | 420924539 | Reed Pedal Stop |
| 12 | 420941215 | Screw M3 x 5 |
| 13 | 420867300 | Carburetor socket |
| 14 | 420941928 | Taptite Screw M5 X 16 This part replaces 420941925. |
| 15 | 420889911 | Gasket set |
