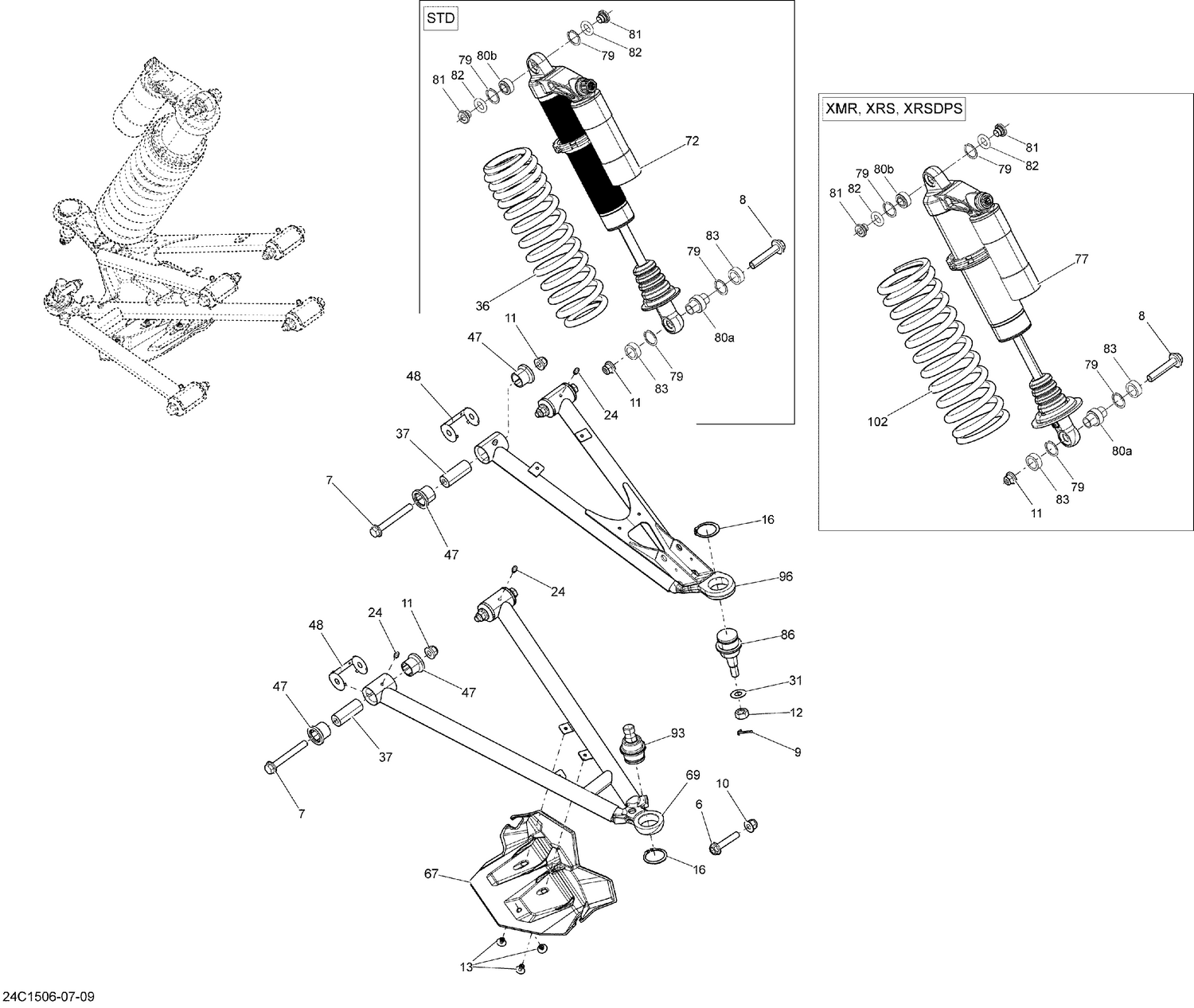

07- Front Suspension _24C1509
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 207605044 | Hex. Flange Screw M10 X 50 |
| 7 | 207608046 | Hex Flange Screw M10 X 80 |
| 8 | 207626046 | Hex. Flange Screw M12 X 60 |
| 9 | 211400017 | Cotter Pin |
| 10 | 233201414 | Hex. Flange Elastic Nut M10 |
| 11 | 233201436 | Hex. Flange Elastic Nut M10 |
| 12 | 250100099 | Nut M12 |
| 13 | 293150104 | Pop Rivet 3/16" |
| 16 | 293370035 | Circlip |
| 24 | 408200700 | Grease Fitting |
| 31 | 706200281 | Hardened Washer This part replaces 250200086. |
| 37 | 706201590 | Sleeve |
| 47 | 706204409 | Suspension Arm Bushing This part replaces 706201659. |
| 48 | 706201660 | Wear Plate |
| 67 | 706202808 | LH Joint Protector This part replaces 706201829. |
| 67 | 706202809 | RH Joint Protector This part replaces 706201830. |
| 69 | 706201861 | LH Front Lower Arm |
| 69 | 706201862 | RH Front Lower Arm |
| 79 | 715900252 | Retaining Ring |
| 80a | 715900330 | Spherical Bearing |
| 80b | 715900266 | Spherical Bearing |
| 81 | 715900267 | Internal Bushing |
| 82 | 715900268 | O-Ring Bushing |
| 83 | 715900331 | Protector |
| 86 | 706202044 | Ball Joint |
| 93 | 706202045 | Ball Joint |
