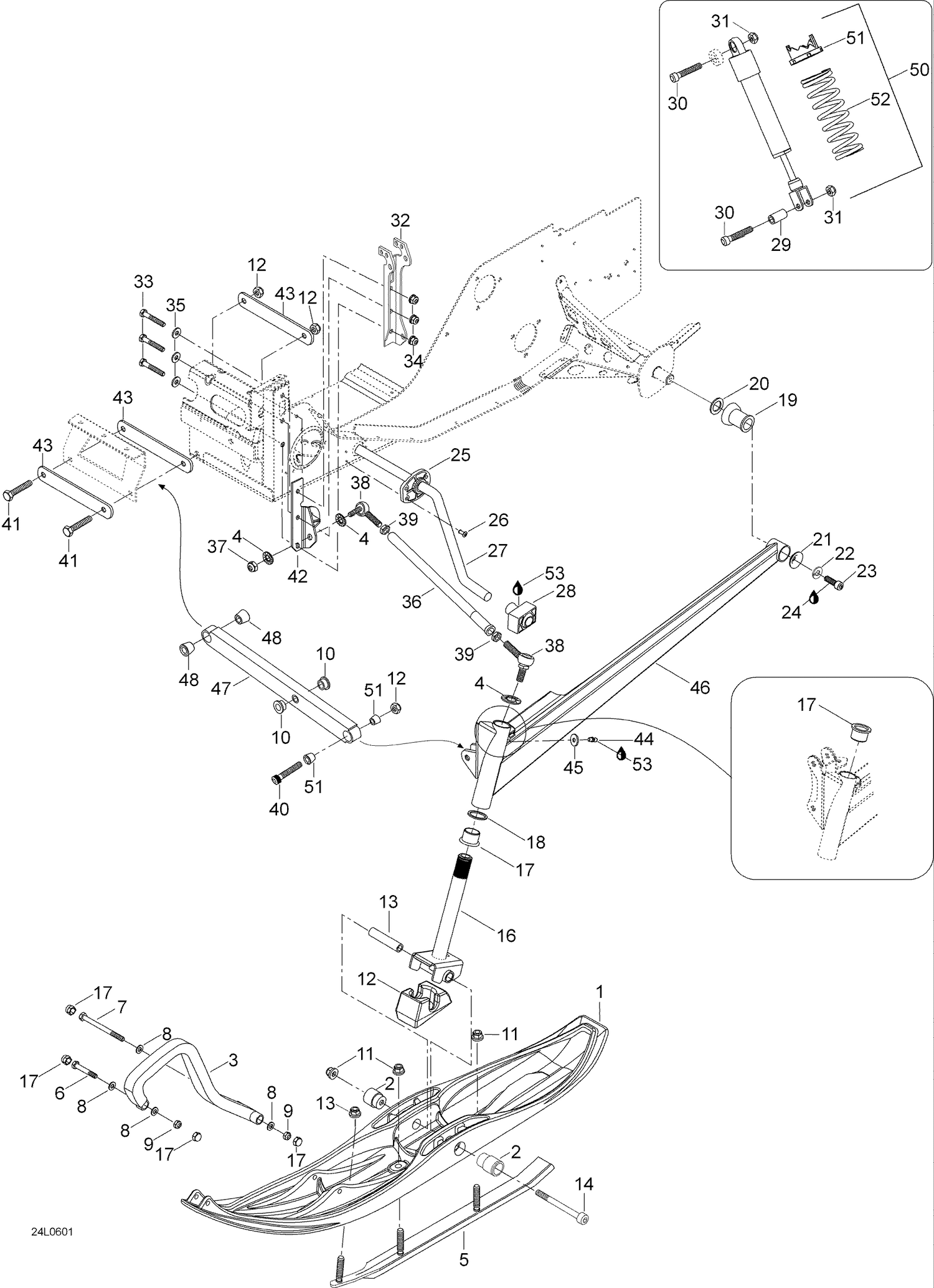

| Ref | Part Number | Description |
|---|
| 2 |
605348392 |
Sleeve |
| 3 |
505070963 |
Handle |
| 4 |
20074 |
Lock washer M12 |
| 6 |
40009 |
Hex. screw M8 x 50 |
| 7 |
207089044 |
Hex. Screw M8 x 90 This part replaces 40264. |
| 8 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 9 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 10 |
31029 |
Cushion |
| 11 |
33074 |
NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership |
| 12 |
33012 |
Elastic stop nut M10 |
| 12 |
605348458 |
SKI STOPPER - Call your local BRP dealership |
| 13 |
20028 |
Washer |
| 13 |
506133300 |
Sleeve |
| 14 |
40225 |
Socket head screw M10 x 140 |
| 15 |
28056 |
Cover |
| 16 |
605248927 |
Ski leg |
| 17 |
505070003 |
Cushion |
| 18 |
505070004 |
WASHER - Call your local BRP dealership |
| 19 |
570062200 |
DAMPER - Call your local BRP dealership |
| 20 |
503146700 |
WASHER - Call your local BRP dealership |
| 21 |
506079600 |
CUP - Call your local BRP dealership |
| 22 |
20014 |
Lock washer A8 |
| 23 |
40289 |
Socket head screw M8 x 25 |
| 24 |
293800060 |
Loctite 243, 10ml |
| 25 |
505070191 |
Bushing |
| 26 |
36009 |
Rivet |
| 27 |
505070774 |
Stablisator |
| 28 |
505070117 |
BALL JOINT BLOCK - Call your local BRP dealership |
| 29 |
5441433 |
Sleeve |
| 30 |
40837 |
Allen Screw M10x55 DIN 912 (1=10pcs) - Call your local BRP dealership |
| 31 |
33012 |
Elastic stop nut M10 |
| 32 |
5245488 |
L.H. Shock bracket |
| 32 |
5246395 |
R.H. Shock bracket |
| 33 |
40010 |
Hex. screw M8 x 55 |
| 34 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 35 |
234081410 |
Flat Washer 8 mm This part replaces 20104. |
| 36 |
605348813 |
Upper arm |
| 37 |
33087 |
Nut M12 |
| 38 |
31092 |
Ball joint |
| 39 |
33048 |
Nut M12 |
| 40 |
40858 |
Socket head screw M10 x 50 |
| 41 |
40814 |
Hex. screw M10 x 110 |
| 42 |
5348063 |
L.H. Bnracket |
| 42 |
5348064 |
R.H. Bnracket |
| 43 |
5346112 |
Support plate |
| 44 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 45 |
20003 |
Washer A6,4 |
| 46 |
605248969 |
L.H. Swing arm (Full Moon) |
| 46 |
605248970 |
R.H. Swing arm (Full Moon) |
| 47 |
605253258 |
Lower arm ass'y (Full Moon) |
| 48 |
5447769 |
Sleeve |
| 49 |
5447770 |
Sleeve |
| 51 |
505073625 |
Adjustment Cam This part replaces 503183700. |
| 52 |
Not |
Available As Spare Part - Spring |
