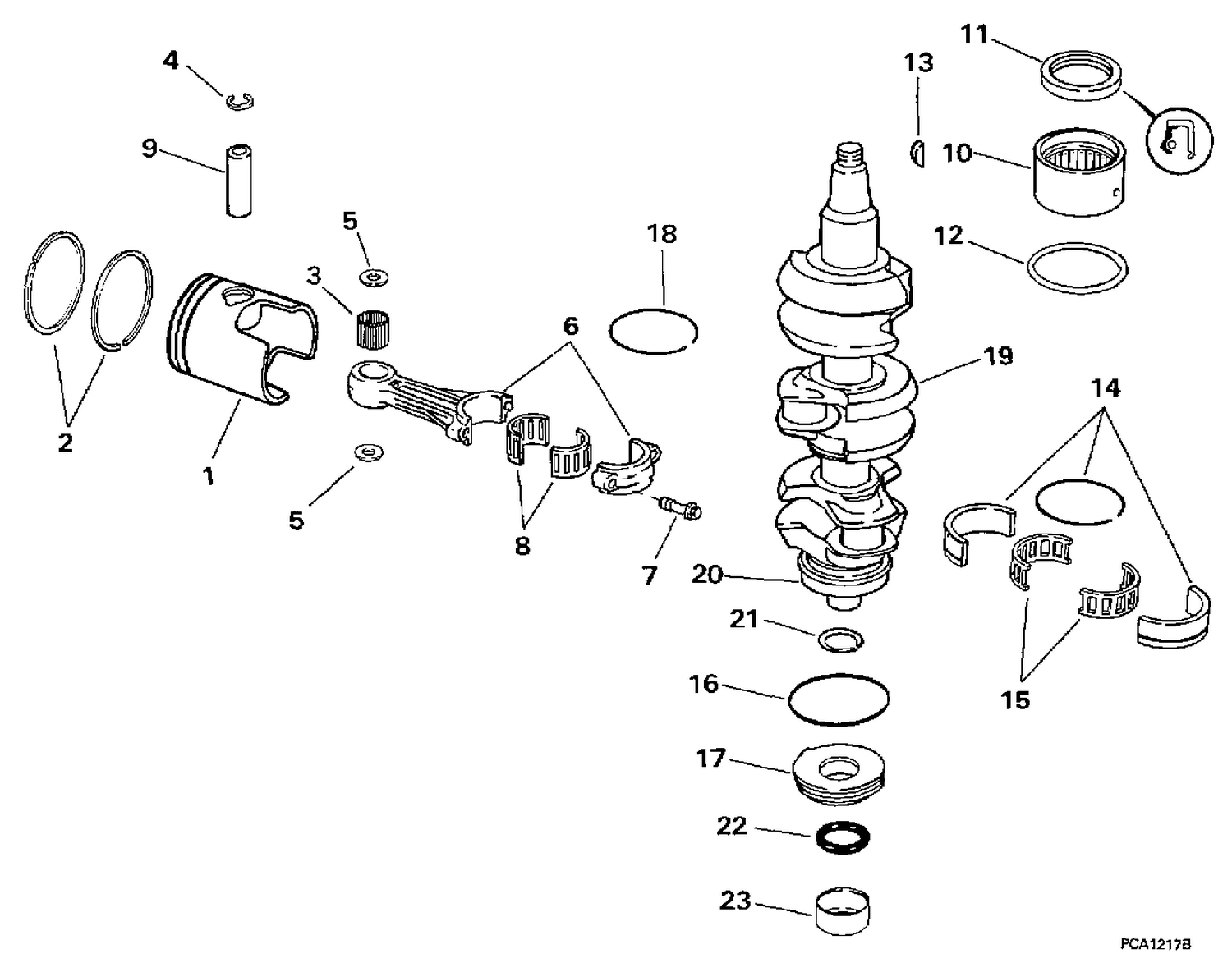

CRANKSHAFT & PISTON — Parts Catalog

Ref	Part Number	Description
1	0437219	PISTON, Std.
1	5006686	Pstn&Rng Kit This part replaces 0435896.
1	5006699	Pstn&Rng Kit This part replaces 0437281.
1	5006700	Pstn&Rng Kit This part replaces 0437282.
2	0437283	RING SET, Std.
2	0437284	RING SET, Std.
2	0437285	RING SET, 0.030 in. O.S.
2	0437286	RING SET, 0.030 in. O.S.
3	0437850	BEARING, Wrist pin
4	0339159	RETAINING RING
5	0339162	WASHER
6	0435895	CONNECTING ROD ASSY.
8	0437088	BEARING Assy This part replaces 0388344.
9	0339164	WRIST PIN
9	0341430	WRIST PIN
10	0436816	ROLLER BEARING ASSY.
12	0313754	O RING
14	0310433	SLEEVE
15	0378252	BEARING ASSY., Needle
16	0308876	O RING CRANKCASE HEAD LOWER
17	0437057	CRANKCASE HEAD & SEAL ASSY.
18	0339165	SEAL RING
19	0437034	CRANKSHAFT ASSY. This part replaces 0339156.
0437034	0437034	CRANKSHAFT ASSY.
