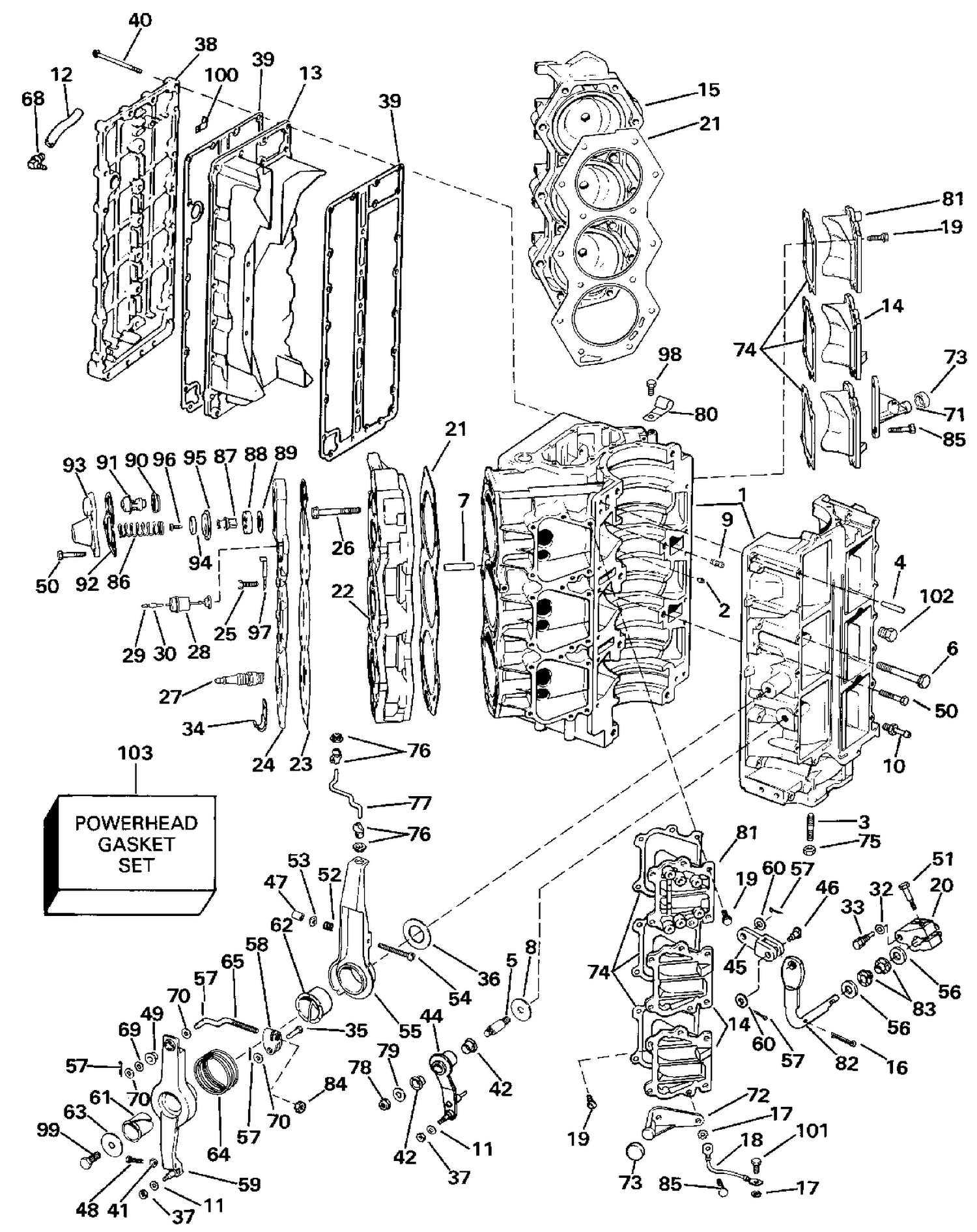

| Ref | Part Number | Description |
|---|
| 1 |
0432153 |
CYLINDER & C'CASE ASSY. |
| 6 |
0316988 |
SCREW, Lockplate cyl. to c'case |
| 7 |
0322411 |
DEFLECTOR, Water pass |
| 9 |
0394884 |
CHECK VALVE |
| 11 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 12 |
0913435 |
HOSE, Elbow to drain tee This part replaces 0327720. |
| 13 |
0326308 |
ECH.COVER,Inner,150,175,200 |
| 14 |
0328004 |
COVER, Bypass |
| 15 |
0332544 |
CYL. HEAD, Port |
| 16 |
0330145 |
COTTER PIN |
| 18 |
0376349 |
FIL, masse |
| 19 |
0306049 |
SCREW |
| 20 |
0326644 |
LEVER, Shift rod |
| 21 |
0335360 |
GASKET, Cylinder head |
| 22 |
0332545 |
CYL. HEAD, Stbd. |
| 23 |
0321028 |
GASKET Cover |
| 24 |
0320840 |
COVER, Cylinder head |
| 25 |
0300646 |
VIS, ancrage |
| 26 |
0307267 |
SCREW |
| 27 |
0386941 |
SPARK PLUB,Champion L77J4 |
| 27 |
0432424 |
SPARK PLUG , QL16V |
| 27 |
0502180 |
SPARK PLUG, Champion QL77JC4 This part replaces 0387633. |
| 28 |
0583789 |
TEMPERATURE SWITCH, Port |
| 28 |
0584592 |
SWITCH, Temperature This part replaces 0583441. |
| 33 |
0327590 |
PIN, Shift lever |
| 34 |
0330151 |
CLAMP, Harness to oil tank boss |
| 36 |
0320813 |
WASHER, Spark advance lever |
| 38 |
0329494 |
COVER, Exhaust outer |
| 39 |
0321182 |
GASKET, Inner cover |
| 40 |
0335224 |
SCREW, Exh. manf to cyl., 1 1/4 in. (32mm) |
| 44 |
0395483 |
SHIFT ARM ASSY |
| 45 |
0324363 |
LINK, Shift arm |
| 46 |
0340134 |
PIN, Shift lever This part replaces 0324364. |
| 47 |
0318660 |
BUMPER, Screw, throttle stop |
| 48 |
0328693 |
SCREW, Bracket to bracket |
| 50 |
0306778 |
ECREW,Exhaust cover,1-3/8"long |
| 51 |
0328695 |
CLAMP, Engine cable |
| 54 |
0328699 |
LEVER, Spark control |
| 55 |
0320836 |
LEVER, Spark advance |
| 56 |
0202026 |
LOCK WASHER, Stud |
| 58 |
0397018 |
YOKE & THUMBWHEEL |
| 59 |
0389821 |
LEVER, Throttle |
| 61 |
0320811 |
BUSHING |
| 62 |
0320812 |
BUSHING, Spark lever |
| 64 |
0321270 |
SPRING, Throttle lever |
| 65 |
0330117 |
LINK, Throttle lever |
| 69 |
0328734 |
BOW WASHER |
| 71 |
0319217 |
PIN,Clevis to shift lock |
| 72 |
0319218 |
SUPPORT BNRACE,Stbd. |
| 73 |
0313581 |
BUMBER, Mount screw |
| 74 |
0307133 |
GASKET |
| 76 |
0395448 |
BALL & SOCKET ASSY |
| 77 |
0330116 |
ROD, Spark advance |
| 80 |
0310441 |
CLAMP, CPS lead |
| 81 |
0328005 |
COVER, Bypass cover |
| 82 |
0324362 |
SHIFT LEVER |
| 83 |
0331839 |
BUSHING |
| 86 |
0317245 |
SPRING, Control valve |
| 87 |
0321027 |
VALVE, Preasure realese |
| 88 |
0320880 |
SEAT |
| 89 |
0321222 |
CUP, Valve seat |
| 90 |
0310058 |
GASKET, Thermostat |
| 91 |
5005440 |
THERMOSTAT This part replaces 0393659. |
| 92 |
0321184 |
GASHKET,Thermostatcover |
| 93 |
0321013 |
COVER, Thermostat |
| 94 |
0321220 |
RETAINER, Spring valve |
| 95 |
0321221 |
SEAL, Pressure release |
| 100 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 101 |
0303398 |
VIS, support |
