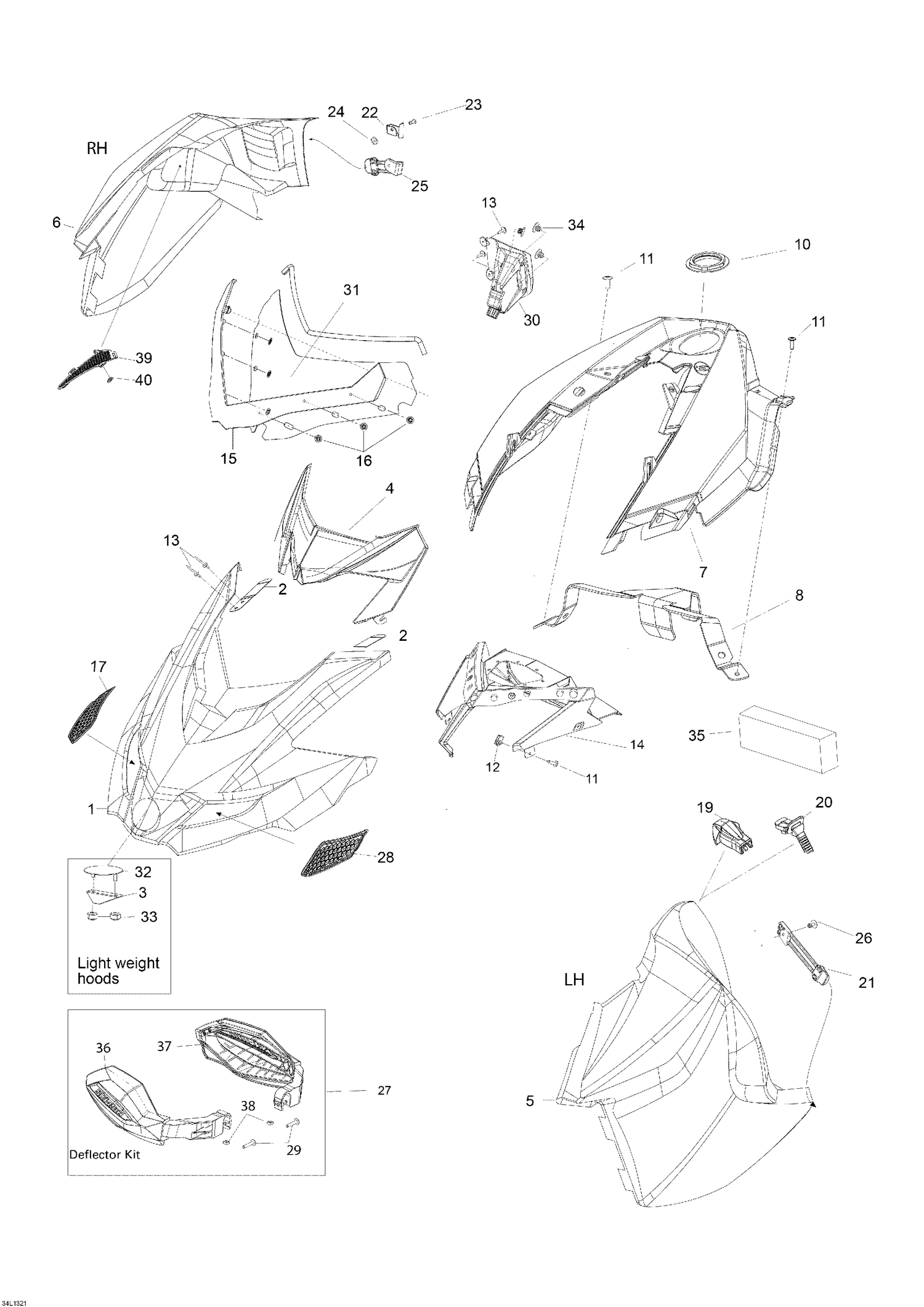

09- Hood
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517303962 | Hood/console Black |
| 4 | 517303979 | Headlamp cover |
| 5 | 517304990 | L.H.Side panel Black |
| 6 | 517304981 | R.H.Side panel Black |
| 7 | 517304129 | Console White |
| 8 | 517305363 | Console support black |
| 9 | 36037 | Rivet black 4.8x16 |
| 10 | 517304518 | Console Nut |
| 11 | 250000722 | Torx Truss Screw M6 x 20 This part replaces 250000128. |
| 12 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250100113. |
| 13 | 293150170 | Rivet pop 5/32 |
| 14 | 517304699 | INDICATOR SUPPORT - Call your local BRP dealership |
| 15 | 860200089 | Support kit |
| 16 | 517303756 | Grommet |
| 17 | 517304141 | Grill RH |
| 18 | 517302785 | Clip |
| 19 | 860200239 | End piece kit, incl. 19-20 |
| 20 | Not | Available As Spare Part - Latch panel |
| 21 | 517303612 | Latch panel |
| 22 | 517304221 | Latch support |
| 23 | 207652044 | Hex. Flange Screw M5 X 20 |
| 24 | 233251434 | Flanged Elastic Nut M5 This part replaces 233251414. |
| 25 | 517303808 | Latch panel |
| 26 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 27 | 517305053 | Deflector pack |
| 28 | 517304008 | Grill LH |
| 29 | 250000501 | PHILLIPS SCREW M6 X 35 - Call your local BRP dealership |
| 30 | 517304322 | Console rewind handle |
| 31 | 517304293 | Wind shield |
| 34 | 275500241 | Cap plug |
| 35 | 517304186 | Support foam air intake silencer |
| 36 | Not | Available As Spare Part - RH deflector |
| 37 | Not | Available As Spare Part - LH deflector |
| 38 | 250000498 | SQUARE NUT M6 - Call your local BRP dealership |
| 39 | 517304007 | Grill |
