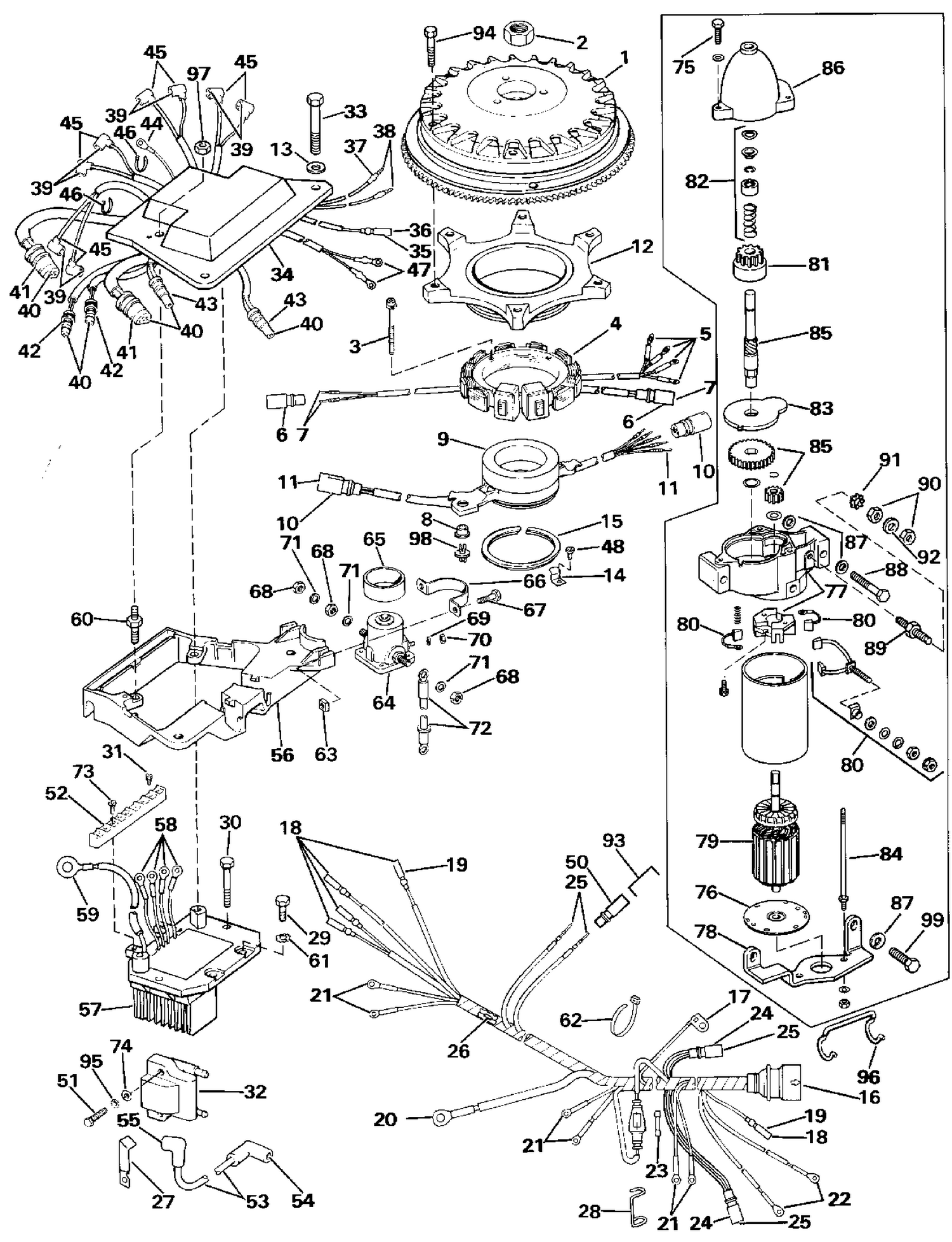

| Ref | Part Number | Description |
|---|
| 1 |
0583969 |
FLYWHEEL ASSY. |
| 4 |
0583415 |
STATOR ASSY. |
| 8 |
0329168 |
SOCKET |
| 9 |
0583531 |
TIMBER BASE & SENSOR ASSY. |
| 15 |
0313666 |
RET., Distributor base 1 |
| 16 |
0583283 |
ENGINE CABLE ASSY. |
| 29 |
0304027 |
VIS, arbre de commande de sens de marche |
| 32 |
0582508 |
COIL ASSY |
| 33 |
0331980 |
SCREW, Bracket, port |
| 34 |
0584035 |
POWER PACK This part replaces 0583471. |
| 43 |
0123404 |
CONNECTOR, 1-socket plug |
| 50 |
0123405 |
CONNECTOR |
| 52 |
0512656 |
TERMINAL BLOCK |
| 53 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 56 |
0583997 |
ELECTRICAL BRACKET ASSY. This part replaces 0583418. |
| 60 |
0334109 |
BOLT, Double end |
| 62 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 65 |
0311217 |
MANCHON, solénoïde |
| 66 |
0330112 |
BRIDE, solénoïde vers démarreur |
| 73 |
0306644 |
VIS, capteur de papillon |
| 88 |
0331644 |
SCREW, Starter, mounting |
| 89 |
0331540 |
BOLT, Double end |
| 93 |
0512742 |
DISPOSITIF DE RETENUE, connecteur |
| 94 |
0325115 |
SCREW, Oil tank/EMM mount |
| 98 |
0330368 |
BUSHING, Timber base |
| 0396235 |
0586890 |
STARTER MOTOR ASSEMBLY This part replaces 0396235. |
