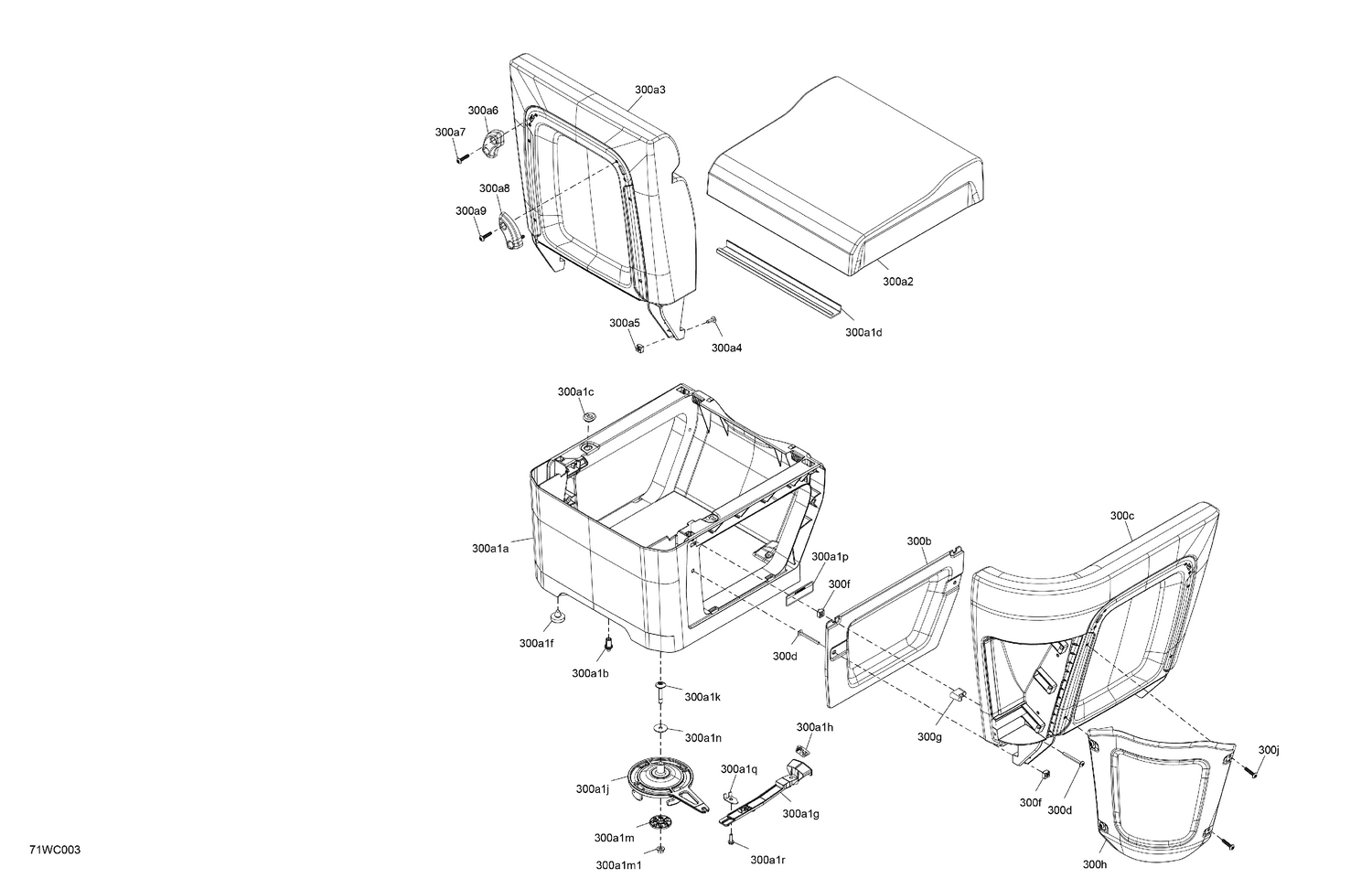

07- FURNITURE - Seat Corner Backrest (RH)
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 300a1a | 295101127 | Seat Support Service Kit |
| 300a1b | 269003492 | Locator Rod |
| 300a1c | 705000321 | Oval Washer |
| 300a1d | 269003483 | Gutter |
| 300a1f | 269003502 | Rubber Stopper |
| 300a1g | 295101126 | Lever Latch Service Kit |
| 300a1h | 219905993 | Lever Decal |
| 300a1j | 269003311 | Seat Anchorage |
| 300a1k | 250001154 | Torx Head M8 X 50 S.GRIP |
| 300a1m1 | 233181600 | Hex. Flange Nut M8 |
| 300a1n | 250200130 | Flat Washer 8 mm |
| 300a1p | 219905883 | Seat Anchorage Warning Label |
| 300a1q | 269003887 | Guide |
| 300a1r | 243162060 | Hex. Flange Screw M6.81 x 20 |
| 300a4 | 250000234 | Torx Screw M6 X 20, Stainless |
| 300a5 | 269502497 | M6 Nut Housing |
| 300a6 | 269003903 | LH Rubber Stopper |
| 300a7 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 |
| 300a8 | 269003904 | RH Rubber Stopper |
| 300a9 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 |
| 300b | 295101047 | RH Panel Seat Switch Kit |
| 300d | 250000631 | Torx Screw M6 X 60 |
| 300f | 269502497 | M6 Nut Housing |
| 300g | 293900146 | Spacer |
| 300h | 269003511 | RH Exterior Support |
