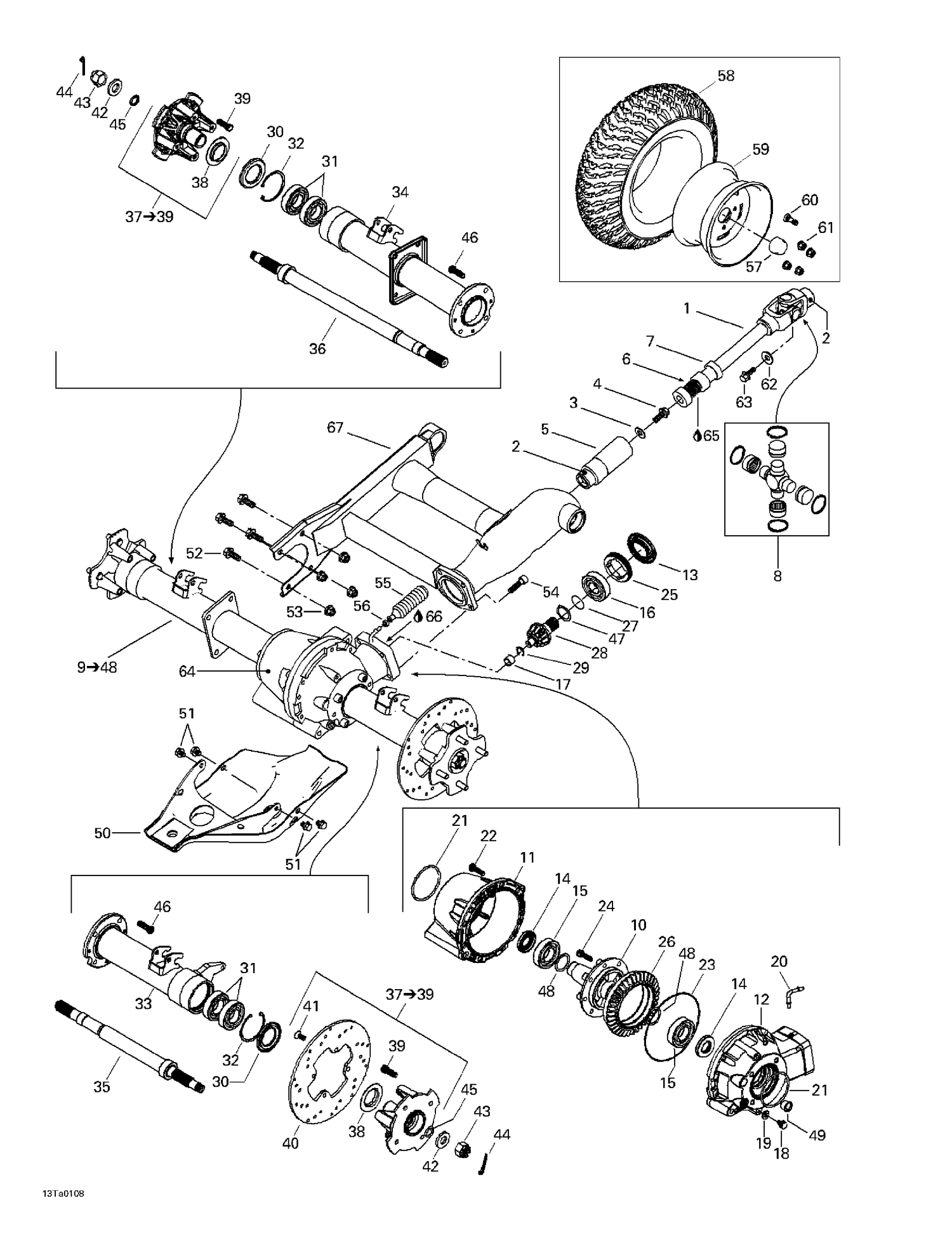

| Ref | Part Number | Description |
|---|
| 2 |
705400036 |
Wear Ring |
| 3 |
250200014 |
Flat Washer M10 |
| 4 |
250000060 |
Flange Screw M10 X 16, Scotch Grip |
| 5 |
Not |
Available As Spare Part - Coupler |
| 6 |
Not |
Available As Spare Part - Spring |
| 7 |
705500097 |
Sealing Ring |
| 8 |
715900325 |
Ens. Croix*U-Joint Cross Kit This part replaces 703500002. |
| 10 |
705500159 |
Propulsion Spool |
| 11 |
705500013 |
Differential Cap |
| 12 |
705500014 |
Differential Carrier |
| 13 |
705401481 |
Oil Seal This part replaces 705400027. |
| 14 |
705401618 |
Gasket This part replaces 705500081. |
| 15 |
705401606 |
Ball Bearing This part replaces 705500080. |
| 16 |
705500074 |
Ball Bearing |
| 17 |
705500077 |
Needle Bearing |
| 19 |
705500299 |
SEAL RING - Call your local BRP dealership |
| 20 |
705500124 |
Vent Valve |
| 21 |
705500078 |
O RING - Call your local BRP dealership |
| 22 |
705500088 |
SCREW - Call your local BRP dealership |
| 23 |
705500091 |
Seal |
| 24 |
705500090 |
RING GEAR SCREW - Call your local BRP dealership |
| 25 |
705401603 |
Nut This part replaces 705500161. |
| 26 |
705500087 |
Gear (36 Teeth) |
| 27 |
705500073 |
O-Ring |
| 28 |
705500076 |
GEAR (10 TEETH) - Call your local BRP dealership |
| 29 |
705500102 |
Retaining Ring |
| 30 |
705500099 |
OIL SEAL - Call your local BRP dealership |
| 31 |
705500084 |
Ball Bearing |
| 32 |
705500085 |
Retaining Ring |
| 34 |
705500209 |
LH Axle Tube |
| 35 |
705500049 |
RH Axle Ass'y |
| 36 |
705500050 |
LH Axle Ass'y |
| 38 |
705500100 |
WEAR RING - Call your local BRP dealership |
| 39 |
250300055 |
Wheel Stud M10 X 1.25 This part replaces 211300020. |
| 41 |
235381646 |
Torx Screw M8 X 16, Scotch Grip |
| 43 |
232291413 |
Hex. Flange Castellated Nut M18 |
| 44 |
250400036 |
Cotter Pin This part replaces 211400012. |
| 45 |
293300052 |
O-Ring |
| 46 |
705500149 |
Axle Tube Screw |
| 47 |
Not |
Available As Spare Part - Pinion Gear Shim |
| 48 |
Not |
Available As Spare Part - Differential Shim |
| 49 |
705500143 |
Filler/Level Plug |
| 50 |
705000019 |
Rear Differential Protector |
| 51 |
207581046 |
Flange Screw M8 x 10, Scotch Grip |
| 52 |
207602544 |
Hex. Flange Screw M10 X 25 |
| 53 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 54 |
205502544 |
Socket Head Screw M10 x 25 (Scotch Grip) |
| 55 |
705400552 |
Rubber Bellow This part replaces 705400066. |
| 56 |
293750001 |
Tie Wrap 94 mm |
| 57 |
705400012 |
WHEEL CAP - Call your local BRP dealership |
| 59 |
705500239 |
Rear Rim, Grey |
| 60 |
705400193 |
Rim Valve With Cap This part replaces 705400053. |
| 61 |
705400013 |
HEX. NUT - Call your local BRP dealership |
| 62 |
211200041 |
Washer |
| 63 |
207581646 |
Hex. Flange Screw M8 X 16, Scotch Grip |
| 64 |
779221 |
JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML This part replaces 293600011. |
| 65 |
293550062 |
Graisse *Grease This part replaces 293550019. |
| 66 |
219701421 |
Instant Gasket This part replaces 293800053. |
| 705401604 |
Shim |
This part replaces 703500050. 705401604 |
| 705502061 |
Pinion |
Gear Shim 1.67 mm This part replaces 703500049. 705502061 |
